Page 1: Washing Machine

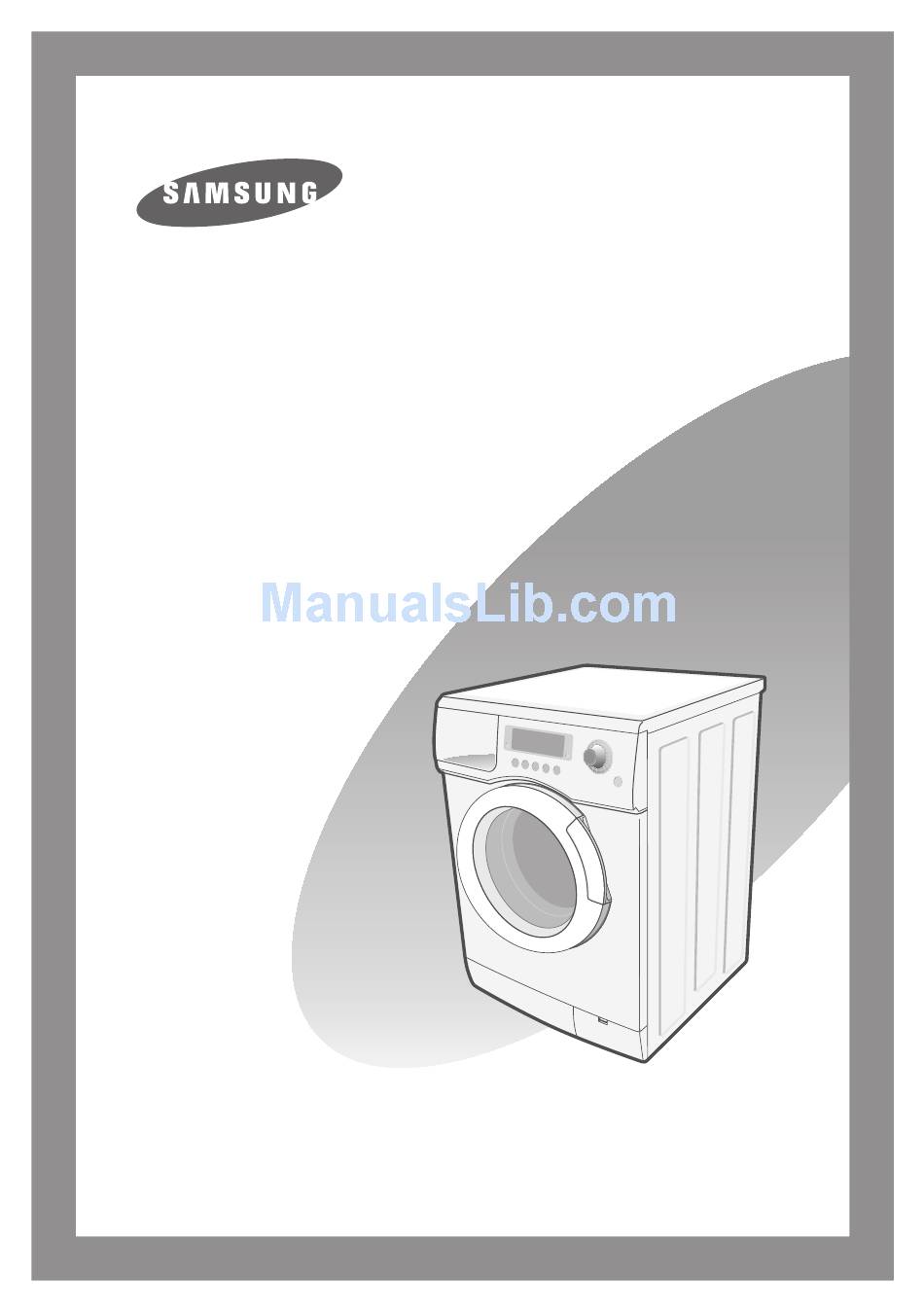

Washing Machine Owner’s Instructions WD-B1265(V/S/C) Register your product at www.samsung.com/global/register Code No.: DC68-01997F_EN WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:19... - Page 2 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:19...
-
Page 3: Delay Start
28minute Quick Wash program can be the solution to your busy life. Now you can wash your favorite clothes in only 28minutes, guaranteed! Delicates & Wool Program Special care can be determined by the appropriate temperature, the gentle wash action and the appropriate amount of water. SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:20... -
Page 4: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner’s Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine’s features and enjoy this appliance for many years to come. -
Page 5: Table Of Contents
Table of Contents Safety Precautions ......... . . inside cover Installing the Washing Machine. -
Page 6: Installing The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. Overview of the washing machine... -
Page 7: Selecting A Location
2. Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt. 3. Fill the holes with the supplied plastic covers. 4. Keep the shipping bolts for future use. SAMSUNG Washing Machine Owner’s Instructions A-2 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:23... -
Page 8: Connecting The Water Supply Hose
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and tighten it by hand. 3. Use a Y-piece if you only want to use cold water. A-3 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10... -
Page 9: Connecting The Water Supply Hose (Option
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. SAMSUNG Washing Machine Owner’s Instructions A-4 WD-B1265-01997F_EN.indd... -
Page 10: Washing A Load Of Laundry
4. Add prewash detergent into compartment ( ) (if you desire). Caution : Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked. B-1 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:28... -
Page 11: Overview Of The Control Panel
Displayed hours means the time of finished washing-cycle. Dry selection button Press the button repeatedly to cycle through the available dry selections. (120min. 90min. 60min. 30min.) SAMSUNG Washing Machine Owner’s Instructions B-2 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:30... - Page 12 Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off. B-3 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10...
-
Page 13: Washing Clothes Using Fuzzy Logic
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash programme, the machine will set the correct temperature, washing time, and washing speed. -
Page 14: Washing Clothes Manually
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. 4. To cancel Delay Start, press the (On/Off) button, then turn the washing machine on again. B-5 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:33... -
Page 15: Washing Tips And Hints
If you do not know how hard your water is, ask your water authority. Notice : Keep detergents and additives in a safe, dry place out of the reach of children. SAMSUNG Washing Machine Owner’s Instructions B-6 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:33... -
Page 16: Maintaining The Washing Machine
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and non- abrasive household detergents. 2. Use a soft cloth to dry the surfaces. 3. Do not pour water on the washing machine. C-1 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:34... -
Page 17: Cleaning The Detergent Drawer And Recess
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. SAMSUNG Washing Machine Owner’s Instructions C-2 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:36... -
Page 18: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. Option Option 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. C-3 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:37... -
Page 19: Troubleshooting
1. Try to remedy the problem (See “Troubleshooting” on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. SAMSUNG Washing Machine Owner’s Instructions D-1 WD-B1265-01997F_EN.indd 2006-05-10... -
Page 20: Appendix
Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. • Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. E-1 SAMSUNG Washing Machine Owner’s Instructions WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:45... -
Page 21: Protecting The Environment
2100 W PUMPING 220 V 34 W 83 l (STANDARD COURSE) WATER VOLUME SPIN REVOLUTION MODEL WD-B1265 1200 PACKAGE Wt PAPER 2.5 kg PLASTIC 1.0 kg LOAD WASH 6.0 kg 3.0 kg SAMSUNG Washing Machine Owner’s Instructions E-2 WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:45... - Page 22 MEMO WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:45...
- Page 23 MEMO WD-B1265-01997F_EN.indd 2006-05-10 ｿﾀﾀ・10:38:45...
- Page 24 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Customer Service Center 11/F, Phase 2, MTL warehouse Building, Berth One, Kwai Chung, N.T., Hong Kong 2862 6001 www.samsung.com/hk...
