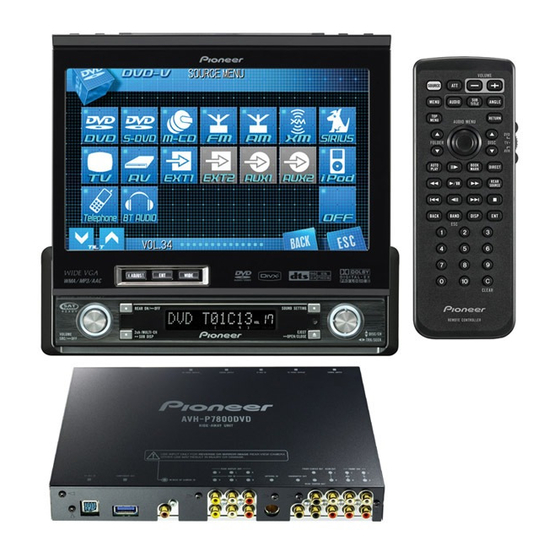

- Page 1 AVH-P7800DVD This product conforms to new cord colors. чÌÌÓ ÛÒÚÓÈÒÚ‚Ó ÒÓÓÚ‚ÂÚÒÚ‚ÛÂÚ ÌÓ‚˚Ï Ú·ӂ‡ÌËflÏ Í ˆ‚ÂÚÛ ÔÓ‚Ó‰Ó‚.
-
Page 2: Table Of Contents
Connecting the system ........3 CAUTION: Connecting the power cord (1) ......5 • PIONEER does not recommend that Connecting the power cord (2) ......7 you install or service your display your- Connecting the power cord (3) ......9 self. - Page 3 Note: • When an external power amp is being used with this system, be sure not to connect the blue/white • This unit is for vehicles with a 12-volt battery and lead to the amp’s power terminal. Likewise, do negative grounding. Before installing it in a recre- not connect the blue/white lead to the power ter- ational vehicle, truck, or bus, check the battery minal of the auto-antenna.
-
Page 4: Connecting The System
Connecting the Units Connecting the system AVD-W1100V White (sold separately) 26-pin cable (e.g. CD-CP300) Hide-away unit (sold separately) (supplied with AVD-W1100V) 30-pin cable (supplied Pink with AVD-W1100V ) Antenna jack Blue Blue Antenna cable (supplied) IP-BUS input AV-BUS input (Blue) (Blue) Violet Blue... - Page 5 Microphone/auxiliary input jack (3.5 ø) (MIC/AUX IN) Before installing this unit to your vehicle, pull out the jack to the place where you 1.5 m can easily plug in/out the microphone or stereo mini plug cable. Use a stereo mini This product 15 cm plug cable to connect with auxiliary...
-
Page 6: Connecting The Power Cord (1)
Connecting the Units Connecting the power cord (1) If this unit is used with more than a 6-ch speaker system, be sure to connect the yellow lead to the battery terminal directly. When not using this terminal, do not remove the cap. Yellow After making all other connections to this unit, connect this to the positive + terminal of the battery. - Page 7 Power supply box (supplied) This product Yellow/black If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections. Fuse (7.5 A) Fuse resistor Orange/white To lighting switch terminal.
-
Page 8: Connecting The Power Cord (2)
Connecting the Units Connecting the power cord (2) WARNING: • If this unit is used with more than a 6-ch speaker system, be sure to connect the yellow lead to the battery terminal directly. (See the section “Connecting the power cord (1)”). Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. - Page 9 Power supply box (supplied) This product Yellow/black If you use an equipment with Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections. Fuse (7.5 A) Fuse resistor Orange/white To lighting switch terminal.
-
Page 10: Connecting The Power Cord (3)
Connecting the Units Connecting the power cord (3) If this unit is used with more than a 6-ch speaker system, be sure to connect the yellow lead to the battery terminal directly. Hide-away unit (supplied) Connect when the audio settings of this product are used in the network mode. - Page 11 See the section “When Violet/white connecting with a rear view camera”. WARNING LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
-
Page 12: When Connecting To Separately Sold Power Amp
Connecting the Units When connecting to separately sold power amp Hide-away unit (supplied) See the section “Connecting the power cord (1)”. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). System remote control Connect when the audio settings of this product are used in the network mode. - Page 13 Power amp (sold separately) Power amp (sold separately) Power amp (sold separately) RCA cables (sold separately) Power amp (sold separately) Power amp (sold separately) Power amp (sold separately) Front center speaker Left Right Tweeter Tweeter Front middle range Front middle range speaker speaker Rear speaker...
-
Page 14: When Connecting With A Rear View Camera
Connecting the Units When connecting with a rear view camera When using this product with a rear view camera, automatic switching to video from a rear view camera when the gear shift is moved to REVERSE (R) position is possible. WARNING: •... - Page 15 Rear view camera To video output Hide-away unit (supplied) See the section “Connecting the power cord (3)”. CAUTION Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise screen image may appear reversed. Extension lead (supplied) 15 cm...
-
Page 16: When Connecting The External Video Component And The Display
Connecting the Units When connecting the external video component and the display To video input Display with RCA input jacks Hide-away unit To audio inputs RCA cables (sold separately) Video input 2 Video input 1 To audio outputs External video component (sold separately) To video output... - Page 17 About video input 1 Depending on the unit connected to this unit, video image may be distorted. In this case, eliminate the distortion by adjusting the video image selecting switch on the underneath of the hide-away unit to the appropriate position. Use a thin standard-tip screwdriver to adjust the video image selecting switch on the underneath of the hide-away unit.
-
Page 18: Installation
Installation Note: • Do not mount the hide-away unit near the heater outlet, where it would be affected by heat, or near • Before making a final installation of the unit, the doors, where rainwater might splash onto it. temporarily connect the wiring to confirm that the •... -
Page 19: Din Front/Rear-Mount
Mounting with Velcro Tape DIN Front-mount Thoroughly wipe off the surface before affixing the velcro tape. Installation with the rubber bush Hide-away unit 1. Decide the position of the side Velcro tape brackets. (Fig. 15) (large) (hard) When installing in a shallow space, Velcro tape change the position of side brackets. -
Page 20: Din Rear-Mount
Installation 2. Install the unit into the dash- DIN Rear-mount board. (Fig. 16) After inserting the holder into the Installation using the screw holes on dashboard, then select the appropriate the side of the unit tabs according to the thickness of the dashboard material and bend them. -
Page 21: Fixing The Front Panel
• When installing in a shallow space, Fixing the front panel use the following screw holes. In If you do not operate the removing and this case, stick conceal tape on parts attaching the front panel function, use that protrude from the dashboard. the supplied fixing screws to fix the Conceal tape front panel to this unit. - Page 22 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 23 ≠ ≠...
- Page 24 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚ IP BUS STAND ALONE...
- Page 25 ø...
- Page 26 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 28 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 29 ≠ ≠ ≠ ≠...
- Page 30 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚ ã‚˚È è‡‚˚È ≠ ≠ ≠ ≠...
- Page 31 åÂÚÓ‰ ÒÓ‰ËÌÂÌËfl...
- Page 32 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 34 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 35 åÂÚÓ‰ ÒÓ‰ËÌÂÌËfl...
- Page 36 èÓ‰Íβ˜ÂÌË ÛÒÚÓÈÒÚ‚...
- Page 38 ì ÒÚ‡Ìӂ͇ ° 30° × ×...
- Page 39 × × ×...
- Page 40 ì ÒÚ‡Ìӂ͇ × × × × × Fig. 17...
-
