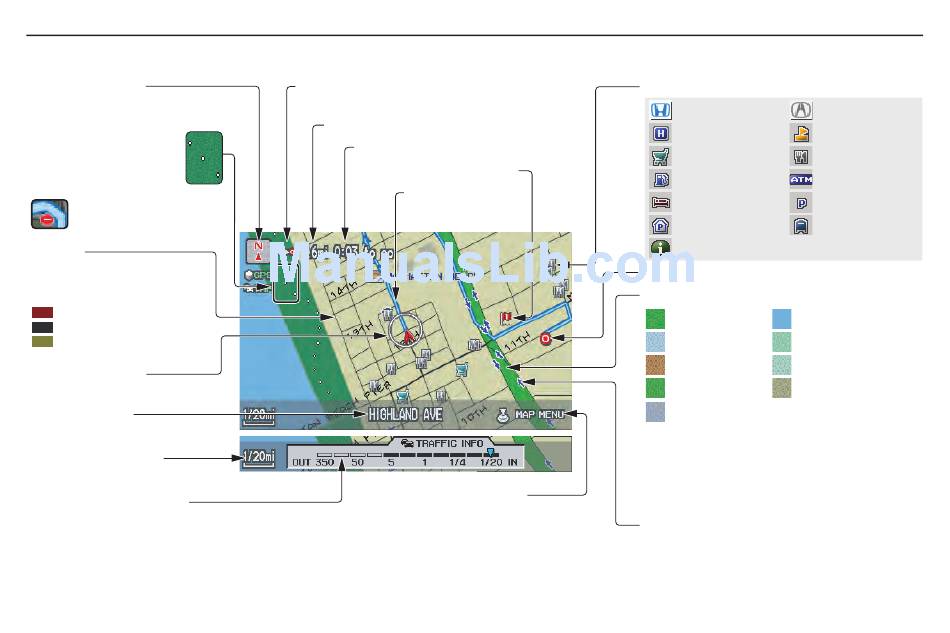

Map Screen Legend

Map Orientation
(see page 63)
Breadcrumbs
(see Off-road Tracking
on page 70)
No Entry Icon
Streets
(see Map Overview on
page 6, or Unverified Area
Routing on page 102)
Interstates or Freeways
Verified Streets
Unverified Streets
Vehicle Position
(see page 71)
Current Street
(see page 71)
Current Map Scale
(see page 62)
Map Scale Adjustment
(Mile or km per half-inch appears
only when you zoom in or out by
rotating the Interface Dial knob.)
(see page 62)
Direction of Destination (when en route)
(see page 59)
Distance to Destination (see page 59)
Time to Destination (see page 59)
Waypoint (see page 75)
Blue Line
Calculated route
(see page 55)
Map Menu (see page 59)
(Push in on the Interface Dial to view.)
NOTE:
See Map Legend on the INFO screen (Other) for further explanation (see page 90).
2010 RL
Driving to Your Destination
Landmark Icon - Generic (see page 64)
Honda Dealer Acura Dealer
Hospital School
Grocery Store Restaurant
Gas Station ATM
Hotel/Lodging Parking Lot
Parking Garage Post Office
Freeway Exit Information
Destination Icon (see page 63)
Map Features
: Park : Water Area
: Hospital : Cemetery
: Shopping Mall : University
: Golf Course : Indian Reservation
: Airport/Stadium/Business
NOTE:
If you move the Interface Dial over an area (map
features shown above), the name is displayed on
the screen.
One-Way Traffic Icon
(1/20 mile scale only) (see page 64)
