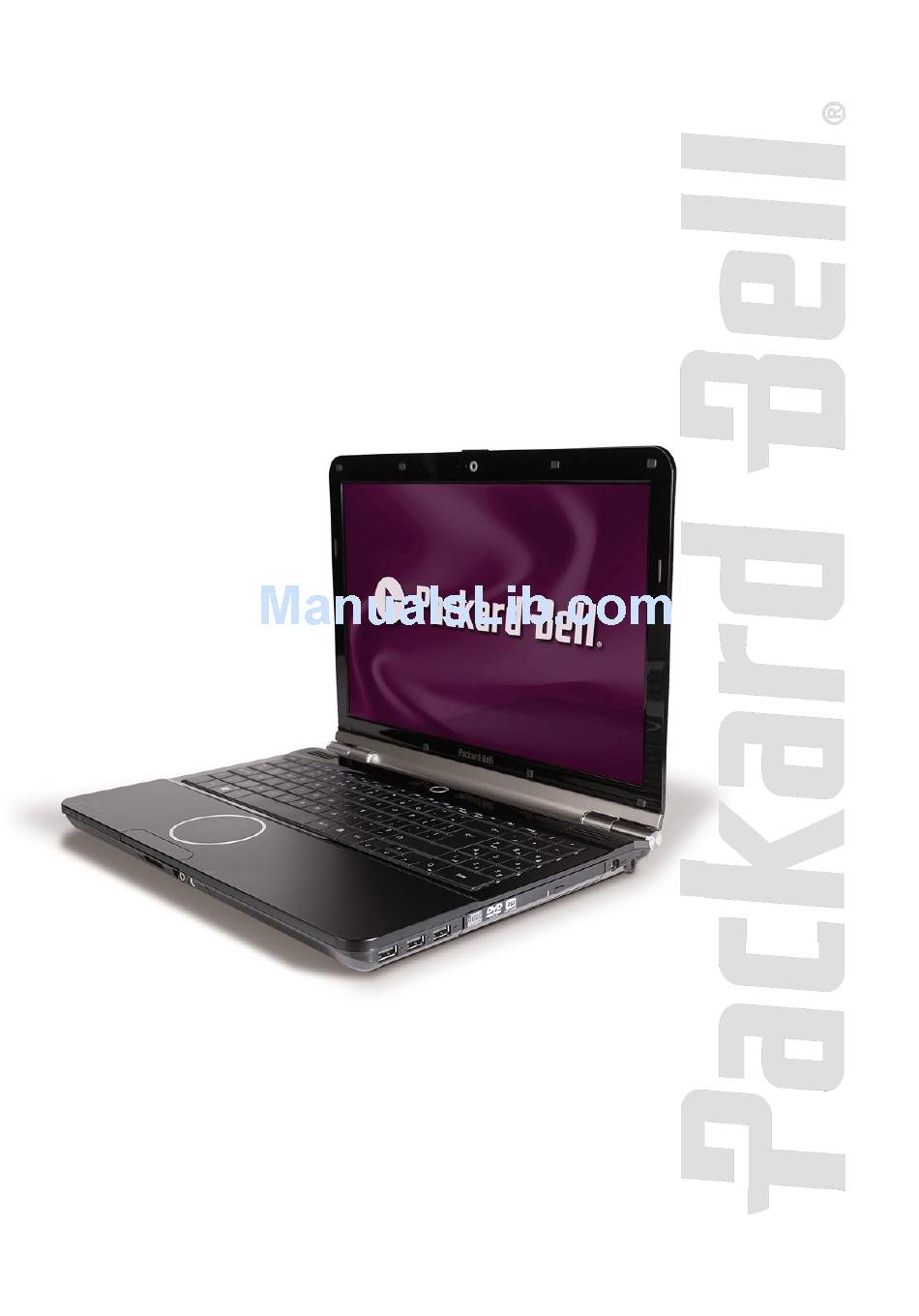

- Page 1 Packard Bell EasyNote ML Disassembly Manual...
-
Page 2: Table Of Contents
Wireless LAN Adapter........................7 Keyboard............................7 Top Cover ............................. 8 LCD Panel........................... 10 Main Board..........................11 Video Board ..........................12 Heat Sink............................. 13 CPU ............................. 13 LCD Assembly ..........................14 Webcam ............................15 Notice ............................16 Packard Bell EasyNote ML Disassembly Manual... -
Page 3: About This Guide
ML. The instructions are illustrated where necessary with images of the part that is being disassembled. Packard Bell B.V. reserves the right to make changes to the EasyNote ML without notice. For More Information For more information about the Packard Bell EasyNote ML, visit Packard Bell‘ s support web site at www.packardbell.com. -
Page 4: Hazardous Voltage
Always return a Non avviare il sistema senza aver prima defective power supply to the dealer. messo a posto il coperchio. Packard Bell EasyNote ML Disassembly Manual... -
Page 5: Battery
To remove the optical disk drive, first remove the battery (see Battery on page 4) and then perform the following steps: 1. Remove the two screws securing the optical disk drive. Fig. 2 Location of the screws securing the optical disk drive. Packard Bell EasyNote ML Disassembly Manual... -
Page 6: Hard Disk Drives
3. Remove the two screws that keep each hard disk in place. 4. Pull the plastic tab on the hard disk drives to disconnect them. Fig. 5 Disconnecting and removing the hard disk drives. Packard Bell EasyNote ML Disassembly Manual... -
Page 7: Memory
Remove the two screws securing the memory compartment cover. Fig. 6 Removing memory compartment cover. Take away the memory compartment cover. Release the clip on each side securing the memory module; the module will eject upwards. Fig. 7 Removing the memory module. Packard Bell EasyNote ML Disassembly Manual... -
Page 8: Wireless Lan Adapter
2. Release the keyboard by prying it up along the top side of the keyboard. There are five tabs holding the keyboard in place on the front, particularly at the following keys: <Esc>, <F5>, <F10>, <Pause> and <*>. Packard Bell EasyNote ML Disassembly Manual... -
Page 9: Top Cover
To remove the top cover, remove the battery (see Battery on page 4) and the keyboard (see Keyboard on page 7), then perform the following steps: 1. Remove the two screws under the keyboard. Packard Bell EasyNote ML Disassembly Manual... - Page 10 Twelve screws on the back panel b. One screw underneath the WLAN panel c. Two screws below the left HDD panel d. Two screws below the right HDD panel e. Five screws inside the battery compartment Packard Bell EasyNote ML Disassembly Manual...
-
Page 11: Lcd Panel
2. Turn the notebook over and remove the screw holding the ground wire. 3. Disconnect the LCD cable from the main board. 4. Remove the two screws in each the top left- and right-hand corner. 5. Take away the LCD panel. Packard Bell EasyNote ML Disassembly Manual... -
Page 12: Main Board
1. Disconnect the five cables from the main board. Fig. 16 Location of left speaker bracket screw. 2. Remove the seven screws holding the main board. 3. Lift the main board out of the bottom base. Packard Bell EasyNote ML Disassembly Manual... -
Page 13: Video Board
1. Flip over the main board so you can see the back, which contains the heat sink. 2. Remove the five screws from the elevated video board. Fig. 18 Location of the video board. 3. Carefully lift the video board out of its socket. Packard Bell EasyNote ML Disassembly Manual... -
Page 14: Heat Sink
To remove the CPU, first remove the heat sink (see above), and then follow these steps: 1. Turn the screw in the CPU into the unlock position to release the CPU. Fig. 20 Unlocking the CPU. Packard Bell EasyNote ML Disassembly Manual... -
Page 15: Lcd Assembly
Fig. 21 The rubber stoppers and screws. 2. Remove the front cover from the LCD panel. 3. Remove the screws holding the LCD panel to the brackets. Fig. 22 The brackets screws. 4. Take away the LCD panel. Packard Bell EasyNote ML Disassembly Manual... -
Page 16: Webcam
To remove the webcam, first remove the top cover of the LCD panel (see above) and then perform the following steps: 1. Remove both screws and lift out the webcam. Fig. 23 The webcam screws. Packard Bell EasyNote ML Disassembly Manual... -
Page 17: Notice
FROM THE FURNISHING PERFORMANCE OR USE OF THIS MATERIAL Copyright © 2008 Packard Bell B.V. All rights reserved. Packard Bell is a trademark of Packard Bell B.V. The names of actual companies and products mentioned herein may be trademarks and/or registered trademarks of their respective owners.
