10/100/1000Mbps
Gigabit Ethernet Web-manageable Switch
GSW-1402S
User's Manual

Advertisement

Table of Contents
loading

Summary of Contents for Planet GSW-1402S

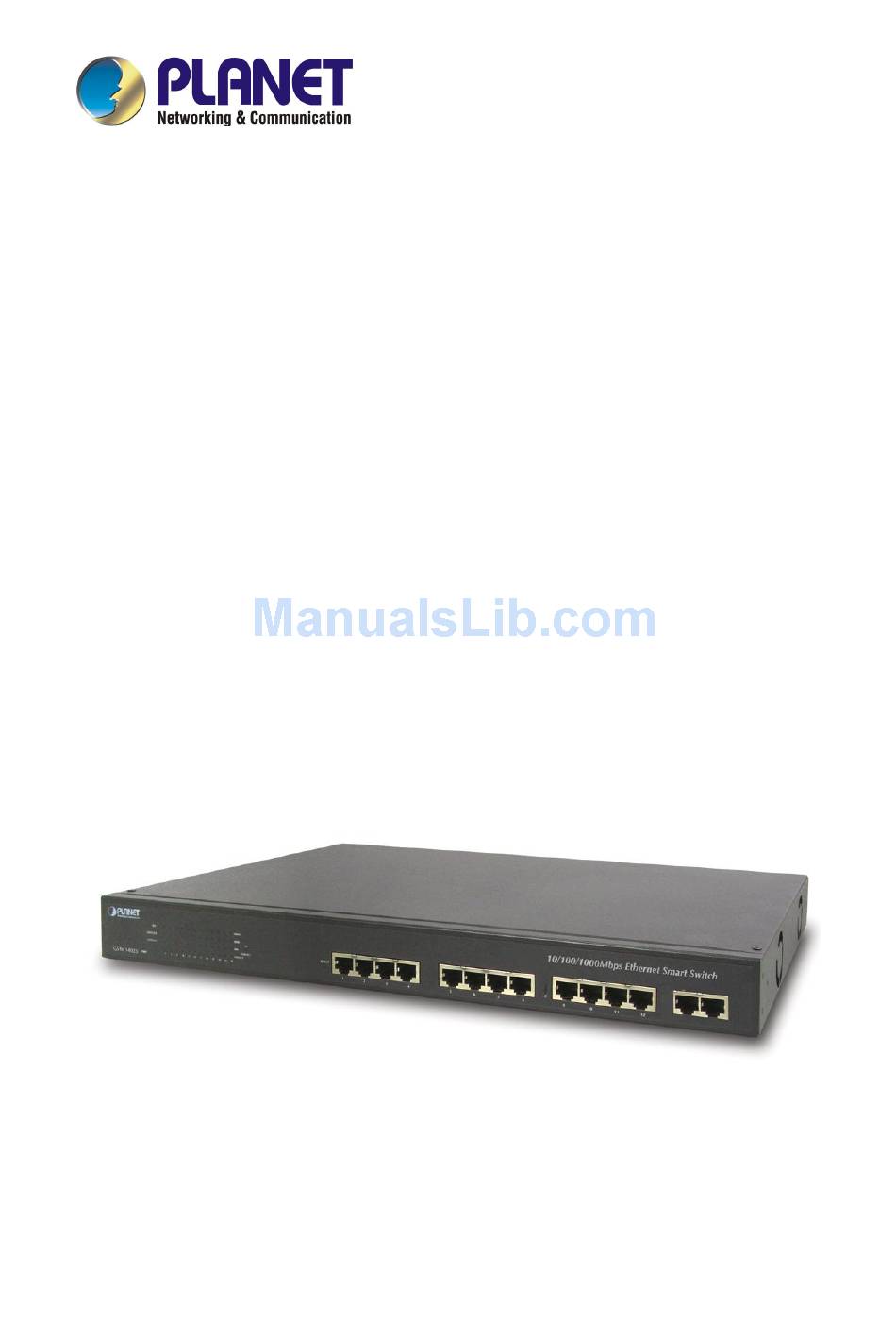

  • Page 1 10/100/1000Mbps Gigabit Ethernet Web-manageable Switch GSW-1402S User’s Manual...
  • Page 2 Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ................1 1.1 C .........................1 HECKLIST 1.2 A ......................1 BOUT THE WITCH 1.3 F ..........................1 EATURES 1.4 S .........................2 PECIFICATIONS CHAPTER 2 HARDWARE DESCRIPTION ...........3 2.1 F ........................3 RONT ANEL 2.2 R ........................3 ANEL 2.3 H ....................4 ARDWARE NSTALLATION...
  • Page 4 APPENDIX A ........................25 ‘ A.1 S RJ-45 P ..................25 WITCH SSIGNMENTS A.2 10/100M , 10/100B -TX ..................25 A.3 RJ-45 ..................25 CABLE PIN ASSIGNMENT...
  • Page 5: Chapter 1 Introduction

    1.2 About the Switch The Switch GSW-1402S is designed to allow simultaneous transmission of multiple packets via an internal high-speed data channel. This means that it can partition a network more efficiently than bridges or routers in most environments.
  • Page 6: Specifications

    1.4 Specifications Network Ports 14 x RJ-45, 10/100/1000Base-T Module slot 2, 1000Base-T, 1000Base-SX, 1000Base-LX Modes Half and Full Duplex, auto-negotiation Console 1 x RS-232 DB-9 MAC address table size Switch Fabric 32Gbps Transmission method Store-and-forward Packet Buffer Memory 272K Bytes 14880pps @ 10Mbps Packet Forwarding Rate (64bytes) 148800pps @ 100Mbps...
  • Page 7: Chapter 2 Hardware Description

    There are three choices of different modules for expansion: 10/100/1000Base-T module 1000Base-SX module 1000Base-LX module 2.1 Front Panel The unit front panel provides a simple interface monitoring the switching hub. GSW-1402S Switch front panel LED indicators Green On: power on STATUS Green...
  • Page 8: Hardware Installation

    Power Notice: 1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or network downtime. 2.
  • Page 9: Chapter 3 Console Management

    Power on the switch; launch the new terminal program you just set up. Press “Enter” key, then login screen appears as below. Enter username and password to access GSW-1402S. There are three system default accounts for different privilege levels: “root”: root can do any configuration includes changing password and enable/disable management capability via console port.
  • Page 10: System Menu

    Main menu appears after successfully login GSW-1402S. To enter any of the submenus, simply type the number after the command prompt. 3.3 System Menu System Menu contains two options: System Information and System Configuration. 3.3.1 System Information This screen shows the hardware and software versions of current switch. Moreover, information of System Contact, Device Name, and Device Location also included.
  • Page 11: Management Setup Menu

    Select 1 from Management Features Control Menu. To enable or disable web management interface, select 1. To view or modify HTTP access port number, select 2. Please note that GSW-1402S only accept port number 80 or range from 1000 to 2000.
  • Page 12: Device Control Menu

    Select 2 from Management Features Control Menu. To enable Telnet management interface, select 1. To disable Telnet management interface, select 2. 3.5 Device Control Menu Device Control Menu sets up the advanced functions of GSW-1402S include Port Configuration, VLAN, Port Mirror, and Port Aggregation (Trunk). 3.5.1 Port Status/Configuration From Device Control Menu, select 1 to enter Port Status/Configuration Menu.
  • Page 13 3.5.2 IEEE802.1Q TAG VLAN The VLAN is a group of ports that may spread around the network but communicate as though they belong to one subnet. By using IEEE802.1Q compliant VLAN, all ports can be reorganized into separate broadcast domains for security reasons and reduce bandwidth occupation instead of using routers to divide whole network into subnets.
  • Page 14 3.5.2.3 VLAN Static Entry Created To create a static VLAN entry, select 3 from IEEE802.1Q TAG VLAN Menu. Enter the information of VLAN ID, name, and active status. 3.5.2.4 VLAN Static Entry Modification To modify an existing VLAN entry, select 4 from IEEE802.1Q TAG VLAN Menu. Choose which VLAN you want to modify, then change the data in next screen.
  • Page 15 3.5.4 Port Aggregation Port Aggregation (Port Trunk) is used to increase the bandwidth of a switch-to-switch connection. GSW-1402S provides 8 port aggregation groups. Each group consists of 2 ports and creates bandwidth up to 4Gbps at full duplex mode. To enter Port Aggregation Menu, select 4 from Device Control Menu.
  • Page 16: User Authentication Menu

    5 from Main Menu. 3.7.1 System Restart This menu enables user to restart GSW-1402S without unplug the power cord. There are two options: Cold Start, and Warm Start. Cold Start means switch will reboot with fully Power On Self Test (POST). The system is completely checked but spends much time.
  • Page 17 To reset switch to factory default parameters, select 2 from System Utility Menu. Then click “Y” to reset GSW-1402S. 3.7.3 Timeout Interval Setup The default timeout value of GSW-1402S is 5 minutes. To modify timeout value, select 3 from System Utility Menu, then enter the desired timeout value. 3.7.4 TFTP Download This menu enables user to download firmware via TFTP and upgrade GSW-1402S.
  • Page 18 3.7.5.1 Modify Ping Count To modify the ping packet count number, select 1 from Ping Menu. Type a count number from 1 to 1000, or type 0 for an infinite packet count. 3.7.5.2 Modify Ping Target IP To change the IP address of target host, select 2 from Ping Menu. Then enter the correct IP.
  • Page 19: Web Management

    4. Web management 4.1 Start A Web Browser Session The Web Interface of GSW-1402S is coded by Java Applet and running on the JavaTM Virtual Machine (JVM) version 1.3.1 platform. You should configure the management station with an IP address and subnet mask compatible with GSW-1402S for accessing it.
  • Page 20 Click “Yes” to save settings, click “No” to abort. 4.2.2 Default This button enables user to reset GSW-1402S to factory default values. After click on it, the following message box appears. Click “Yes” to reset switch, click “No” to abort.
  • Page 21: System Page

    “Start”. The result will be shown in the same message box after test is done. 4.2.5 Telnet This button enables user to access GSW-1402S through Telnet. After click on it, the Hyper Terminal program will be activated and directly connect to switch.
  • Page 22: Port Page

    4.4 Port Page There are two tabs in Port Page: Information and Configuration. Please refer to section 3.5.1 Port Status/Configuration for further details. 4.4.1 Port Setting Duplicate This function enables user to duplicate similar settings to all ports at one time. Please follow the procedures below: 1.
  • Page 23: Vlan Page

    4.5 VLAN Page There are three tabs in VLAN Page: VLAN Static List, VLAN Static Table, and VLAN Port Configuration. Please refer to section 3.5.2 IEEE802.1Q TAG VLAN for further details. 4.5.1 VLAN Static List This screen is used to Add / Remove / Modify VLAN and up to 255 groups. The VLAN groups that have been created are all listed here.
  • Page 24 4.5.2.1 To Add Member Ports 1. Click the “VLAN ID” combo box and select a VLAN you want new ports to join in. 2. Select ports (press Shift/Ctrl key for selecting multi ports) in the “Non-Member” column. 3. Click <<Add button to join selected ports in. 4.5.2.2 To Remove Member Ports 1.
  • Page 25: Port Aggregation Page

    4.6 Port Aggregation Page This screen includes information of Aggregation Group number, Member Port, and Group Status. Please refer to section 3.5.4 Port Aggregation for further details. To activate an Aggregation Group, check the box of Aggregation Group in the Status Enable column and press “Apply”.
  • Page 26: Switch Operation

    5 Switch Operation 5.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This information comes from the learning process of Switch.
  • Page 27 the modes and speeds at the second of both device is connected and capable of, Both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode. 1000Base-T and 1000Base-SX can only connect in Full-duplex mode.
  • Page 28: Troubleshooting

    6. Troubleshooting This chapter contains information to help you solve problems. If GSW-1402S is not functioning properly, make sure the Switch was set up according to instructions in this manual. The Link LED is not lit Solution: Check the cable connection and remove duplex mode of the Giga Switch...
  • Page 29 APPENDIX A A.1 Switch’s RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
