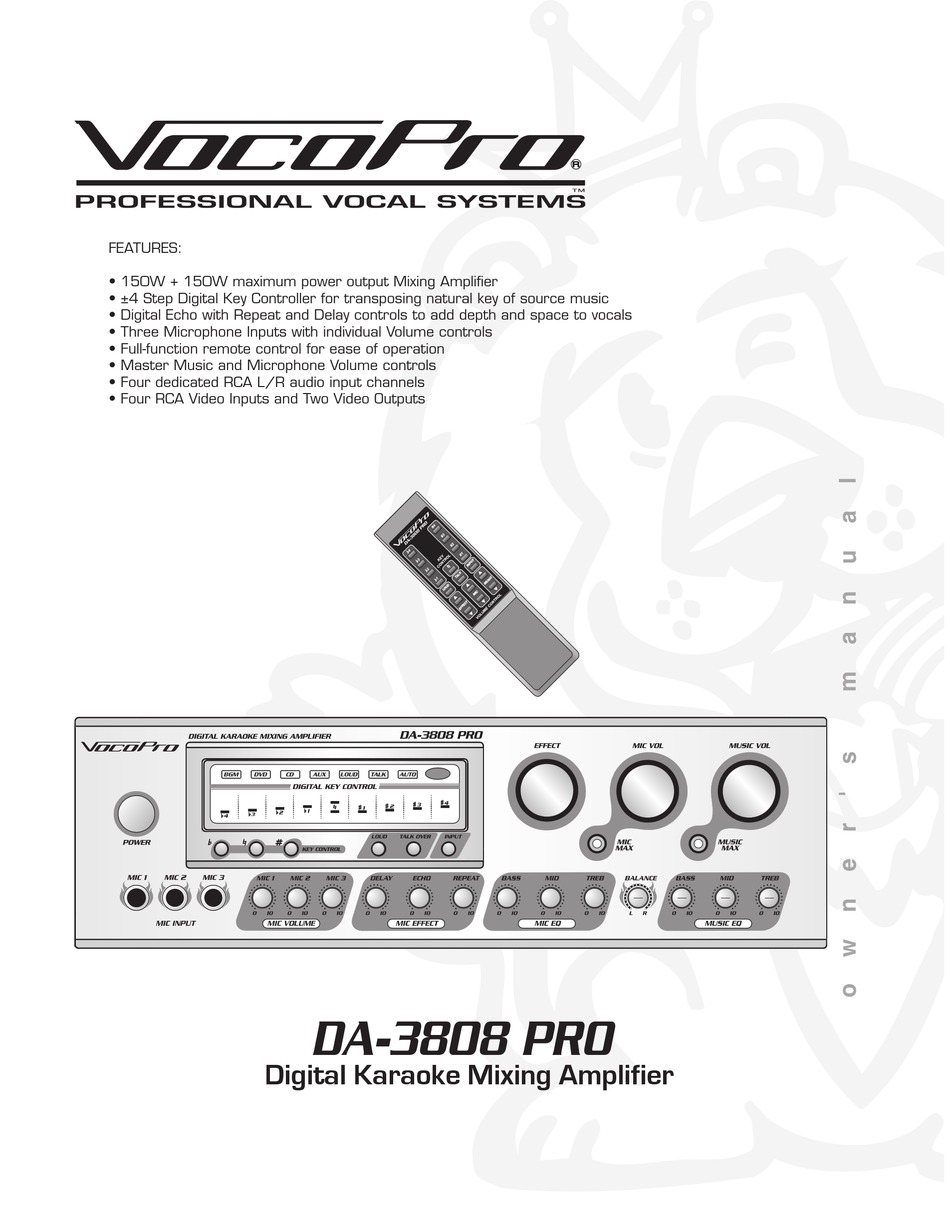

FEATURES:

• 150W + 150W maximum power output Mixing Ampliﬁer

• ±4 Step Digital Key Controller for transposing natural key of source music

• Digital Echo with Repeat and Delay controls to add depth and space to vocals

• Three Microphone Inputs with individual Volume controls

• Full-function remote control for ease of operation

• Master Music and Microphone Volume controls

• Four dedicated RCA L/R audio input channels

• Four RCA Video Inputs and Two Video Outputs

��

DA-3808 PRO

Digital Karaoke Mixing Amplifier

Table of Contents

Summary of Contents for VocoPro DA-3808 PRO

Page 1 • Four RCA Video Inputs and Two Video Outputs �� DA-3808 PRO Digital Karaoke Mixing Amplifier...
Page 3: Table Of Contents
DA-3808 PRO Table of Contents Introduction Safety Instructions ........2 FCC Information ........3 Welcome ..........4 Listening for a Lifetime ......5 Before Getting Started ......6 Getting Connected Remote and Power Cable ......7 Speakers..........8 Connecting Input Source Players ... 9-13 Connecting TV’s/Monitors ......14 Descriptions and Functions Front Panel ........
Page 4: Safety Instructions
Safety Instructions 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. For CAUTION example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.
Page 5: Fcc Information
FCC requirements. Modifications not expressly approved by �� To ensure the finest performance, please read this Vocopro may void your authority, granted by the FCC, manual carefully. Keep it in a safe place for future reference. to use this product.
Page 6: Welcome
Welcome And thank you for purchasing the DA-3808 PRO from VocoPro, your ultimate choice in Karaoke entertainment! With years of experience in the music entertainment business, VocoPro is a leading manufacturer of Karaoke equipment, and has been providing patrons of bars, churches, schools, clubs and individual consumers the opportunity to sound like a star with full-scale club models, in-home systems and mobile units.
Page 7: Listening For A Lifetime
Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Page 8: Before Getting Started
Before Getting Started Thank you for purchasing the DA-3808 PRO Digital Karaoke Mixing Ampliﬁer. The DA-3808 PRO will provide years of reliability and high quality entertainment for you if used properly. Please read this manual carefully before using your DA-3808 PRO to ensure best performance.
Page 9: Getting Connected
Getting Connected About the Remote Control Connecting the Power Cable Plug the supplied AC power cable into the AC inlet • The area between the remote control and the main after all other connections are complete and then unit must be clear of large obstacles. plug the AC power cable to an AC wall outlet.
Page 10: Speakers
3. Connect one end of the “plain” (NO stripes, grooves, ridges, etc.) cable to the “--” (black) terminal on the rear panel of the DA-3808 PRO. 4. Connect the other end of the “plain” (NO stripes, grooves, ridges, etc.) cable to the “--” (black) terminal on the speaker ��...
Page 11: Connecting Input Source Players
Connecting to the DA-3808 PRO’s Inputs �� There are four available A/V input channels which allow you to connect up to four A/V players to the DA-3808 PRO: BGM, DVD, CD, and AUX. �� ...
Page 12 �� 2. Connect the other end of the red and white RCA audio �� cable to the DVD L/R audio inputs on the DA-3808 PRO rear panel. Video 1. Connect one end of the RCA video cable to the RCA video...
Page 13 1. Connect one end of the red and white RCA audio cable to the L/R audio outputs on your player. 2. Connect the other end of the red and white RCA audio �� cable to the CD L/R audio inputs on the DA-3808 PRO �� ...
Page 14 1. Connect one end of the red and white RCA audio cable to the L/R audio outputs on your player. 2. Connect the other end of the red and white RCA audio �� cable to the AUX L/R audio inputs on the DA-3808 PRO �� ...
Page 15 �� 1. Connect one end of the red and white RCA cable to the REC OUT jacks on the DA-3808 PRO’s rear panel. 2. Connect the other end of the red and white RCA cable to the RCA inputs on the recording device, powered speakers, etc.
Page 16: Connecting Tv's/Monitors
• RCA video cable (yellow) 1. Connect one end of the RCA video cable to either of the two RCA video OUT jack on the DA-3808 PRO rear panel. 2. Connect the other end of the RCA video cable to the RCA video input on the TV/Video monitor.
Page 17: Descriptions And Functions
2. DISPLAY - Displays setting information (i.e. KEY CONTROL, AUTO, LOUD, TALK). 3. REMOTE SENSOR - When operating the DA-3808 PRO with the REMOTE CONTROL, direct the REMOTE towards this SENSOR within 23 feet. Maintain a line of sight between REMOTE and REMOTE SENSOR clear of obstacles to prevent signal blockage.
Page 18 10. INPUT - This button allows you to select between BGM, DVD, CD and AUX player input to the DA- 3808 PRO. This allows the DA-3808 PRO to differentiate between all the related source AUDIO INPUT options available on the back panel. If the button is held for approximately one second, the AUTO setting will be selected and highlighted on the display.
Page 19: Front Panel
Front Panel Descriptions and Functions cont. �� ...
Page 20: Rear Panel
Rear Panel Descriptions and Functions �� 1. BGM VOLUME CONTROL - This controls the output level of the BGM (Background Music) source. Turn clockwise to increase output, counter-clockwise to decrease.
Page 21 NOTE: The power supply cord should be disconnected before changing the voltage selector. 10. FUSE - This plastic cover is the housing for the DA-3808 PRO’s fuse. Use only the type marked on the rear panel when replacing the fuse.
Page 22: Remote Control
7. MUSIC VOLUME - Use the to raise the MUSIC VOLUME and the to lower the MUSIC VOLUME. You will see the controls on the DA-3808 PRO move as you make adjustments using the remote keys.
Page 23: Display Panel
4. AUTO INDICATOR - This indicator will illuminate when the AUTO mode has been enabled. This mode will have the DA-3808 PRO automatically switch to BGM (Background Music) when the signal from DVD, CD or AUX is stopped. Note: The switch to BGM when the signal stops may take several seconds.
Page 24: Operations
Operations Using the AUTO/BGM Feature The AUTO/BGM (background music) feature is designed to conveniently switch between active input channels and eliminate moments of silence between Karaoke performances. When playback is initiated on a player connected to the DVD, CD or AUX channels, the DA-3808 automatically selects that channel as the active input channel. When there is no signal detected from the DVD, CD or AUX channels, the DA-3808 automatically switches to the BGM channel.
Page 25: Speciﬁcations
DA-3808 PRO Speciﬁcations MAX POWER OUTPUT (1KHz, 8Ω) ..150W + 150W TOTAL HARMONIC DISTORTION ..0.05% (1 KHz, 60W, 8Ω) AUDIO MICROPHONE ........12mV/2KΩ BGM/DVD/CD/AUX ......300mV/51KΩ VIDEO DVD/ AUX / CDG ......1V P-P/75Ω FREQUENCY RESPONSE MIC ..........40Hz–15kHz ±3db MUSIC ..........
Page 26: Troubleshooting
• Make sure all of your components are turned on. No sound output when BGM source is playing. • Make sure the DA-3808 PRO is set to the BGM input. • Make sure the rear BGM volume is turned up.
