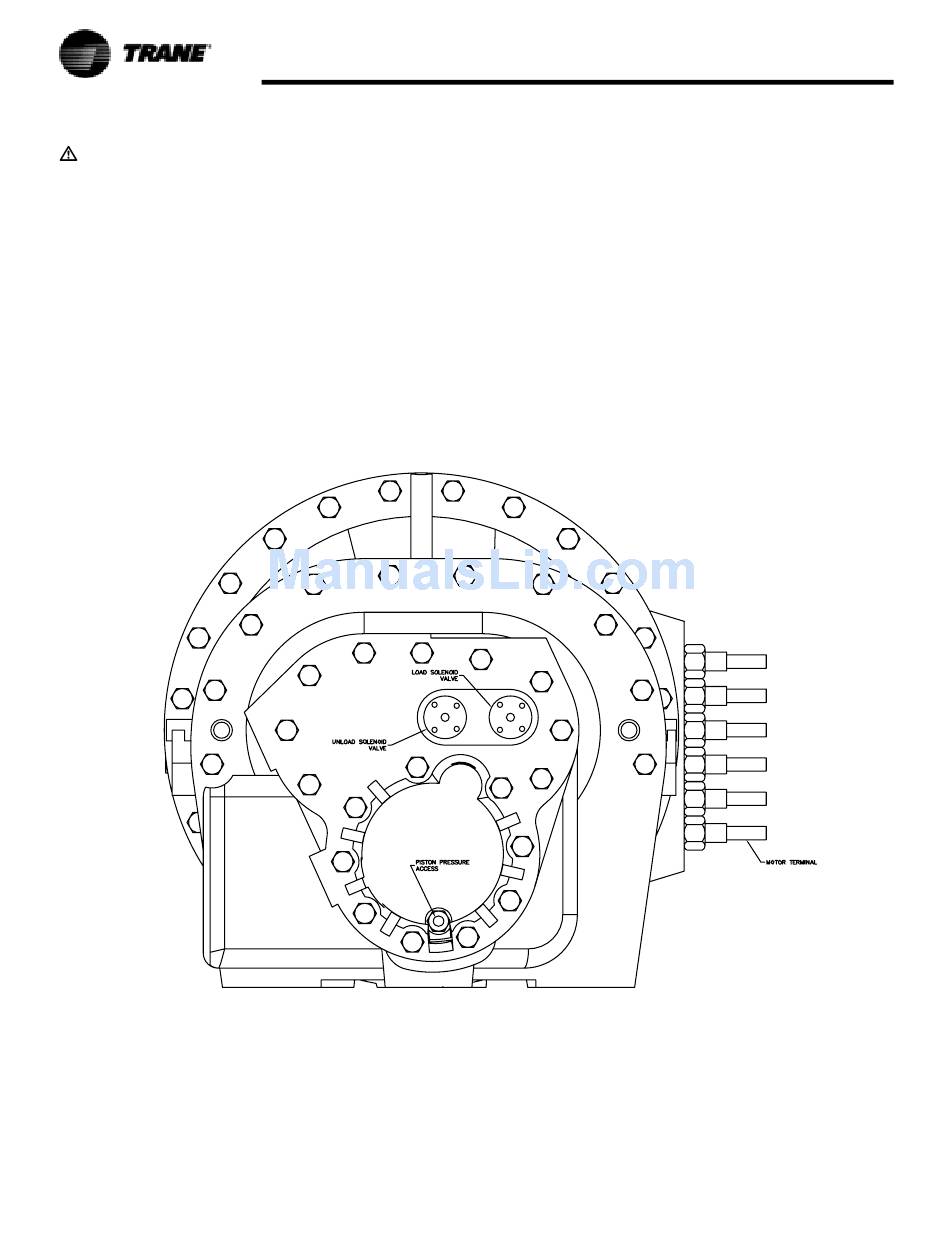

Figure 31. CHHC Compressor
46
Compressor Capacity - RTHD
During installation, testing, servicing and troubleshooting of this product, it may
be necessary to work with live electrical components. Have a qualified licensed
electrician or other individual who has been properly trained in handling live
electrical components perform these tasks. Failure to follow all electrical safety
precautions when exposed to live electrical components could result in death or
serious injury.
1. Connect to unit with TechView. Take manual control of the slide valve.
Change slide valve control from auto to manual. Increase the slide valve duty
cycle to load and decrease to unload.
2. Connect a manifold gauge set to the schrader valve located at the end of the
piston housing. This schrader allows access to the pressure behind the male
piston. Refer to Figure 31.
