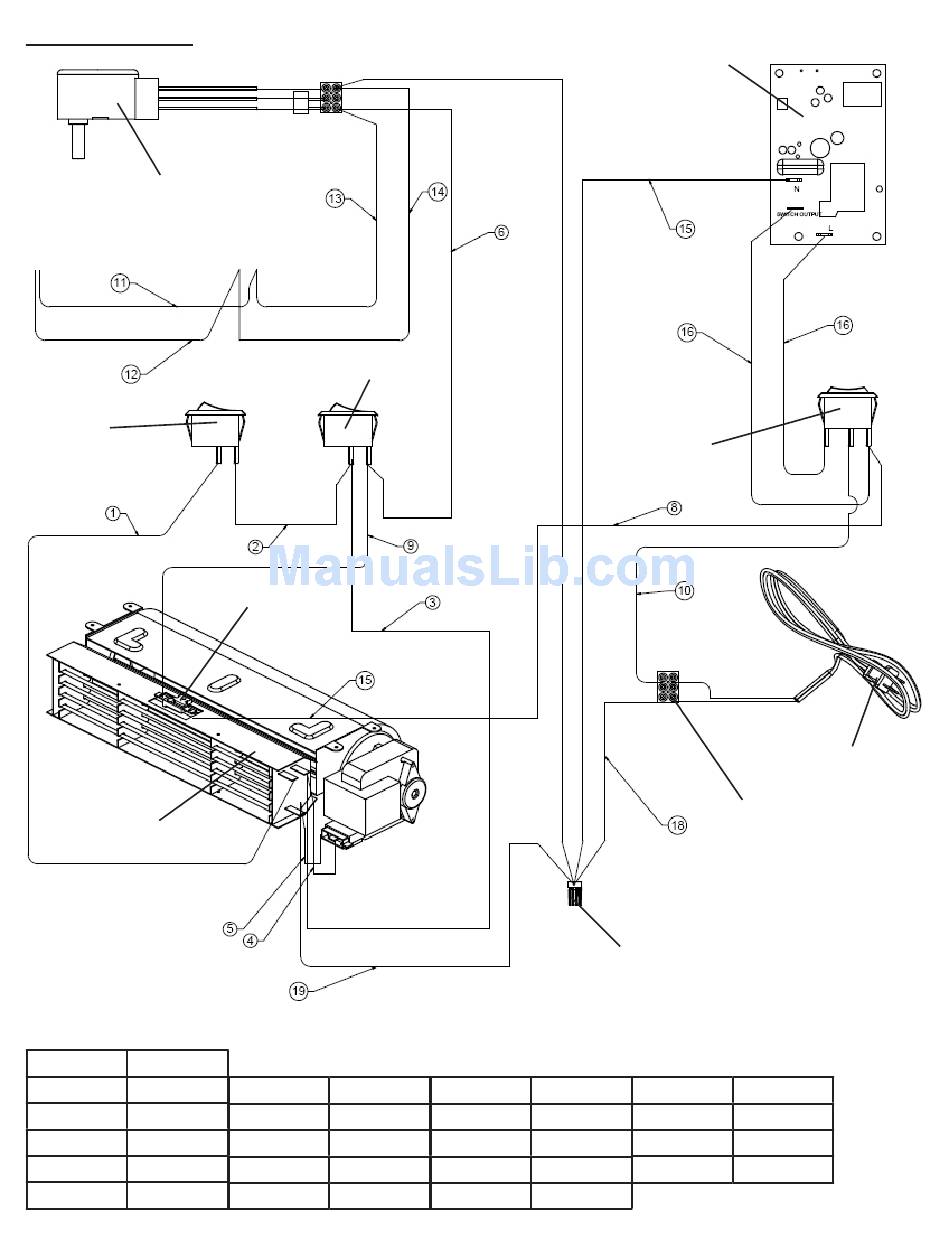

Wiring Diagram
Flicker Motor
High Heat
Switch
Heater Assembly
Wire #
Colour
1.
Yellow
2.
Grey
3.
Grey
4.
Grey
5.
Blue
Low Heat Switch
Cutout
6.
Red
7.
Blue
8.
Red
9.
Red
10.
Black
3 Position
On/Off Switch
11.
Black
12.
Blue
13.
Black
14.
Blue
15.
Blue
5
Remote
Receiver
Board
Power
Terminal Block
Circuitry
Terminal Block
16.
Red
17.
Grey
18.
Blue
19.
Blue
Cord Set
