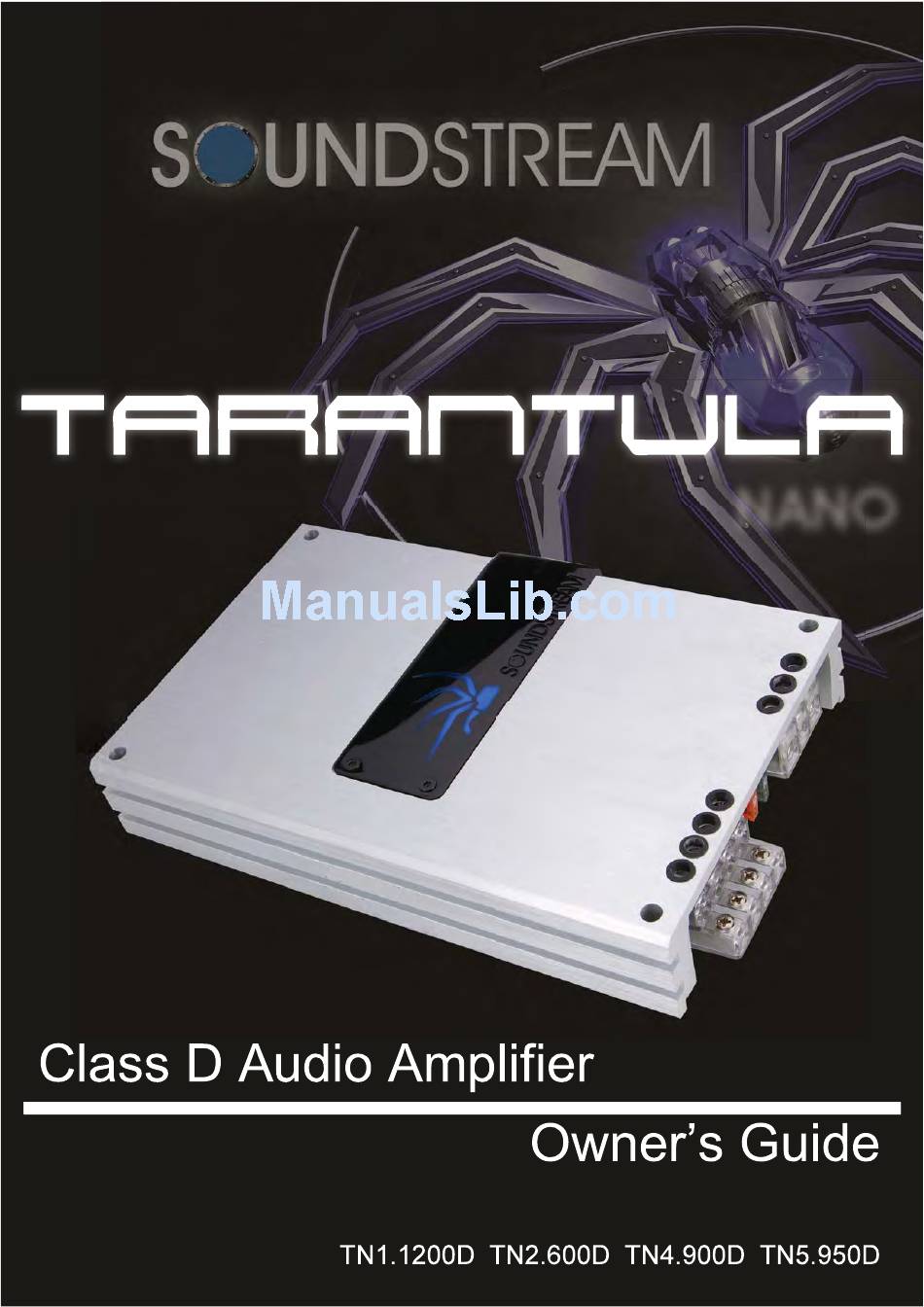

- Page 1 NANO...
- Page 2 Soundstream. Unit must be returned to Soundstream , postage pre-paid, with bill of sale or other dated proof of purchase bear- ing the following information: consumer's name, telephone number, and address, authorized dealer's name and address, and product description.
- Page 3 TN1.1200D Pre-Amp Remote Level Control Connection Power Indication LED Connect the remote level control to this terminal. The remote level control allows adjustment of the subwoofer level from a remote LED will illuminate green. Refer to the Troubleshooting Guide location in the vehicle. Low Pass Crossover Level Sensitivity Adjust the frequency setting of the low pass crossover.
- Page 4 TN1.1200D Wire Connections Power Connection Terminal Speaker Connection Terminal GND Connect good quality 8ga. ground wire to the nearest Connect the subwoofer(s) to the corresponding (+) & (-) vehicle chassis ground. Take a moment to properly prepare the terminals. If only one subwoofer with 1Ω is used, use only one ground location for the best ground.
- Page 5 TN1.1200D Power Rating RMS Output Power, 14.4V, 4Ω 660w x 1 RMS Output Power, 14.4V, 2Ω 1,050w x 1 RMS Output Power, 14.4V, 1Ω 1,200w x 1 RMS Output Power, 12.0V, 4Ω 466w x 1 RMS Output Power, 12.0V, 2Ω 610w x 1 RMS Output Power, 12.0V, 1Ω...
- Page 6 TN2.600D Pre-Amp RCA Audio Output Connection High Pass Crossover Using high quality shielded stereo RCA cables, connect the Adjust the frequency setting of the High Pass Crossover. The audio signal to the RCA audio inputs of additional system frequency range is 20Hz-4kHz. Frequencies lower than the components.
- Page 7 TN2.600D Wire Connections Speaker Connection Terminal Power Connection Terminal Connect speaker(s) with a minimum impedance of 2Ω to the GND Connect good quality 8ga. ground wire to the nearest corresponding (+) & (-) terminals. vehicle chassis ground. Take a moment to properly prepare the ground location for the best ground.
- Page 8 TN2.600D Power Rating RMS Output Power, 14.4V, 4Ω 200w x 2 RMS Output Power, 14.4V, 2Ω 300w x 2 RMS Output Power, 14.4V, 4Ω Bridged 600w x 1 RMS Output Power, 12.0V, 4Ω 100w x 2 RMS Output Power, 12.0V, 2Ω 200w x 2 RMS Output Power, 12.0V, 4Ω...
- Page 9 TN4.900D Pre-Amp Front RCA Audio Input Connection Power Indication LED Using high quality shielded stereo RCA cables, connect the LED will illuminate green. Refer to the Troubleshooting Guide for possible solutions if the amplifer will not power on. Front Level Sensitivity Protection Indicator LED sensitivity level is 200mv, while the maximum level is 6V.
- Page 10 TN4.900D Wire Connections Speaker Connection Terminal Power Connection Terminal Connect speaker(s) with a minimum impedance of 2Ω to the GND Connect good quality 8ga. ground wire to the nearest corresponding (+) & (-) terminals. vehicle chassis ground. Take a moment to properly prepare the ground location for the best ground.
- Page 11 TN4.900D Specifications Power Rating RMS Output Power, 14.4V, 4Ω 150w x 4 RMS Output Power, 14.4V, 2Ω 225w x 4 RMS Output Power, 14.4V, 4Ω Bridged 450w x 2 RMS Output Power, 12.0V, 4Ω 100w x 4 RMS Output Power, 12.0V, 2Ω 150w x 4 RMS Output Power, 12.0V, 4Ω...
- Page 12 TN5.950D Pre-Amp Front RCA Audio Input Connection Front High Pass Crossover Using high quality shielded stereo RCA cables, connect the Adjust the frequency setting of the High Pass Crossover for the front channels. The frequency range is 50Hz-4kHz. Frequencies Rear RCA Audio Input Connection Front Crossover Selector Switch Using high quality shielded stereo RCA cables, connect the Choose HPF to activate the High Pass Crossover, or select FULL to...
- Page 13 TN5.950D Wire Connections Speaker Connection Terminal Power Connection Terminal Connect speaker(s) with a minimum impedance of 2Ω to the GND Connect good quality 8ga. ground wire to the nearest corresponding (+) & (-) terminals. vehicle chassis ground. Take a moment to properly prepare the ground location for the best ground.
- Page 14 TN5.950D Specifications Power Rating RMS Output Power, 14.4V, 4Ω 85w x 4 & 270 x 1 RMS Output Power, 14.4V, 2Ω 130w x 4 & 430 x 1 RMS Output Power, 14.4V, 4Ω Bridged 260w x 2 & 430 x 1 RMS Output Power, 12.0V, 4Ω...
- Page 15 TARANTULA Troubleshooting Guide Symptom Possible Remedy Amplifier Check to make sure you have a good ground connection. will not Check that there is battery power on the (+)terminal . power up Check all fuses, replace if necessary . Make sure that the Protection LED is not illuminated. Protection Check for short circuits on speaker leads.
- Page 16 NANO Soundsteram Technologies 2012, Montebello, CA USA All Rights Reserved. Specifications & Designs Are Subject to Change Without Notice.
