Page 1: Power Amplifiers

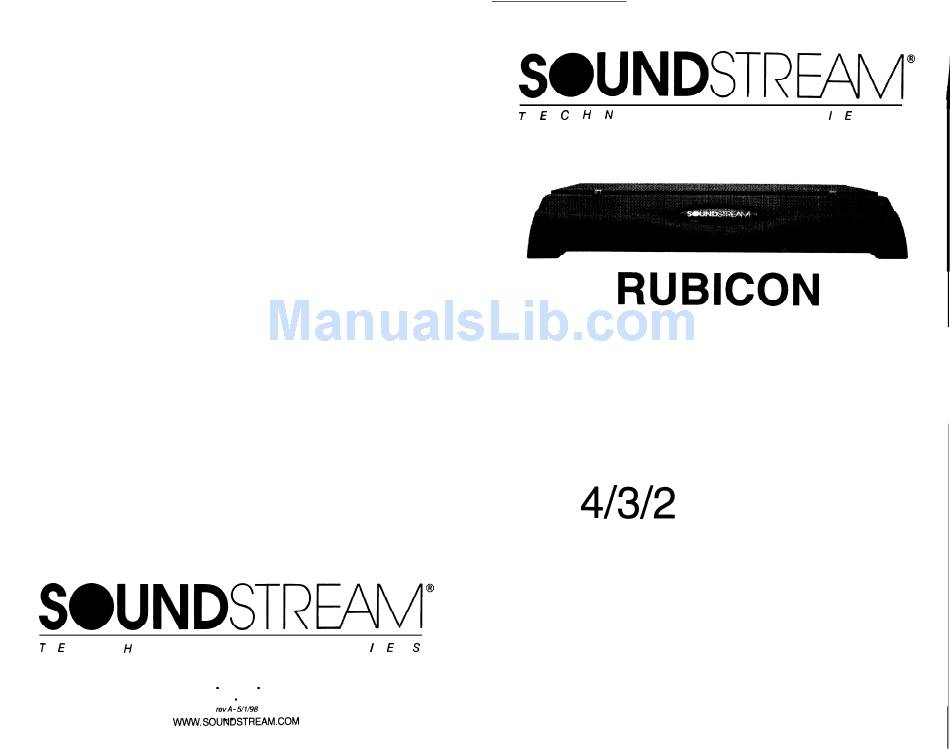

SOUNDSTRC@ SOUNDSTREAM TECHNOLOGIES 120 Blue Ravine Road Folsom California 95630 USA ph 916.351.1288 fax 916.351.0414 revA - YV98 WWV. SOUfdDSTREAM.COM S@UNDSTREW/l@ 1 Power Amplifiers RUBICON 41312 Channel Owner’s Manual Installation Guide... - Page 2 Conaratulations! You now own the Soundstream RUBICON amplifier, the product of an un- compromising design and engineering philosophy, Your Soundstream RUBICON amplifier will outperform any other amplifier in the world. To maximize the performance of your system, we recommend that you thor- oughly acquaint yourself with its capabilites and features.
- Page 3 RUBITM(_Rapid-Be @ranched _knpulse) This new proprietary power ply topology eliminates “power sags” during low frequency reproduction rapidly increasing the duty cycle, stabilizing the power supply and allowing it to deliver the power required when reproducing low frequen- cies. Also, greater reserve gate power is stored for low voltage condi- tions that occur during extreme conditions.
- Page 4 RUBICON i--w_ -16 , TOP VlEW FRONTVIEW FUSE LED - Indicates blown POWER LED - Indicates amplifier power. Subsonic / Hawkins Bass Control Switch - “SUB SONIC” to engage the Sub Sonic filter at 13 Hz. “Hawkins Bass Control” to engage the high pass filter @ 45 Hz with built-in boost at +6dB for optimum bass for any Low Pass channel.
- Page 5 RUBlCON404 Top View Front View Power LEO - CWWt. Subsonic / Hawkins Bass Control Switch - the Sub Sonic filter at 13 Hz. ‘“Hawkins Bass Control” to engage the high pass filter @ 45 Hz with variable boost (Q) for optimum bass for any chan- nel in Low Pass.
- Page 6 . _ - Top View Front View FUSE LED Power LED Subsonic / Hawkins Bass Control Switch filter at 13 Hz. “Hawkins Bass Control” to engage the high pass filter @ 45 Hz with variable boost (Q) for optimum bass for any channel in Low Pass. Clip Indicators output stage of the amplifier is clipping.
- Page 7 The RUBICON204,404 and 604 amplifiers incorporates an on-board stag- gered electronic crossover, with full range RCA outputs to drive an external amplifier. No external electronic crossover is necessary. The high and low pass portions of the crossover can be set independently of one another. In many car audio installations, there is a tendency for a “midbass boom.”...
- Page 8 ( INSTALLATION STEP 1 SELECTING THE SPEAKER OUTPUT MODE Channels through 4 of the RUBICON204, 404 and 604 amplifiers have the ability to operate in any one of the following modes: Stereo @TACT); Use this mode for stereo operation (left and right channels). Bridged Mono;...
- Page 9 INSTALLATION STEP 3 ) WIRING POWER AND GROUND To ensure maximum output from your RUBICON amplifier, use high quality, low- loss power and ground cables and connections (4 gauge for 604). The RUBICON amplifiers will accept up to 8 gauge power and ground cables. Determine from the chart below the minimum gauge power and ground wire for your application.
- Page 10 B o t t o m view / (604) __ _ -_._-____- . CH1&2 , ~~~__ CH1&2 CH3&4 Bottom View f-204) Top View(204) _. . __. . . _ . _ _ __ _ LINE OUTPUT N P U T...
- Page 11 ;,z; : n : .-...
-
Page 12: Specifications
PROBLEM No sound and fuse light (204 & Fuse is blown, replace fuse with proper 604 only) is lit. value. 1. No power or ground at the amp. No Sound and Power LED is not 2.
