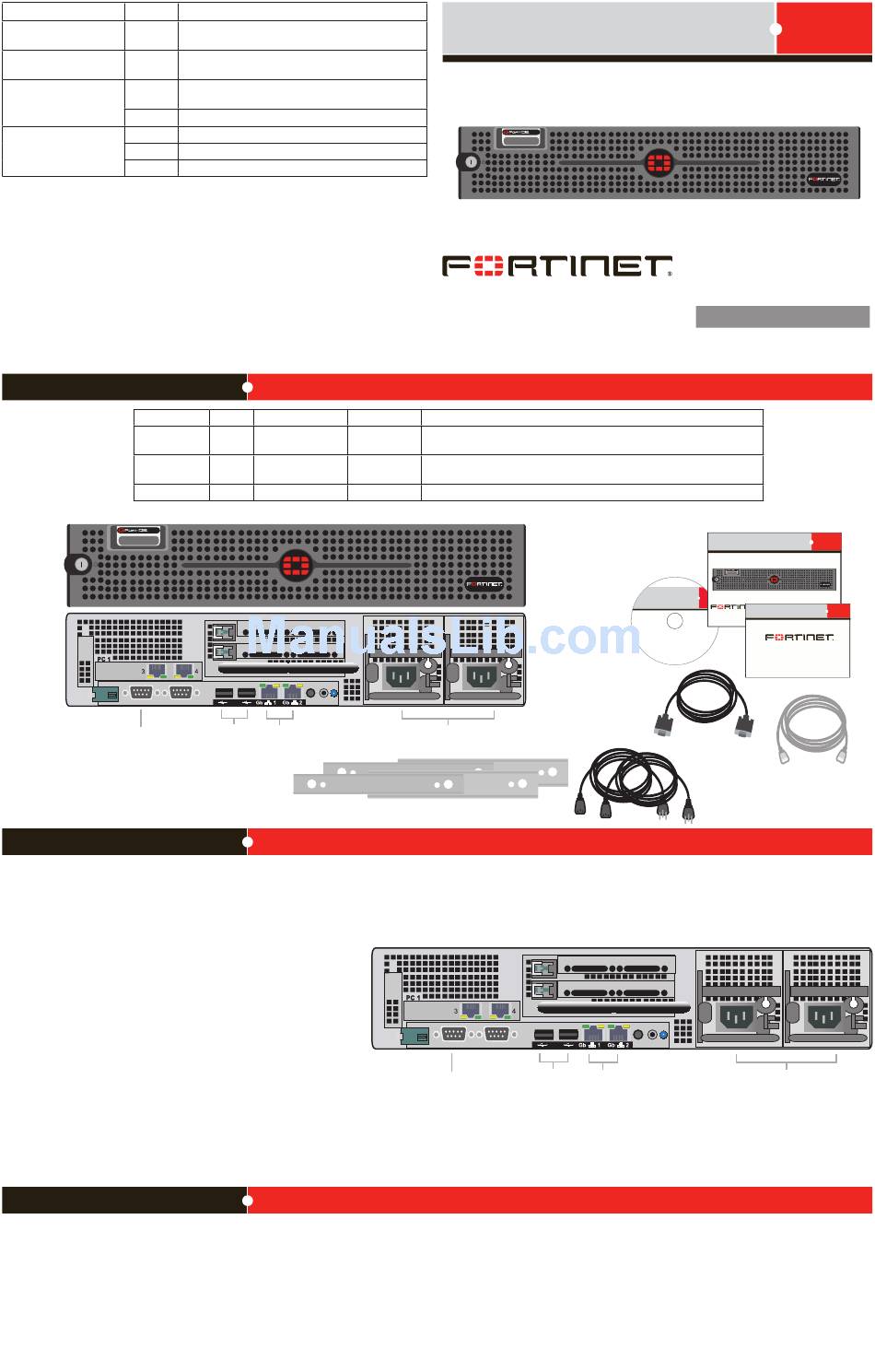

Fortinet FortiDB FortiDB-2000B Quick Start Manual

LED State
Green
Ports 1 and 2 Left
Flashing
Ports 1 and 2 Right
Amber
Green
Ports 3 and 4 Left
Flashing
Green
Ports 3 and 4 Right Amber
Off
Visit these links for more information and documentation for your Fortinet product.
• Technical Documentation - http://docs.forticare.com
• Fortinet Knowledge Center - http://kc.forticare.com
• Fortinet Technical Support - http://support.fortinet.com
Package Contents
Connector
Ports 1 to 4
CONSOLE
USB
2000B
Console
connection
Connecting
Connect the following to the FortiDB unit. Ensure the FortiDB unit is placed on a stable surface or install in a standard 19 inch rack. See the
FortiDB-2000B Rack Install Guide for details.
• Insert an Ethernet cable to port 1.
• Connect the other end of network cable to the network hub or switch.
• Connect the AC Power Cord to the Power Supply.
• Connect the Power Cord to a surge protected
power bar or power supply.
• Remove the front panel and press the power button.
When powering off the FortiDB unit, always shut down the unit using the fol-
lowing procedures before disconnecting the power supply. Not following this
procedure can increase the risk of damaging the FortiDB hard disk.
You can only shut down the FortiDB unit using the CLI.
Enter the following command at the prompt:
execute shutdown
To power down completely, remove the front panel and press the power button.
Configuration Tools
Web-based manager
The FortiDB web-based manager is an easy-to-use management tool.
Use it to configure the administrator password, the interface and default gateway addresses,
add Fortinet devices and configure reports.
Requirements:
• An Ethernet connection between the FortiDB unit and management computer.
• A web browser such as FireFox or Internet Explorer on the management computer.
Description
The correct cable is connected to the interface and
the connected equipment has power
Network activity at this interface.
The correct cable is connected to the interface and
the connected equipment has power.
Network activity at this interface.
The interface is connected at 1000 Mbps.
The interface is connected at 100 Mbps.
The interface is connected at 10 Mbps.
Type Speed
RJ-45 10/100/1000
Base-T
DB9 9600 8/N/1
USB
USB Ethernet
ports
QuickStart Guide
© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
27 January 2009
Protocol Description
Ethernet Copper gigabit connection to 10/100/1000 copper networks.
RS-232 serial Optional connection to the management computer. Provides access to
the command line interface (CLI).
USB For diskless boot.
Redundant
power supply
2 Mounting Slide Rails
Console
connection
Command Line Interface (CLI)
The CLI is a full-featured management tool. Use it to configure the administrator password,
the interface addresses, the default gateway address, and the DNS server addresses. To
configure advanced settings, see the Tools and Documentation CD included with the
FortiDB unit.
Requirements:
• The DB9 serial connection between the FortiDB unit and management computer.
• A terminal emulation application (HyperTerminal for Windows) on the management
computer.
2000B
Tools and Documenation
DB-9 Serial Cable
Power Cables
USB Ethernet
ports
FortiDB-2000B
15-32000-85972-20090127
QuickStart Guide
FortiGate-30B
2000B
Copyright 2008 Fortinet Incorporated. All rights reserved.
Trademarks
Welcome | Bienvenue | Willkommen | 歓迎 | Bienvenido | Benvenuto
Straight-through
Ethernet cable
Redundant
power supply
