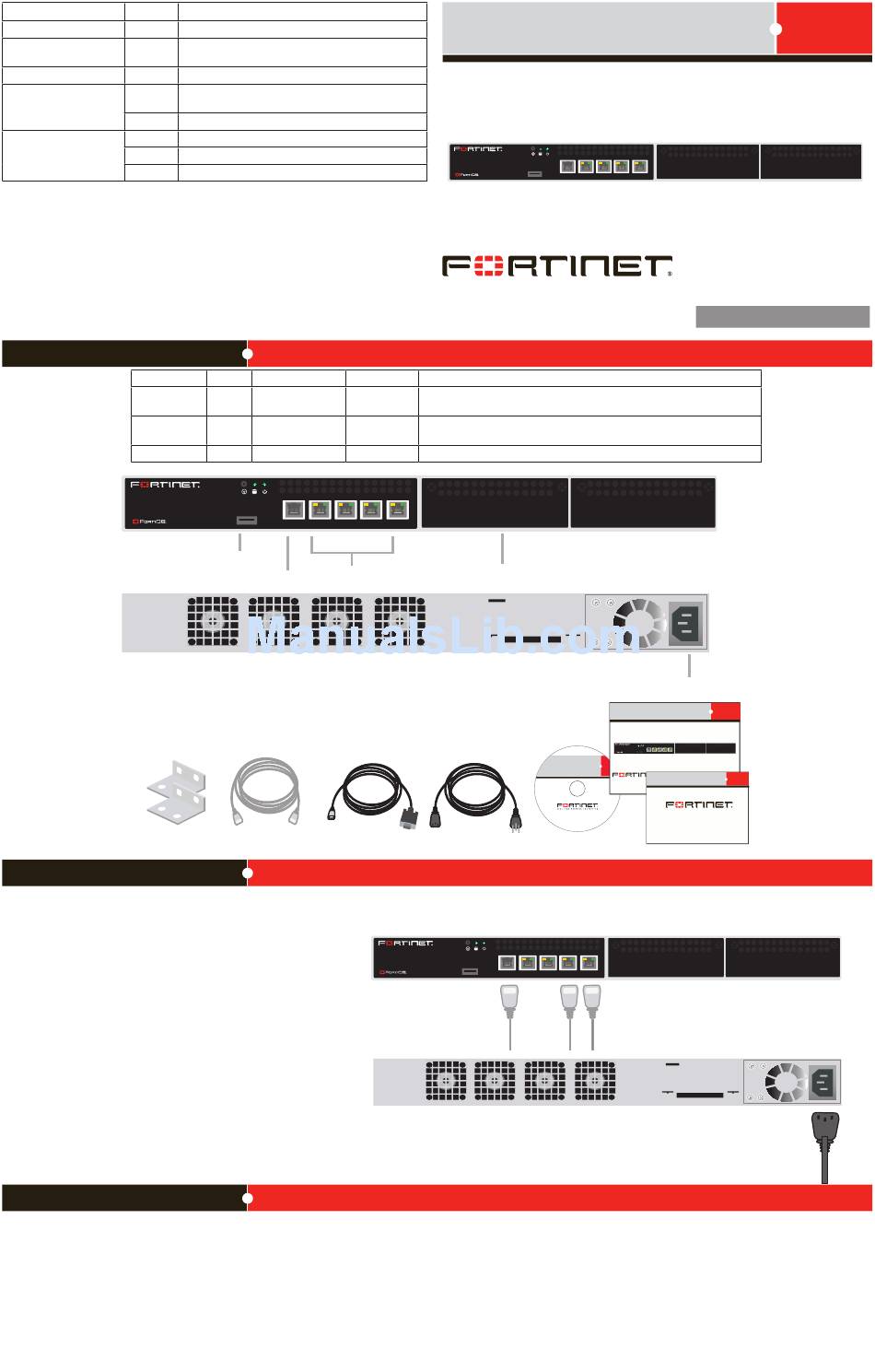

Fortinet FortiAnalyzer FortiDB-400B Quick Start Manual

LED State
Power Green
Flashing
Hard Disk
Geen
Alarm Red
Green
Ports 1 to 4 Right LED
Flashing
Green
Ports 1 to4 Left LED Amber
Off
Visit these links for more information and documentation for your Fortinet product.
• Technical Documentation - http://docs.forticare.com
• Fortinet Knowledge Center - http://kc.forticare.com
• Fortinet Technical Support - http://support.fortinet.com
Package Contents
Connector
Ports 1 to 4
CONSOLE
USB
400B
Rack-Mount
Brackets
Connecting
Connect the following to the FortiDB unit. Ensure the FortiDB unit is placed on a stable surface or install in a standard 19 inch rack.
• Insert one end of an Ethernet cable into port 1.
• Connect the other end of the Ethernet cable to the network hub or switch.
• Connect the AC Power cable to the Power Supply on the back of the
FortiDB unit.
• Connect the other end of the Power cable to a surge protected
power bar or power supply.
Configuration Tools
Web-based manager
The FortiDB web-based manager is an easy-to-use management tool.
Use it to configure the administrator password, the interface and default gateway addresses,
and configure reports.
Requirements:
• An Ethernet connection between the FortiDB unit and management computer.
• A web browser such as FireFox or Internet Explorer on the management computer.
Description
The device is connected to a power source and on.
Activity on the hard disk.
Hard disk failure.
The correct cable is connected to the interface and
the connected equipment has power.
Network activity at this interface.
The interface is connected at 1000 Mbps.
The interface is connected at 100 Mbps.
The interface is connected at 10 Mbps.
Type Speed
RJ-45 10/100/1000
Base-T
RJ-45 9600 8/N/1
USB
USB
CONSOLE 1 2
USB
RJ-45 serial
Ethernet ports
connection
Straight-through
DB-9 Serial Cable
Ethernet cable
QuickStart Guide
400B
© Copyright 2009 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
7 January 2009
Protocol Description
Ethernet Copper gigabit connection to 10/100/1000 copper networks.
RS-232 serial Optional connection to the management computer. Provides access to
the command line interface (CLI).
USB For future use.
3 4
Removable hard disk
RJ-45 to
Power Cable
USB
400B
CONSOLE
RJ-45 to DB-9 serial cable
connects to management
computer
Command Line Interface (CLI)
The CLI is a full-featured management tool. Use it to configure the administrator password,
the interface addresses, the default gateway address, and the DNS server addresses. To
configure advanced settings, see the Tools and Documentation CD included with the
FortiDB unit.
Requirements:
• The RJ-45 to DB9 serial connection between the FortiDB unit and management
computer.
• A terminal-emulation application such as HyperTerminal for Windows, on the
management computer.
USB
CONSOLE 1 2 3 4
AC power
connection
QuickStart Guide
Tools and Documenation
Copyright 2009 Fortinet Incorporated. All rights reserved.
Trademarks
Welcome | Bienvenue | Willkommen | 歓迎 | Bienvenido | Benvenuto
1 2 3 4
Ethernet cables connect
to computers on the
internal network
FortiDB-400B
15-32000-86800-20090107
FortiGate-30B
Power cable
connects to
power supply
