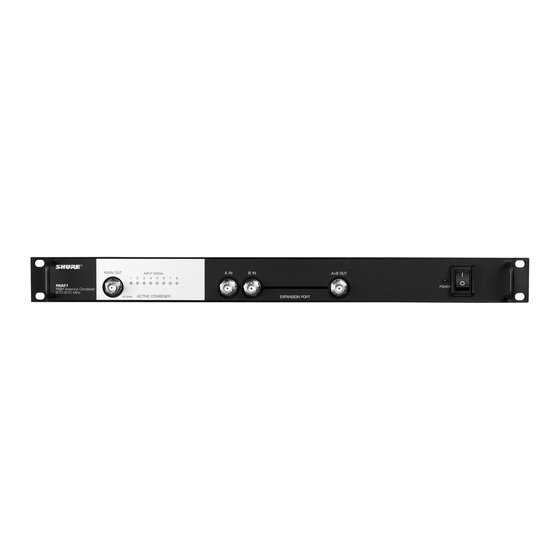

Model PA821
User Guide
®
PSM
Antenna Combiner User Guide
Guide de l'utilisateur du répartiteur d'antenne PSM
Bedienungsanleitung für die Antennenweiche PSM
Guía del usuario del combinador de antenas PSM
Guida d'uso del combinatore di antenne PSM
©2008 Shure Incorporated
Printed in U.S.A.
27A8807 (Rev. 1)
Advertisement
Related Manuals for Shure PA821
Summary of Contents for Shure PA821

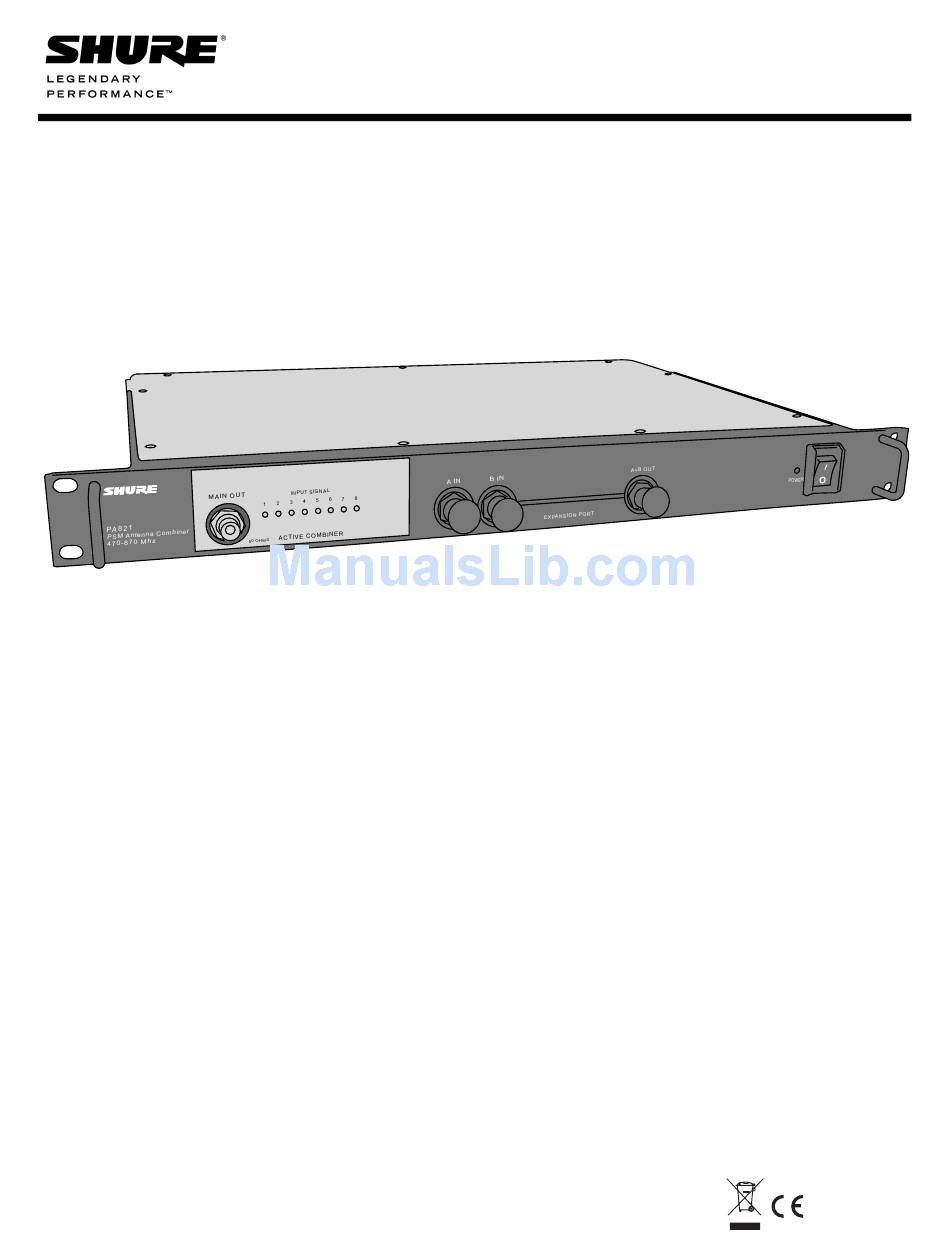

- Page 1 Model PA821 User Guide ® Antenna Combiner User Guide Guide de l'utilisateur du répartiteur d'antenne PSM Bedienungsanleitung für die Antennenweiche PSM Guía del usuario del combinador de antenas PSM Guida d'uso del combinatore di antenne PSM ©2008 Shure Incorporated Printed in U.S.A.
-
Page 2: Important Safety Instructions
Attach an antenna to the MAIN OUT of PA821. For wideband appli- cations, use PA805 directional antenna (Figure 1). Connect the PA821 to a power outlet using one of the supplied power cables. The PA821 contains a universal power supply to operate anywhere in the world. -
Page 3: Specifications
EXPANSION PORT Input AC Line Voltage Connect another (from a ninth PSM trans- ANTENNA OUTPUT 100-240 Vac, 50/60 Hz mitter, second PA821 or other antenna port) to the B IN of the Maximum Input Line VA EXPANSION PORT. 100 VA... - Page 4 ENGLISH CERTIFICATIONS PA821: Certified to FCC Part 74 (FCC ID No. DD4PA821). Certified in Canada by IC to RSS-123 AND RSS-102 (Certification No. IC 616A- PA821). UL LISTED to UL6500 (2nd Edition) and cUL LISTED to CAN/CSA E60065-00. Meets the Essential Requirements of the European R&TTE Di- rective 99/5/EC, eligible to bear CE mark.
