- Page 1 PA805DB-RSMA Passive Directional Antenna Online user guide for PA805DB-RSMA. Version: 1.0 (2023-A)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Furnished Accessories PA805DB-RSMA Passive Directional Antenna Optional Accessories and Replacement Parts IMPORTANT SAFETY INSTRUCTIONS Specifications General Description Important Product Information Installation Instructions Certifications Cable Selection China RoHS... -
Page 3: Pa805Db-Rsma Passive Directional Antenna
Shure Incorporated PA805DB-RSMA Passive Directional Antenna IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: General Description

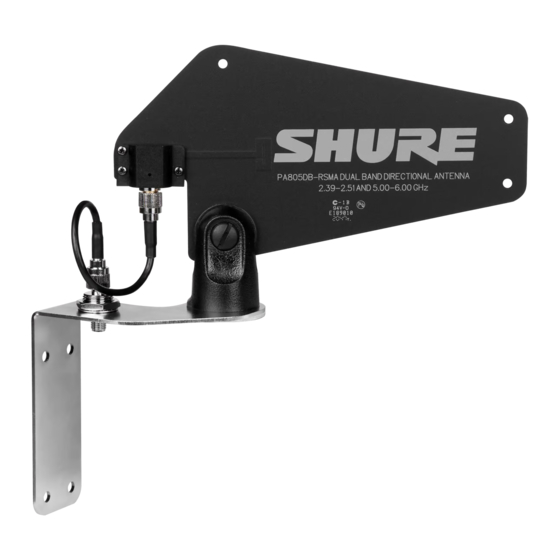

Shure Incorporated General Description The Shure PA805DBRSMA is a passive directional antenna that improves RF performance by rejecting offaxis RF signal. Po sitioned remotely, antennas can be aimed directly at transmitters. The antenna attaches to a microphone stand or to the separate wall-mounting bracket, and delivers the following benefits over standard omnidirectional half-wave antennas: • Reduced interference •... -
Page 5: Cable Selection
90C31342 (ships with PA805DB-RS- 3 m (10 ft.) 1.5 dB dB UA825-RSMA 7.6 m (25 ft.) 3.3 dB dB 10.2 UA850-RSMA 15.2 m (50 ft.) 6.4 dB dB 10.8 UA8100-RSMA 30.4 m (100 ft.) 6.8 dB dB For additional technical assistance, call the Shure Customer Service Department. -
Page 6: Furnished Accessories
Shure Incorporated Furnished Accessories 3 m (10 ft.) Reverse SMA Cable 95C31342 Brass Adapter 31B1856 Optional Accessories and Replacement Parts Remote Antenna Mounting Bracket Kit UA505-RSMA Frequency Manager GLXD+FM Reverse SMA Passive Antenna Splitter UA221DB-RSMA 0.6 m (2 ft.) Reverse SMA Cable UA802-RSMA 1.8 m (6 ft.) Reverse SMA Cable... -
Page 7: Important Product Information
Shure Incorporated @ 5.785 GHz, typical 53 degrees Polarization Linear Impedance 50 Ω Voltage Standing Wave Ratio (VSWR) 2.4 - 2.5 GHz < 1.5 (< 1.3, typical) 5.0 - 6.0 GHz < 2.5 (< 2, typical) Connector Type Reverse SMA Dimensions 4.13 x 6.45 x 1 in. (105 x 164 x 27.5 mm) with mounting accessories, (H x W x D) -
Page 8: Certifications
