  • Page 1 PA411 Antenna Combiner Version: 1 (2019-J)

  • Page 2: Table Of Contents

    Shure Incorporated Table of Contents Power and RF Connections PA411Antenna Combiner Optional Accessories and Replacement Parts Important Product Information Specifications IMPORTANT SAFETY INSTRUCTIONS RF Input SAFETY PRECAUTIONS RF Output General Description LICENSING INFORMATION Included Components Certifications Front and Rear Panels...

  • Page 3: Pa411Antenna Combiner

    Shure Incorporated PA411 Antenna Combiner Important Product Information IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.

  • Page 4: Safety Precautions

    Shure Incorporated WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功 能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使 用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機 設備之干擾。 SAFETY PRECAUTIONS The possible results of incorrect use are marked by one of the two symbols—"WARNING" and "CAUTION"—depending on the imminence of the danger and the severity of the damage.

  • Page 5: General Description

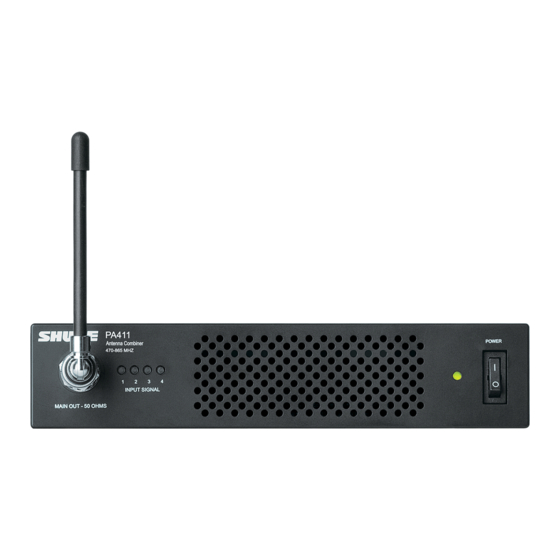

    General Description ® The Shure PA411 Antenna Combiner distributes DC power and RF signal for up to four Shure PSM 300 transmitters. The com­ pact half-rack system significantly reduces the amount of antennas and power supplies needed when using multiple systems.

  • Page 6: Power And Rf Connections

    Connect to transmitter RF outputs Power and RF Connections Connect the Shure PS60 power supply to a power outlet and to the power input on the PA411. Connect the 1-to-4 power cable to the DC power output on the PA411.
  • Page 7 Shure Incorporated 7/11...

  • Page 8: Optional Accessories And Replacement Parts

    Shure Incorporated Optional Accessories and Replacement Parts 1-to-4 Power Distribution Cable PS411-PC 22 in. BNC-BNC Coaxial Cable 95K2035 2 ft. BNC-BNC Coaxial Cable UA802 6 foot (1.8m) BNC to BNC Coaxial Cable for Remote Antenna Mounting for ULX UA806 Wireless System 25 ft.

  • Page 9: Specifications

    Shure Incorporated 1/2 wave antenna (710-790 MHz) UA8-710-790 1/2 wave antenna (740-814 MHz) UA8-740-814 1/2 wave antenna (750-822 MHz) UA8-750-822 1/2 wave antenna (774-865 MHz) UA8-774-865 Single Rack Mount Kit RPW503 Dual Rack Mount Kit RPW504 Specifications Power Requirements 15V DC...

  • Page 10: Rf Output

    Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de­ pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

  • Page 11: Certifications

    Certified by IC in Canada under RSS-123 and RSS-102. FCC ID: DD4PA411A. IC: 616A-PA411A. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
