LX2 HANDHELD MICROPHONE-TRANSMITTER
FEATURES, CONTROLS AND INDICATORS

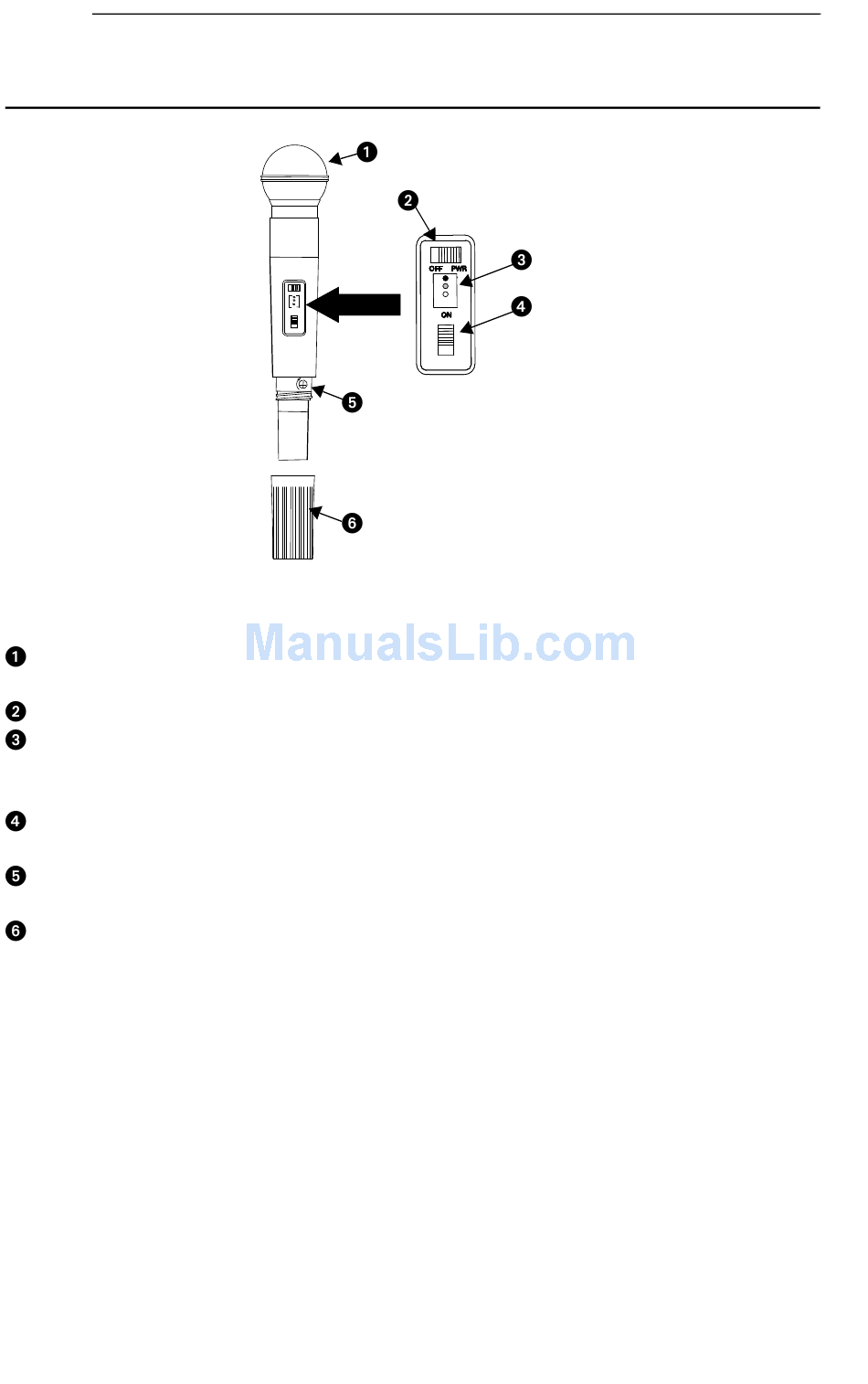

LX2 MICROPHONE-TRANSMITTER FEATURES, CONTROLS, AND INDICATORS
Grille. Protects the microphone cartridge and helps reduce breath sounds and
wind noise. The grilles for the various microphone heads differ in appearance.
Power Switch. Turns transmitter power on and off.
Power/Battery Fuel Gauge. When the Power switch is turned to the PWR posi-
tion, one or two of the three lights on the transmitter illuminates. The color of the
glowing light(s) indicates the amount of battery life remaining (see page 12).
Mic On/Mute Switch. "Mutes" the transmitter to prevent unwanted sounds from
being picked up by the receiver without turning the transmitter off.
Audio Gain Control. Provides audio level adjustment to accommodate different
sound sources (see page 16).
Battery Cover. Removable cup hides battery and audio gain control.
6
FIGURE 3
