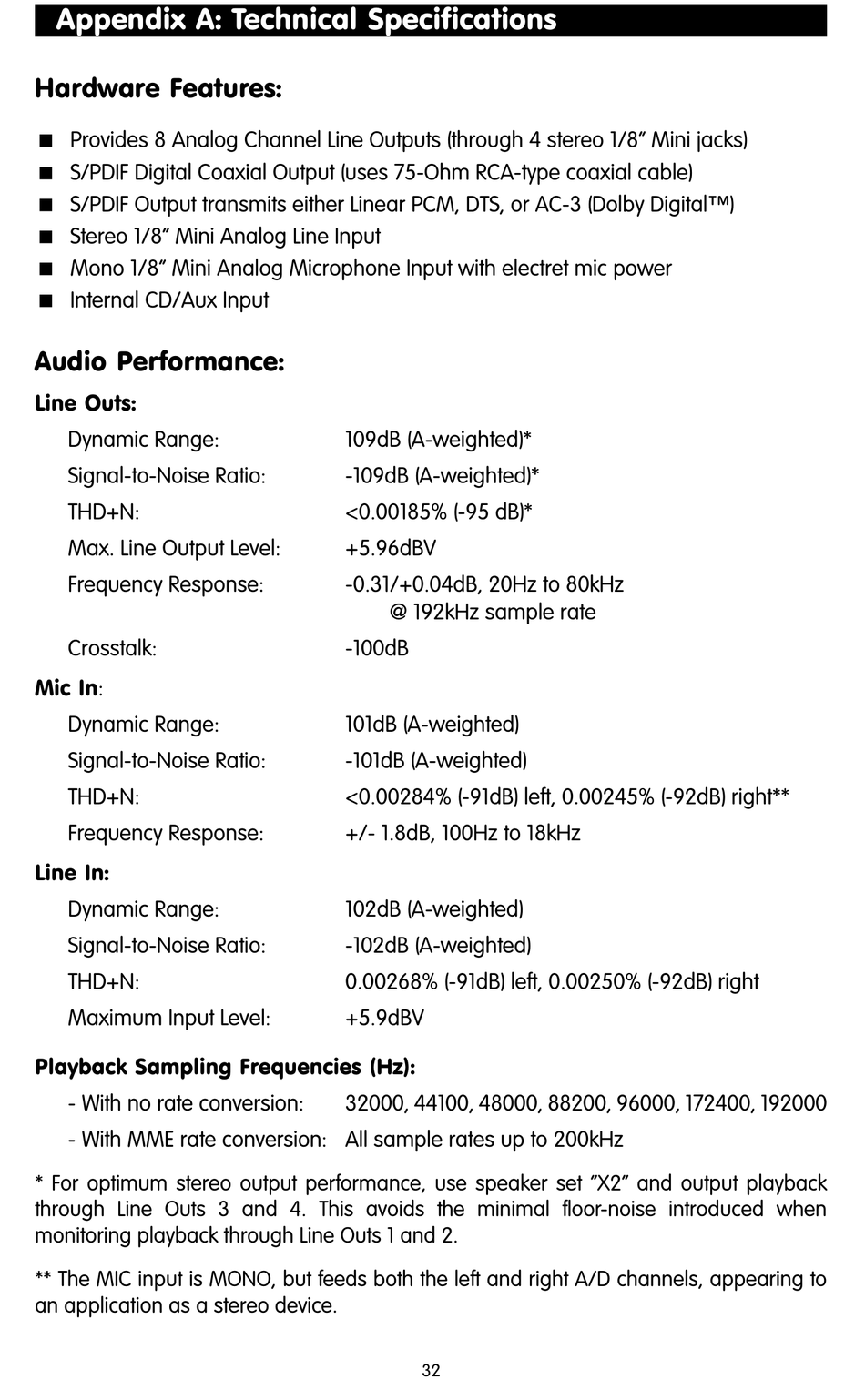

Appendix A: Technical Specifications

Hardware Features:

Provides 8 Analog Channel Line Outputs (through 4 stereo 1/8" Mini jacks)
S/PDIF Digital Coaxial Output (uses 75-Ohm RCA-type coaxial cable)
S/PDIF Output transmits either Linear PCM, DTS, or AC-3 (Dolby Digital™)
Stereo 1/8" Mini Analog Line Input
Mono 1/8" Mini Analog Microphone Input with electret mic power
Internal CD/Aux Input

Audio Performance:

Dynamic Range:
Line Outs:
Signal-to-Noise Ratio:
THD+N:
Max. Line Output Level:
Frequency Response:
Crosstalk:
Dynamic Range:
Mic In:
Signal-to-Noise Ratio:
THD+N:
Frequency Response:
Dynamic Range:
Line In:
Signal-to-Noise Ratio:
THD+N:
Maximum Input Level:
- With no rate conversion:
Playback Sampling Frequencies (Hz):
- With MME rate conversion: All sample rates up to 200kHz
* For optimum stereo output performance, use speaker set "X2" and output playback
through Line Outs 3 and 4. This avoids the minimal floor-noise introduced when
monitoring playback through Line Outs 1 and 2.
** The MIC input is MONO, but feeds both the left and right A/D channels, appearing to
an application as a stereo device.
109dB (A-weighted)*
-109dB (A-weighted)*
<0.00185% (-95 dB)*
+5.96dBV
-0.31/+0.04dB, 20Hz to 80kHz
@ 192kHz sample rate
-100dB
101dB (A-weighted)
-101dB (A-weighted)
<0.00284% (-91dB) left, 0.00245% (-92dB) right**
+/- 1.8dB, 100Hz to 18kHz
102dB (A-weighted)
-102dB (A-weighted)
0.00268% (-91dB) left, 0.00250% (-92dB) right
+5.9dBV
32000, 44100, 48000, 88200, 96000, 172400, 192000
