Owner's Manual

with Assembly Instructions

For Model P4266

• Please read this manual and

save it with your original

sales receipt.

• Tools needed for assembly:

assembly wrench (included)

and a Phillips Screwdriver

(not included).

• Use only with a Power Wheels

12 Volt Lead-Acid Rechargeable

Battery and a Power Wheels

12 Volt Charger (both included).

® ®

Table of Contents

Summary of Contents for Fisher-Price P4266

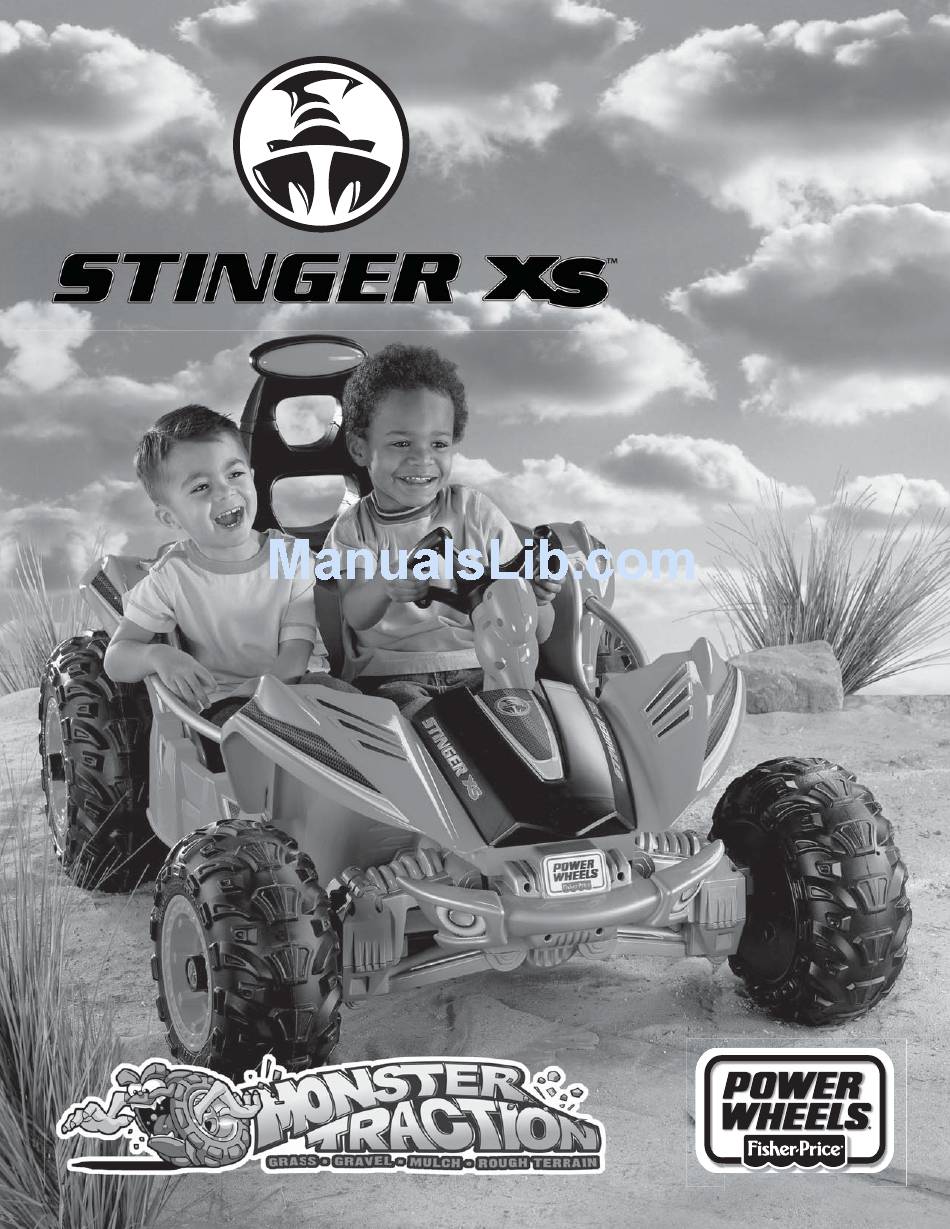

Page 1 Owner's Manual Owner's Manual with Assembly Instructions with Assembly Instructions For Model P4266 For Model P4266 • Please read this manual and • Please read this manual and save it with your original save it with your original sales receipt.
Page 2: Table Of Contents
See the instructions on page 23 for high speed hook- up information. • Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price be responsible for damage to the floor if the vehicle is used indoors.
Page 3 ELECTRICAL HAZARD • To reduce the risk of fi re or electric shock, carefully follow these instructions. To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always close battery door. •...
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
Page 5 2 Sidebar Covers Steering Wheel Cap 2 Front Hubcaps 2 Rear Hubcaps (Left and Right) Assembly Wrench 2 Bushings 2 Front Axle Fastener Caps 2 Rear Axle Caps 12V Battery 12V Charger Part Not Shown: Label Sheet #8 x " Screw - 32 #8 x "...
Page 6: Parts Picture
Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Frame Front Fender - 2 Tail Rear Axle Seat Sidebar - 2 Steering Post Sidebar Cover - 2 Hood Long Seat Belt Bumper Short Seat Belt - 2 Front Wheel - 2 Shock - 2 Rim - 2...
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always close battery door. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
Page 8: Assembly
Battery Charger Connector • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Notes: - Use the charger only in a wall outlet. Do not plug the AC adaptor into a ceiling outlet. - If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.
Page 9 • Fit a rear axle cap onto the end of the rear axle. • Insert a #8 x ¾" screw into the hole in the rear axle and tighten. Rear Axle Cap • Fit the tabs on the rear hubcap into the slots in the rear wheel.
Page 10 Front Axle • Fit a front axle fastener cap onto the upper portion of a front axle. • Align the hole in the axle fastener cap with the hole in the front axle. Hint: You may need to push the front axle towards the front of the vehicle while you insert the screw.
Page 11 • Slide a rim, indented side out, onto the front axle. Assembly Lock Nut • Fit a lock nut onto the end of the front axle and tighten with the assembly wrench. IMPORTANT! Fully tighten the lock nut with the included assembly wrench.
Page 12 Tail FRONT VIEW • Fit the tail into the slots in the back end of the vehicle frame. • Insert eight #8 x ¾" black screws into the tail and tighten. Post Shock SIDE VIEW • First, fit the bottom of a shock into the slot next to the tail. •...
Page 13 Short Seat Belts Folded Folded Folded Folded Note: Make sure the fasteners on both short seat belts face each other. • Fit the folded end of each short seat belt down through the outer slots in the seat. Do not insert the folded tab into the slot.
Page 14 • Insert eight #8 x ¾" screws into the seat and tighten. Sidebar with Curve Out Tabs Tabs • Fit the sidebars into the slots in the vehicle frame and rear fenders. Hint: Each sidebar is designed to fit one way. Make sure the sidebar curves outward and the tabs on the ends fit into the slots in the vehicle and fenders.
Page 15 TOP SIDE VIEW • Insert six #8 x ¾" screws into the fenders and tighten. Bumper FRONT VIEW • Fit the bumper onto the front end of the vehicle. • Insert four #8 x ¾" screws into the bumper and tighten. Hood Pegs •...
Page 16 Steering Post Steering Column • Insert the straight end of the steering column up through the bottom of the steering post, as shown. Steering Column Post Bend in Steering Column Slot Hole TOP SIDE VIEW • Pull the straight end of the steering column up so that only the bend is visible (out from the bottom of the steering column post).
Page 17 Screws • Insert four #8 x ¾" screws into the holes in the bottom of the vehicle (to hold the steering column post and seat) and tighten. Steering Wheel INSIDE VIEW • Turn the vehicle upright. • Fit the steering wheel onto the steering column assembly. Hint: The steering wheel is designed to fit the steering column one way.
Page 18: Decoration
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. •...
Page 19 RIGHT SIDE VIEW LEFT SIDE VIEW P4266pr-0920...
Page 20: Battery Installation
IMPORTANT! Use only a Power Wheels ® rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ® operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle.
Page 21: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
Page 22: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. Riding areas must be: - Away from swimming pools and other bodies of water to prevent drownings - Generally level to prevent tip overs - Away from steps, steep inclines, cars, roads and alleys.
Page 23: Vehicle Operation
See the instructions in this section to remove the high speed lock-out screw. IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors.
Page 24: Vehicle Care
VEHICLE CARE • Check all screws, lock nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.
Page 25: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels Monday through Friday and 11 AM - 5 PM (EST) Saturday. Or, contact your local Power Wheels location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.
Page 26: Problem Possible Cause
PROBLEM POSSIBLE CAUSE Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful...
Page 27 PROBLEM POSSIBLE CAUSE Vehicle runs in low speed, but High speed lock-out not disconnected does not run in high speed. Please note: The vehicle is designed to operate in low speed only in reverse. When the foot pedal is pressed Operation of vehicle in low speed one rear wheel spins Sometimes the vehicle doesn’t...
Page 28 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2009 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
