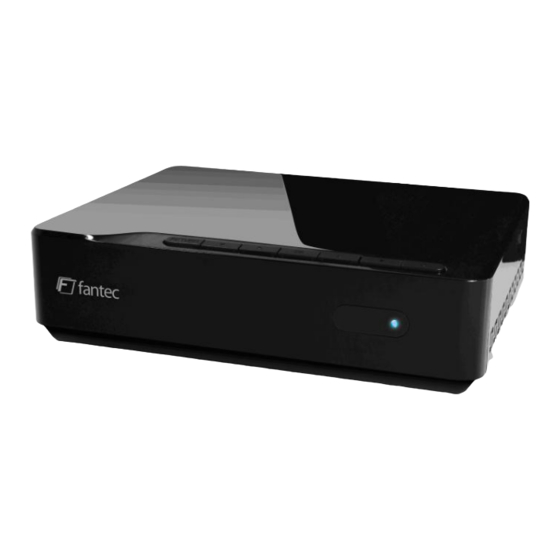

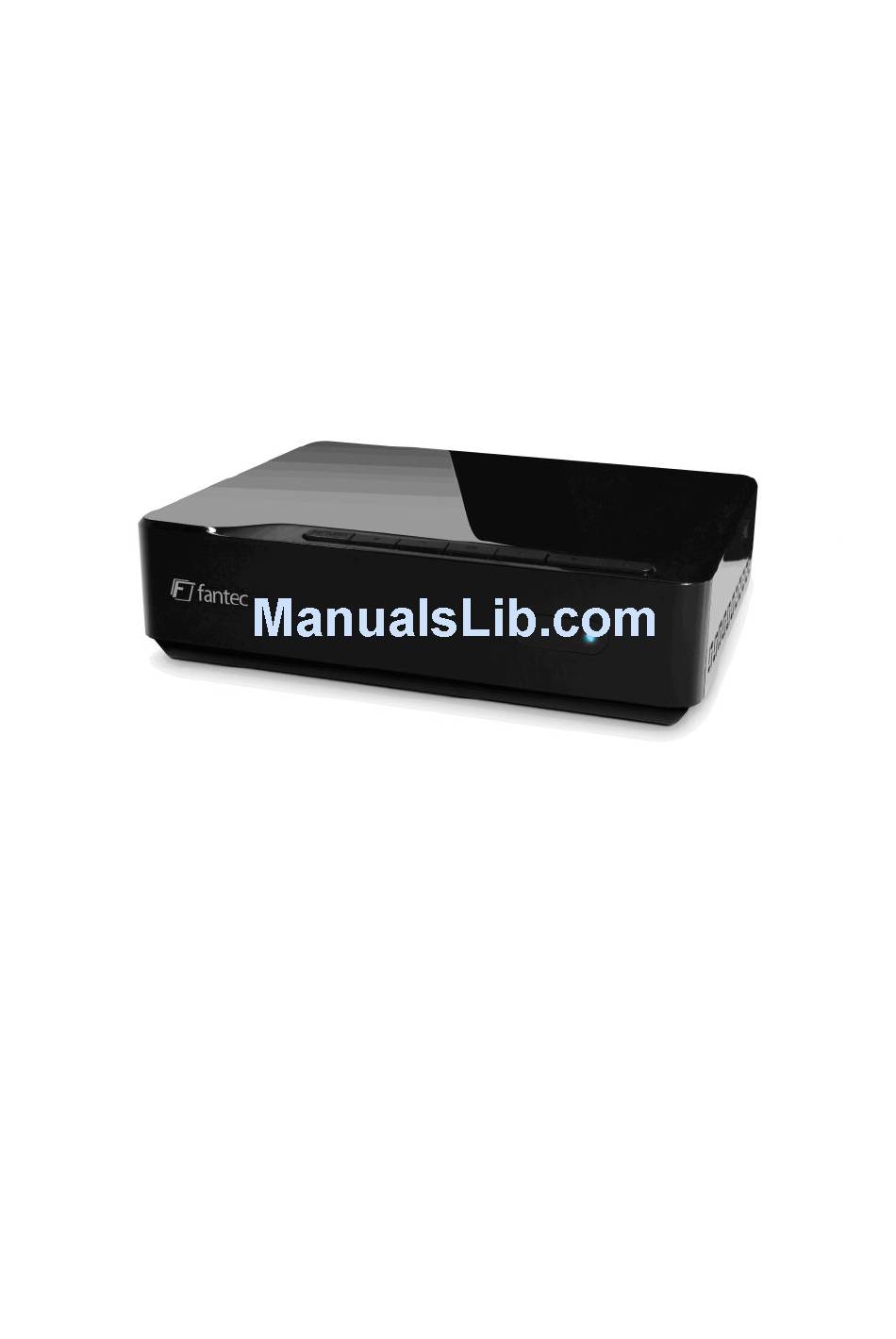

- Page 1 FANTEC RayPlay U3 User Manual...
-
Page 2: Table Of Contents
Contents 1. Introduction ..................2 1.1 Preface ..................2 1.2 Packing List ................3 1.3 Cautions ..................4 1.4 About the Player................ 7 2. Remote control ................9 3. Install HDD ..................12 3.1 HDD Mounting ................ 12 3.2 HDD Format ................13 4. -
Page 3: Introduction
1. Introduction 1.1 Preface Thank you very much for purchasing FANTEC RayPlay U3. We hope you will enjoy using it as a great home entertainment partner. This player has the following functionality. A/V Output HDMI V1.3 for high-definition video and digital audio ... -
Page 4: Packing List
Photo format: HD JPEG, JPG, BMP, GIF, TIF, PNG, Photo slide show with background music File Copy Supports copying & moving files among USB devices and local HDD, USB Support USB 3.0 DEVICE (for computer connection) USB 2.0 HOST (for USB storage devices and USB-DVD drive) ... -
Page 5: Cautions
Note: The actual contents in the package might be different from the packing list in this manual. 1.3 Cautions The FANTEC RayPlay U3 design and manufacture has your safety in mind. In order to safely and effectively use this player, please read the following before usage. - Page 6 (2) This player could accept some interference received including interference that may cause undesired operation. 1.3.4 Repair If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.
- Page 7 1.3.7 Others When using this player, please do not let the player come into contact with water or other liquid, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not press the buttons too hard.
-
Page 8: About The Player
1.4 About the Player 1.4.1 Front Side Name IR receiver Status LED (Red = Standby, Blue = ON) 1.4.2 Upper Side EN -7-... - Page 9 Name RETURN, Back to previous screen Left Right OK, confirm selection Down On / Off power button 1.4.2 Back Side Name Coaxial output Audio output left Audio output right Video output (CVBS) DC IN (12V input) USB 3.0 PC device connector RESET button HDMI output EN -8-...
-
Page 10: Remote Control
2. Remote control All procedures in this manual can be carried out using the remote control buttons. See the following for details on each button and its function: EN -9-... - Page 11 Button Definition Power on/off Press to mute the audio output Numeric buttons GOTO Press to select time to play INFO Display file information SLOW Press for slow motion playback ZOOM Press to zoom in the image (Video/Photo) REPEAT Press to change the repeat mode (Off/Repeat all/Shuffle music) Press to set start and end point for endless loop playback of fragments inside of video files...
- Page 12 720P, 1080I, and 1080P AUDIO Press to change audio track SUBTITLE Press to show subtitle interface for setting 16:9/4:3 Press to switch between 16:9 and 4:3 mode RED button Press for additional function at the on screen menu GREEN button Press for additional function at the on screen menu EJECT Press to disconnect USB storage drives...
-
Page 13: Install Hdd
3. Install HDD 3.1 HDD Mounting EN -12-... -
Page 14: Hdd Format
Description Remove the 2 screws from the rear panel Remove the 4 screws from bottom plate Remove the 4 screws from the HDD tray Put the HDD onto the tray Fix the HDD at the tray Fix the HDD incl. Tray to the bottom plate Connect the HDD with the SATA data cable and with the power cable and then fix the bottom plate at the enclosure... -
Page 15: Setup
4. Setup In the Main Menu use the LEFT and RIGHT buttons to select Setup item and press OK button to enter the menu. The Setup Menu is divided into four sections: EN -14-... -
Page 16: System
System: Associated with the entire system environment settings, such as Menu Language, Text Encoding, USB-DVD Auto Start, Screen Saver, Mini Keyboard Language, Scan Storage, Resume Play, Auto Playback after power-on, Format and Factory Default. Audio: Night Mode, HDMI Output, SPDIF Output, Surround Sound Video: Aspect ratio, TV system, Video zoom, 1080P 24Hz, Play the directory, Deep color... - Page 17 4.1.4 Screen Saver This setup is to enable or disable the screen saver function Use UP and DOWN buttons to select Off, 30 s, 1, 3, 5, 10 or 30 minutes and OK button to confirm. 4.1.5 MiniKBD Language Select the language of on screen virtual Mini Keyboard. 4.1.6 Scan storage This item is to set the scan mode of the storage detection.
-
Page 18: Audio
4.2 Audio This menu is to set audio environment. 4.2.1 Night Mode Choose between Off / On / Comfort. If comfort is turned on, the audio output volume will be decreased to make you more comfortable. 4.2.2 HDMI Output This setting is optional HDMI Audio on the output mode, including: LCPM: Linear pulse code modulation two channel LCPM Multi-Channel: Linear pulse code modulation Multi-Channel... -
Page 19: Video
4.2.4 Surround Sound Select the Surround Sound effect: 5.1, 7.1 4.3 Video This menu is to set up video environmental settings. 4.3.1 Aspect Ratio Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected. - Page 20 4.3.2 TV System This item can choose TV system, options include Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ. 4.3.3 Video Zoom This item is to enable or disable the zoom in/out function.
-
Page 21: Misc
4.4 MISC Other miscellaneous settings. 4.4.1 Version Info List of various version information including firmware information. 4.4.2 USB Upgrade Select USB upgrade to update the firmware via a USB stick. 1) Copy ‘install.img’ to the root directory of a USB stick, and connect it to the USB HOST port of the player. - Page 22 5.1.1 Browsing Files In the File Manager menu you can you following buttons of the remote control: Navigational buttons, PLAY, NEXT + PREVOIUS for page up and down, and OPTION. The OPTION button will open the sub-menu with following functions: Thumbnail, List, Preview, All Media, Movie, Photos, Music The yellow marked option displays the currently selected function.
- Page 23 5.1.1.1 Thumbnails This item is to set the browser to thumbnail mode. 5.1.1.2 List This item is to set the browser to list mode. 5.1.1.3 Preview This item is to set the browser to preview mode. When you focus on file, it will play video or display a picture and show some information in the preview window.
-
Page 24: History
5.2 History The History menu displays up to 10 recently played video files that have been interrupted during the playback. You can continue this video at the point at which the playback was stopped. In the History menu, you can use the following buttons on the remote control: Navigational buttons, PLAY, NEXT + PREVOIUS for page up and down, OPTION and GREEN button. -
Page 25: Movie
Note: The History will only be saved if you enabled "Resume playback" in the Setup. Please see point 4.1.7 for more details. 5.3 Movie In the Movies menu all supported video files are displayed. You can browse all video files and can play the video file that you have selected. -
Page 26: Music
Subtitle: Enable subtitle and change position, size, synchronous tuning, text encoding, subtitle color Audio: Change the audio track if available GOTO: Press to jump to a specific point on a title. Specify the point using by Time, Title or Chapter Set repeat mode: Repeat Title, Repeat All, Repeat Off Video Setting: Set Brightness, Contrast, Saturation, Hue 5.4 Music... -
Page 27: Photo
Search, Thumbnails, List, Preview, Go to Folder, All Songs, Albums, Artists, Genres, Years, Playlists, Recently Played, recently Added, Name. The yellow marked option displays the currently selected function. During the playback you can press the OPTION button and select between following options: Repeat Off, Repeat One, Repeat All: Set repeat mode Shuffle Loop: Randomly select file in the play list during playback 5.5 Photo... - Page 28 Search, Thumbnails, List, Preview, Photo Directory, Folder View, Date View, All Photos and Albums. The yellow marked option displays the currently selected function. During the playback you can press the OPTION button and select between following options: Slide Timing: Setting the display time of each picture. Slide Transition: Optional special effects when switch picture Set repeat mode: Repeat Off, Repeat All Shuffle Loop: Randomly select files during Slide Show...
-
Page 29: Using The Auto Start Function
6. Using the Auto Start function The auto start function enables automatic playback of video, music or photo files directly after switching on the device. You can store the files on the internal hard disk or even on an USB drive . The repeat mode for video playback (One file, All files, Repeat off) can be set or changed during the playback and is preserved even after rebooting the device. -
Page 30: Appendixes
8. Appendixes 8.1 Specifications I/O INTERFACES SUPORTED: 3.5’’ SATA HDD USB 2.0 HOST port (compatible to USB 1.1) USB 3.0 DEVICE port (connecting to PC) Composite (CVBS) A/V jack HDMI V1.3 interface S/PDIF coaxial jack ... - Page 31 AUDIO CODECS SURPORTED: MP2/3, OGG Vorbis, WMA (DRM, and Advanced Profile not supported), PCM, LPCM, MS-ADPCM, COOK, RA-Lossless SUBTITLE FORMATS SURPORTED: SRT, SMI, SSA, ASS, IDX/SUB, SUB PHYSICAL DIMMENSION: 185 x 145 x 50mm (WxDxH) POWER:: Input: 100-240V ~ 50/60Hz, 0.5A Max.
-
Page 32: Frequently Asked Questions
8.2 Frequently Asked Questions Question 1. When I try to disconnect the USB device, I keep on getting “The device „Generic volume‟ cannot be stopped right now. Try stopping the device again later.” message, what should I do? Answer: Close any program that might be accessing data on the player, including Windows®... -
Page 33: Copyrights And Trademarks
Question 4. My files have disappeared from the player. Answer: Make sure that you browse your files via the correct browser mode which means correct filtered views such as Photos, Music, or Movies. Question 5. During power on, why does the TV will have a short flashing, blue screen or screensaver? Answer: This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to... -
Page 34: Warranty
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. -
Page 35: Gpl Statement
8.5 GPL Statement This product contains free software which is licensed under the GNU General Public License. After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in this product. To obtain a copy of our open source software, please contact our support center and we will provide you with a CD-ROM of the source code that is used, charging only the actual expense involved. - Page 36 Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it.
