Summary of Contents for Fantec 4KS6000
- Page 2 1. Introduction 1.1 Foreword Thank you for choosing the FANTEC 4KS6000. We wish you a lot of fun and enjoyable entertainment with this Android media player. (Due to the regular development of our products, these instructions may differ from the product or the software.)
-
Page 3: Packaging Content
(Note: the current packaging content may vary.) 1.3 Warnings To use the FANTEC 4KS6000 media player safely and efficiently, please read the manual first. 1.3.1 Usage Notice - Do not try to change the hardware or firmware of the device, as this will void the warranty. -
Page 4: Radio Interference
(2) The player may be impaired in function by radio radiation from other devices. 1.3.4 Repair - In case of a problem, please contact FANTEC Service. - Never open the device in order to correct any errors yourself. - Do not try to repair the player or change the design, as this will void your warranty. -

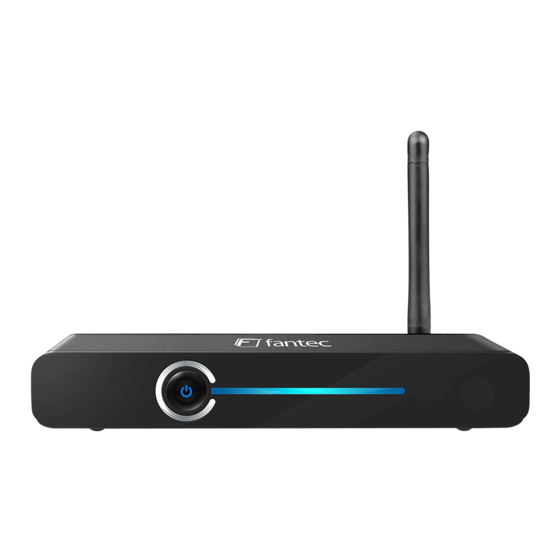

Page 5: Front View
1.4 View Front view 1. Power switch with status LED (standby: red, switched on: blue) 2. IR receiver Back View... - Page 6 1. WLAN antenna 6. HDMI connection 2. S/PDIF optical audio output 7. LAN connection 3. Video output (composite) 8. Upgrade button 4. Audio (left stereo channel) 9. 5V DC IN power connection 5. Audio (right stereo channel) Seitenansicht 1. USB 3.0 connection 3.
- Page 7 1.6 First steps If you are using the player for the first time on your TV, make the following settings: * Language menu, * Network settings, * Screen size. 1.6.1 Setting the system language of the device The following settings can be performed better with the support of a USB mouse. You can also activate mouse support for the remote control by pressing the „mouse“...
- Page 8 1.6.2 LAN connection For the LAN connection you need a network cable (not included). Connect the LAN port of the player to a port on your router, switch or hub. Under „Settings“ → „Network“ you can determine the IP address of the LAN connection. To edit the network settings, go to „Settings“...
- Page 9 2. Operating instructions 2.1 Remote control Below you will find details on the key assignment and the functions: Taste Funktion Switch the device on or off Programmable keypad Switch 3D mode on or off Decrease or increase the volume Play or pause a file Call next / previous file or jump forward / backward Activates the screen mouse...
- Page 10 TV remote control: after the red LED has flashed 3 times, the programming is completed successfully. Now you can use the remote control of the FANTEC 4KS6000 to switch your TV on and off. 4. If you want to assign additional keys, repeat steps 1 to 3.
- Page 11 There are various setting options available, including network, view, play and more. Use the navigation buttons to select a menu. Press OK to confirm. Press back to return to the previous menu. 3.1.1 Changing further settings In this menu, you configure the system settings. The user interface is based on the Android operating system.
- Page 12 3.2 Install APPs Typically, APPs are downloaded and installed through the Google Play Store. To use this feature, you must have a free Google Account. Of course, a new account can be created via the device. Please go to the Play Store APP and follow the steps to register your account.
- Page 13 be assigned automatically). 3. To access the media player from the PC, press the key combination „Win+R“ on the keyboard and enter in the field the IP address according to the following scheme \\ 192.168.10.136 and confirm the entry with the Enter key.
- Page 14 4. FAQ (frequently asked questions) 1. How can I add / remove an app to / from the main menu? Add: Click the icon in the main menu > Select the wanted app > Press the OK button on the remote control > this markst he wanted APP with a green tick, then press the „Return“...
- Page 15 3. How can an APP be started automatically after switching on the device (Autostart or default start)? Go to the APP Manager > Select the wanted APP > Press the menu button on the remote control > this will mark the APP as an Autostart APP > Press the OK button on the remote control.
-
Page 16: Copyrights And Trademarks
As a final action, either the order of the languages must be set so that „German“ is first on the list, or the superfluous languages must be removed. 5. Copyrights and Trademarks Copyrights Alle Rechte vorbehalten. Kein Teil dieses Benutzerhandbuches darf ohne schriftliche Erlaubnis des Copyright Inhabers reproduziert, auf einem Datenspeicherungssystem gesichert oder auf eine elektronische, mechanische, fotokopierte, aufgenommene oder anders verbreitet werden. -
Page 17: Gpl Statement
Furthermore you can use the E-Mail address oss@fantec.de to receive information about licenses, copyright notices and used open-source packages. If specifically programmed software by FANTEC is included on the device, this or other software may be subject to other licenses. - Page 18 Konformitätserklärung / Declaration of conformity: Hiermit erklären wir, dass der Artikel mit den Bestimmungen der RL 2014/53/EG übereinstimmt. Konformitätserklärung / Declaration of conformity: http://www.fantec.de/unternehmen/bestimmungenrichtlinien/ce/ Tippfehler, Irrtümer und Änderungen vorbehalten. Abbildungen ähnlich. © FANTEC GmbH, 2019 - Alle Rechte vorbehalten. Handbuch Version: V1.0...
