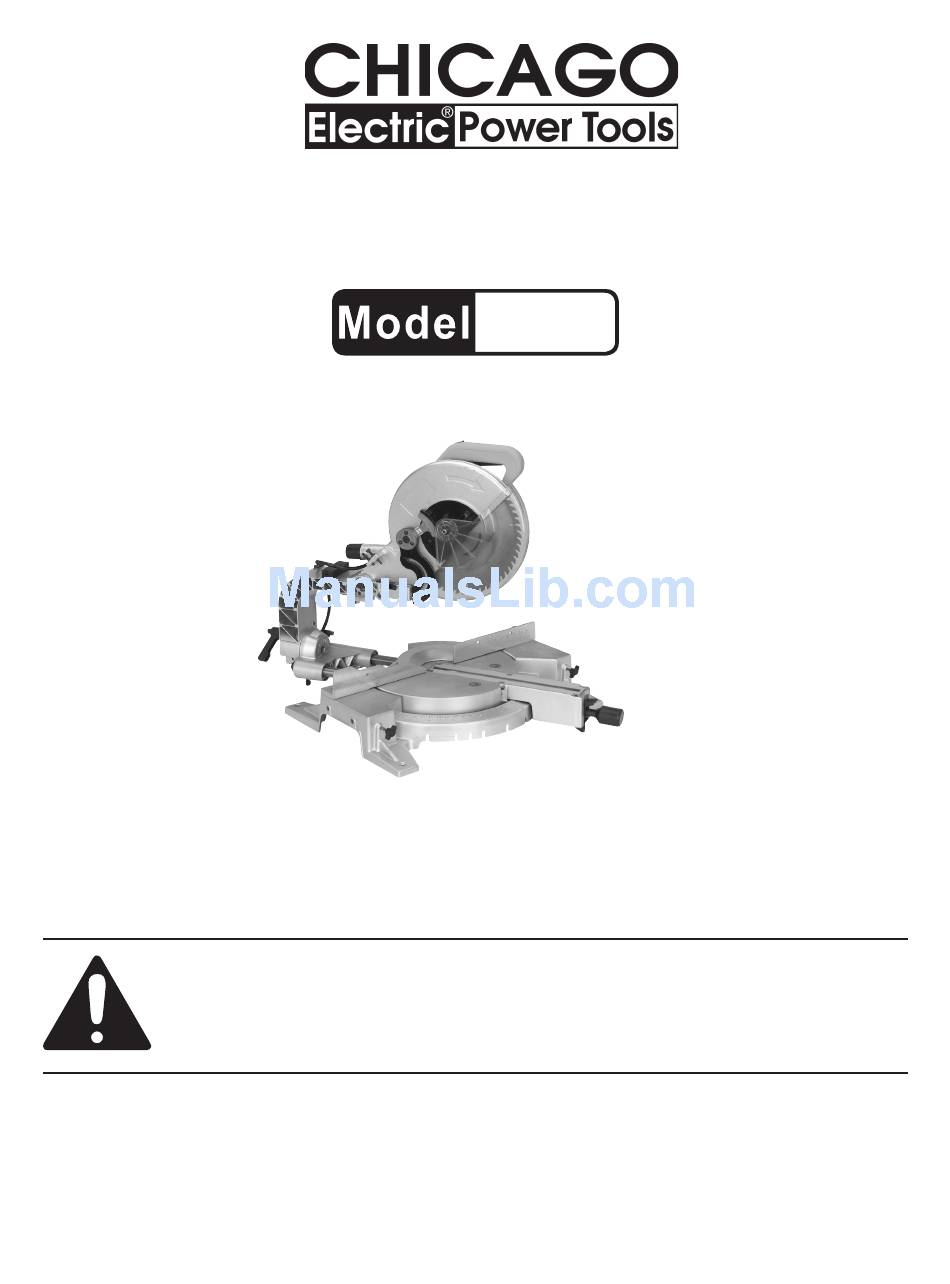

12" COMPOUND SLIDE
ASSEMBLY And OpErAting inStructiOnS
distributed exclusively by Harbor Freight tools
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
SAVE tHiS MAnuAL.
Copyright
2008 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
MITER SAW
3491 Mission Oaks Blvd., Camarillo, CA 93011
. All rights reserved. No portion of this manual or any artwork
®
91852
.
®

Advertisement

Table of Contents
loading

Related Manuals for Chicago Electric 91852

Summary of Contents for Chicago Electric 91852

  • Page 1 Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

  • Page 2: Product Specifications

    Do not operate power tools in explosive atmospheres, such as in the pres- ence of flammable liquids, gases, or dust. Power tools create sparks which may ignite flammables. REV 06/05; REV 02/06 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 2...

  • Page 3: Electrical Safety

    Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 3...
  • Page 4 SERVICE Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 4...

  • Page 5: Specific Safety Rules

    Maintain labels and nameplates on the Miter Saw. These carry important information. If unreadable or missing, contact Harbor Freight Tools for a replace- ment. Do not force the equipment. This Miter Saw will do the work better and safer at the speed and capacity for which it was designed.
  • Page 6 Saw Blade to cut without being forced. When turning off the Saw, allow the Saw Blade to spin down and stop on its own. Do not press against the Saw Blade to stop it. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 6...
  • Page 7 Always turn off the Miter Saw and unplug the Power Cord (27) from its electrical outlet before changing accessories or performing inspection, maintenance, or cleaning procedures. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 7...

  • Page 8: Grounded Tools: Tools With Three Prong Plugs

    The green wire in the cord must be the only wire connected to the tool’s grounding system and must never be attached to an electrically “live” terminal. (See Figure A.) For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 8...

  • Page 9: Double Insulated Tools: Tools With Two Prong Plugs

    Association, and the National Electrical Code. (See Figure B.) Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration. (See Figure B.) FIGURE B For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 9...

  • Page 10: Extension Cords

    5.1 – 7.0 7.1 – 12.0 12.1 – 16.0 16.1 – 20.0 * Based on limiting the line voltage drop to five volts at FIGURE C 150% of the rated amperes. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 10...
  • Page 11 When unpacking, check to make sure all the parts shown on the Parts Lists on pages 23 and 26 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible.
  • Page 12 Loosen the Screw (57) that holds the Center Cover (56) in place. Then, remove the Screw (62). (See Figure F, next page.) Rotate the Center Cover (56) up and out of the way. (See Figure G, next page.) For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 12...

  • Page 13: Front View

    LOOSEN SCREW (57) FIGURE F Depress the Spindle Lock (77) to keep the Saw Blade (4) from turning. (See Figure H.) CENTER SPINDLE LOCK COVER (77) (56) FIGURE G FIGURE H SKU 91852 For technical questions, please call 1-800-444-3353. PAGE 13...
  • Page 14 CAUTION! Make sure to pull out on the Knob (124). Turn the Knob 90 degrees. Then, insert the Knob into the shallow slot in its unlocked posi- tion. NEVER use the Knob in any cutting operation. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 14...
  • Page 15 WING SCREW CLAMP ASSY. (103) (96, 99, 109, 111) BAFFLE PLATE (104) WING SCREW (103) HOLDER (105) HOLDER (105) BAFFLE PLATE (104) WING SCREW (103) FENCE GUIDE (97) FIGURE K For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 15...

  • Page 16: Blade Case

    Button (37) to return to the “OFF” position. (See Figure M.) Do not force the Switch Lever (41) if the Safety Button (37) is not working prop- erly. This will damage the Switch Lever mechanism. (See Figure M.) For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 16...

  • Page 17: Laser Switch

    With the screw loosened, the laser may be pivoted left/right for proper alignment. Then retighten the screw. Note: Use a #1 Philips screwdriver. LASER SWITCH (136) BATTERY BOX (143) LASER ASSY. (148) FIGURE N REV 03/06, REV 08i, 08k For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 17...
  • Page 18 (159) to keep the two Bolts (133A, 133B) from moving. (See Photo Above) After adjusting the two Bolts (133A,133B), press down on the Miter Saw and REV 07/05;REV 12/05 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 18...
  • Page 19 Miter Scale located on the Base (100). Then, retighten the Fas- ten Knob (153) to lock the Miter Saw in place. (See Figure Q.) WORK TABLE FASTEN KNOB (87) (153) FIGURE Q BASE (100) REV 12/05 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 19...

  • Page 20: Lock Lever

    Plug the Power Cord into the nearest 120 volt, grounded, electrical outlet. Depress the Safety Button (37) with your thumb, and squeeze the Switch Lever (41). Then, release the Safety Button. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 20...

  • Page 21: Inspection, Maintenance, And Cleaning

    Saw Blade (4), and any other condition that may affect its safe operation. If abnormal noise or vibration occurs, have the problem corrected before further use. Do not use damaged equipment. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 21...

  • Page 22: Please Read The Following Carefully

    ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 22...

  • Page 23: Parts List

    PARTS LIST NOTE: Some parts are listed and shown for illustration purposes only, and are not available indi- vidually as replacement parts. REV 07/06 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 23...
  • Page 24 PARTS LIST - CONTINUED NOTE: Some parts are listed and shown for illustration purposes only, and are not available indi- vidually as replacement parts. REV 07/05; 12/05 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 24...

  • Page 25: Assembly Diagram

    ASSEMBLY DIAGRAM REV 07/05; 12/05; 07/06 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 25...
  • Page 26 ASSEMBLY DIAGRAM- CONTINUED NOTE: Part # 143, Battery Box, is located on the bottom of the Arm Holder Complete (Part# 156). REV 03/06 For technical questions, please call 1-800-444-3353. SKU 91852 PAGE 26...

  • Page 27: Limited 1 Year / 90 Day Warranty

    LIMITED 1 YEAR / 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that for a period of ninety days from date of purchase that the engine/motor, the belts (if so equipped), and the blades (if so equipped) are free of defects in materials and workmanship.
