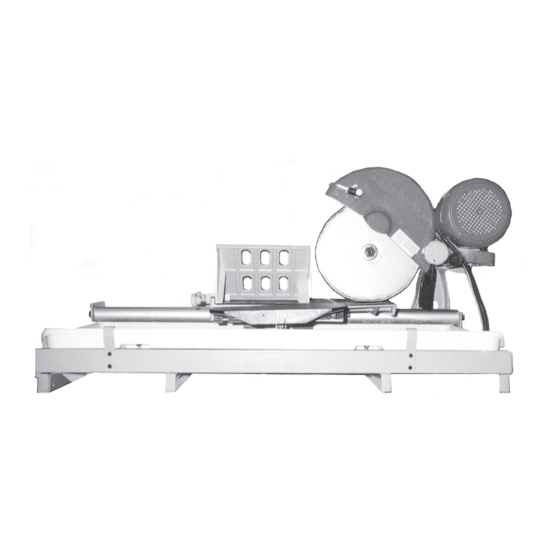

10" TILE SAW
24" DEEP CUT - 2.5 HP
Model 91482
ASSEMBLY AND OPERATING INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
©
®
Copyright 2004 by Harbor Freight Tools
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
Advertisement
Table of Contents
Related Manuals for Chicago Electric 91482
Summary of Contents for Chicago Electric 91482
- Page 1 10” TILE SAW 24” DEEP CUT - 2.5 HP Model 91482 ASSEMBLY AND OPERATING INSTRUCTIONS ® 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our Web site at: http://www.harborfreight.com © ® Copyright 2004 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
-
Page 2: Product Specifications
GENERAL SAFETY RULES WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. SAVE THESE INSTRUCTIONS REV 04/05 SKU 91482 For technical questions, please call 1-800-444-3353. Page 2... -
Page 3: Work Area
Do not use a power tool while tired or under the influ- ence of drugs, alcohol, or medication. A moment of inattention while operat- ing power tools may result in serious personal injury. SKU 91482 For technical questions, please call 1-800-444-3353. Page 3... - Page 4 Maintain tools with care. Keep tools clean. Properly maintained tools are easier to control. Do not use a damaged tool. Tag damaged tools “Do not use” until repaired. SKU 91482 For technical questions, please call 1-800-444-3353. Page 4...
-
Page 5: Grounded Tools: Tools With Three Prong Plugs
(See Figure A, next page.) SKU 91482 For technical questions, please call 1-800-444-3353. Page 5... -
Page 6: Electrical Outlet
If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum cord size. (See Figure B.) SKU 91482 For technical questions, please call 1-800-444-3353. Page 6... - Page 7 150% of the rated amperes. FIGURE B SYMBOLOGY Double Insulated Canadian Standards Association Underwriters Laboratories, Inc. Volts Alternating Current Amperes No Load Revolutions xxxx/min. per Minute (RPM) FIGURE C SKU 91482 For technical questions, please call 1-800-444-3353. Page 7...
-
Page 8: Specific Safety Rules
RPM will run eccentrically causing loss of control or may fly off the Saw. Use the Tile Saw only for cutting ceramic tile, quarry tile, marble, terra cotta, and slate with a maximum thickness of 3”. SKU 91482 For technical questions, please call 1-800-444-3353. Page 8... - Page 9 Do not press against the Saw Blade to stop it. Do not force the workpiece into the Saw Blade when cutting. Apply moder- ate pressure, allowing the Saw Blade to cut without being forced. SKU 91482 For technical questions, please call 1-800-444-3353. Page 9...
- Page 10 It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. SKU 91482 For technical questions, please call 1-800-444-3353. Page 10...
-
Page 11: Rear View
Slide the Water Tank (3) through the slot in the Machine Frame (11) and under the Aluminum Bar (83), so that the entire Water Tank rests inside the Machine Frame. (See Figure E, next page.) SKU 91482 For technical questions, please call 1-800-444-3353. Page 11... - Page 12 If desired, this saw can be mounted to a Stand (ITEM 91483, not included). See the manual included with the stand for installation instructions. FIGURE G MAIN TABLE (99) EXTENSION TABLE (94) BOLT (93) SKU 91482 For technical questions, please call 1-800-444-3353. Page 12...
-
Page 13: Blade Guard
NOTE: When installing a Saw Blade (65), make sure the “ARROW” depicted on the upper side of the Saw Blade points to the front of the Tile Saw. (See Figure K.) SKU 91482 For technical questions, please call 1-800-444-3353. Page 13... - Page 14 Blade Guard in position. (See Figure L.)] FIGURE I BRAKE SHAFT FIGURE J (68) (67) OUTER FLANGE (66) WRENCH BLADE ROTATION FIGURE L FIGURE K GUARD ARROW KNOB (60) (53) BLADE (65) SKU 91482 For technical questions, please call 1-800-444-3353. Page 14...
- Page 15 Guide. Use the cutting groove in the middle of the Main Table to brace the edge of the tile as the tile is slid underneath the Saw Blade (65). (See Figure N.) ANGLE BLOCK (85) KNOB (86) FIGURE N SKU 91482 For technical questions, please call 1-800-444-3353. Page 15...
-
Page 16: Power Switch
NOTE: If the Motor (45) stops suddenly while cutting, turn the Power Switch to its “OFF” position. Wait approximately 5 minutes. Then reset the Circuit Breaker to resume cutting. (See Figure O.) SKU 91482 For technical questions, please call 1-800-444-3353. Page 16... -
Page 17: Inspection, Maintenance, And Cleaning
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACE- MENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 91482 For technical questions, please call 1-800-444-3353. Page 17... -
Page 18: Parts List
W a te r S u p p ly S y s te m B la d e G u a rd 1 0 8 4 5 ° M ite r B lo c k SKU 91482 For technical questions, please call 1-800-444-3353. Page 18... -
Page 19: Assembly Diagram
ASSEMBLY DIAGRAM 105A 105B 105D 105C NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 91482 For technical questions, please call 1-800-444-3353. Page 19...
