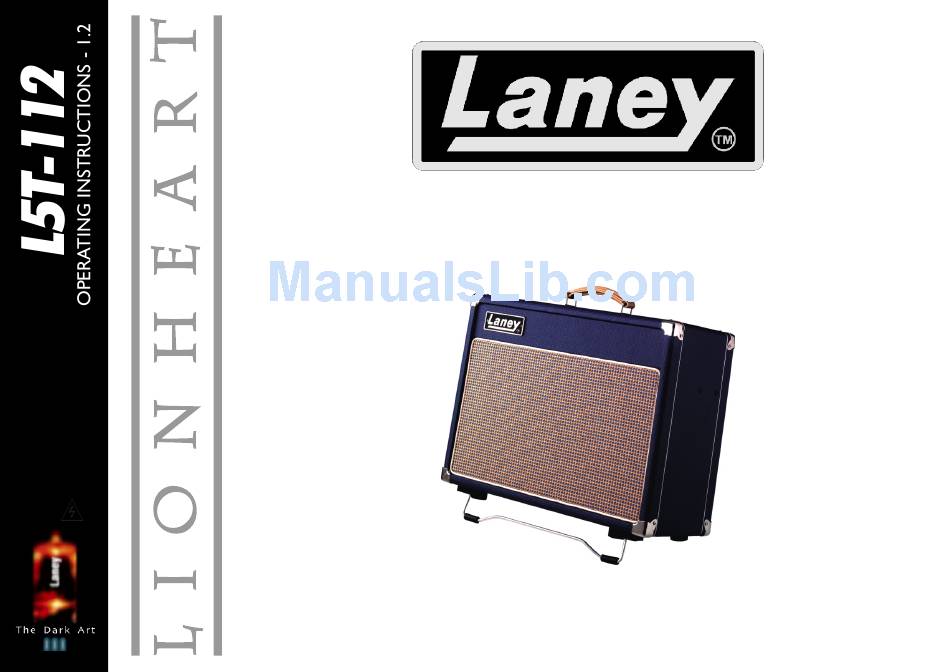

- Page 1 ALL TUBE ‘CLASS A’ HERITAGE AMPLIFIER A N E Y M P L I F I C A T I O N w w w. l a n e y. c o . u k...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric products, basic cautions should always be followed, including the following. 1. Read all safety and operating instructions before using this product 2. The product should be powered by a three pin `grounded (or earthed) plug connected to a power socket with a grounded earth outlet. 3.
- Page 3 Este simbolo tiene el proposito de alertar al usuario de la presencia Intended to alert the user to the presence of uninsulated de ‘(voltaje) peligroso’ que no tiene aislamiento dentro de la caja ‘Dangerous Voltage’ within the products enclosure that may be del producto que puede tener una magnitud suficiente como para sufficient to constitute a risk of electrical shock to persons.
-
Page 4: Before Switching On
For a description of the function of each control feature, simply check the number with the explanations adjacent to each panel. Your Laney amplifier has undergone a thorough two stage, pre-delivery inspection, involving actual play testing. When you first receive your Laney guitar amplifier, follow these simple procedures: (i) Ensure that the amplifier is the correct voltage for the country it is to be used in. - Page 5 Plus with enough gain for contemporary tones, it also has a mean, spiteful side to it as well – making it ideal for any style of playing. Perfect for studio and practice use, but also equally at home or on stage plugged into a Laney LT-212 cabinet, the sound will blow you away.
-
Page 6: Clean Vol
OPERATING INSTRUCTIONS FRONT PANEL CONTROLS HI INPUT: ‘Hi’ stands for high gain. This input is designed for the connection of low output level guitars making it well suited for guitars with single coiled or low gain humbucker type pickups. Use of high gain pickups in this input may drive the preamp too hard causing a "mushy"... -
Page 7: Drive Led
“retro” style sound. DRIVE LED: This led will illuminate when the Drive channel is activated with the Drive switch (8) or the includedl Laney FS2 remote footswitch. DRIVE SWITCH: Switch up to enable the 'Drive' channel. - Page 8 4 ohm setting when connecting to an additional 8 ohm cabinet. Try the L5T-112 into a Laney Lionheart LT-212 cabinet - you will be amazed what this little baby cranks out. Note: If the onboard loudspeaker...
- Page 9 FX send. FOOTSWITCH SOCKET: Provided for the connection of the included Laney FS2 footswitch.This allows you to remotely switch between the clean/drive channel and switch the built in reverb On/Off.
- Page 10 OPERATING INSTRUCTIONS QUICK START SETTINGS - suggestions only, experiment!
- Page 11 OPERATING INSTRUCTIONS USER SETTINGS - Store your own cool sounds...
- Page 12 Typical output tube problems can be blown HT fuse, sound lacking in punch, sound lacks extreme highs or lows and low level hum. Exact replacement preamp tubes and output tubes are available from Laney via your dealer. To change a tube, switch off the unit and unplug from the mains supply. Wait for the tubes to cool down. Lay amplifier down on its front face and remove the protective grille held in place with four screws.
- Page 13 OPERATING INSTRUCTIONS L5T -112 CONNECTIONS SET TO 8 OHMS FX Controller SET TO 4 OHMS L5T -112 WITH EXTENTION CABINET & FX P O W E R TO T H E M U S I C...
-
Page 14: Block Diagram
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS BLOCK DIAGRAM INTERNAL FX SEND FX RETURN 8Ohms The FX loop is LOUDSPEAKER a side chain type 4Ohms BRIGHT CLEAN VOLUME EXT. LOUDSPEAKER 8-16 OHMS BRIGHT HI INPUT LO INPUT REVERB DRIVE DRIVE TONE VOLUME BRIGHT REVERB LEVEL TONE CONTROL... -
Page 15: Specifications
OPERATING INSTRUCTIONS SPECIFICATIONS Supply Voltage: Loudspeaker: ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz Factory Option 12” Celestion G12H Heritage 8 Ohms Mains Fuse: Loudspeaker outputs: (~220V>240V = T250mA L 250V) Switchable 8/4 Ohms (~100V>120V = T500mA L 250V) HT Fuse: Passive Bass, Middle and Treble T100mA L Tone Boost &... - Page 16 M P L I F I C A T I O N w w w. l a n e y. c o . u k In the interest of continued product development, Laney reserves the right to amend product specification without prior notification.
