La Crosse Technology WS-9065TWC Instruction Manual

La Crosse Technology WS-9065TWC Instruction Manual

Wireless 433 mhz radio-controlled weather station
Hide thumbs Also See for WS-9065TWC:
Table of Contents

Advertisement

Quick Links

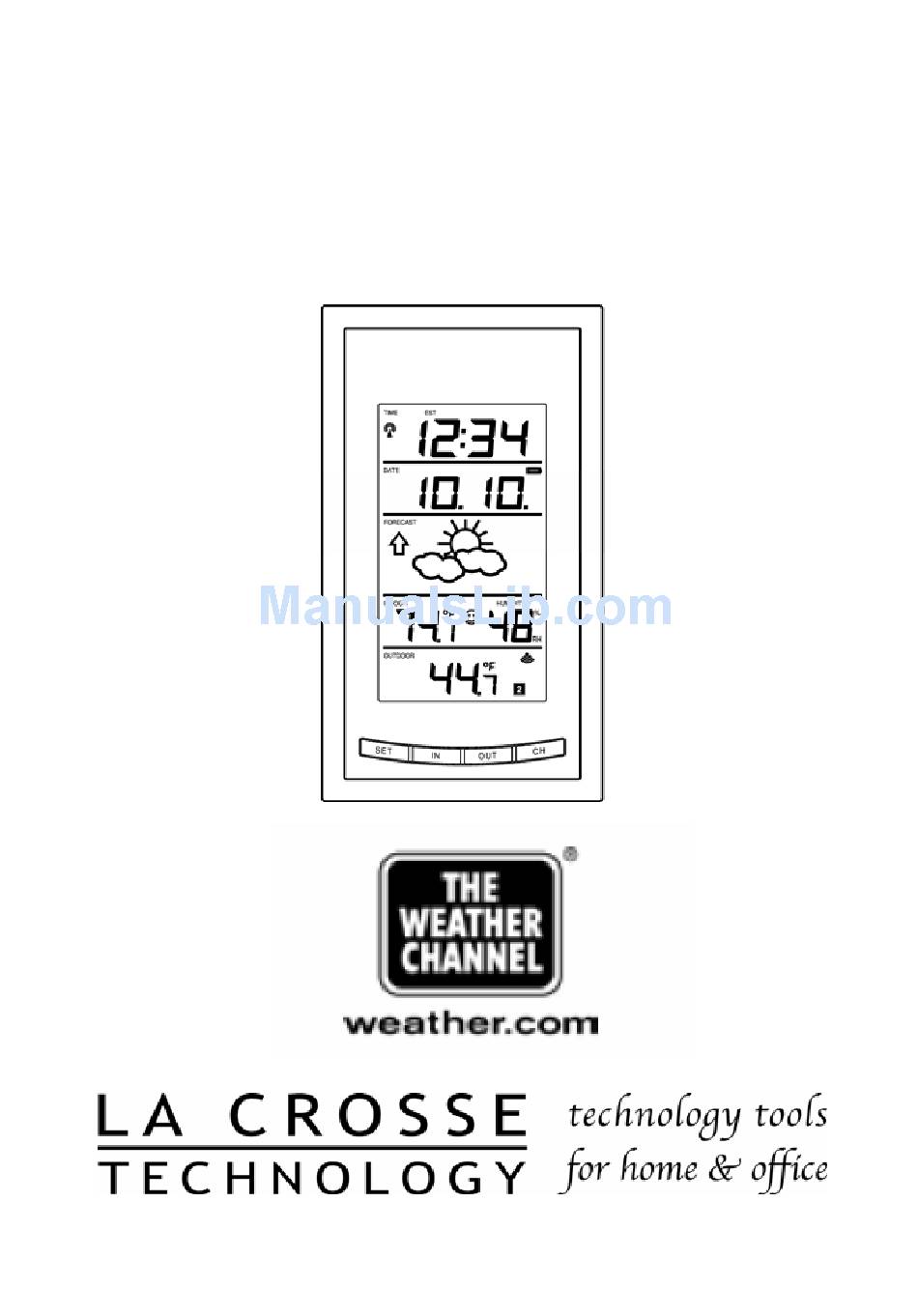

WS-9065TWC
Wireless 433 MHz
Radio-controlled Weather Station
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for La Crosse Technology WS-9065TWC

Summary of Contents for La Crosse Technology WS-9065TWC

  • Page 1 WS-9065TWC Wireless 433 MHz Radio-controlled Weather Station Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Page Inventory of Contents/Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery installation Program Mode Program Sequence and Default Settings Function Keys Setting the LCD Contrast Setting the Time Zone Daylight Saving Time Setting Radio-controlled Time Setting 12/24-hour Time Setting Setting the Time...

  • Page 3: Inventory Of Contents/Additional Equipment

    INVENTORY OF CONTENTS The indoor weather station (Figure 1). One remote temperature sensor with mounting bracket (Figure 2). Three each, ½” Philips screws. One strip double-sided adhesive tape. Instruction manual and warranty card. Figure 1 Figure 2 Time LCD Date LCD Forecast LCD Indoor LCD Outdoor LCD...

  • Page 4: Quick Set-Up Guide

    QUICK SET-UP GUIDE Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. Have the indoor weather station and remote temperature sensor 3 to 5 feet apart. Batteries should be out of both units for 10 minutes. Place the batteries into the remote temperature sensor first then into the indoor weather station.

  • Page 5: Detailed Set-Up Guide

    DETAILED SET-UP GUIDE I. BATTERY INSTALLATION A. REMOTE TEMPERATURE SENSOR Remove the mounting bracket. The bracket snaps on and off easily. Remove the battery cover, by sliding the cover Battery down. Cover Observing the correct polarity install 2 AA batteries. The batteries will fit tightly (to avoid start-up problems make sure they do not spring free).

  • Page 6: Program Mode

    PROGRAM MODE Programming Note: If 30 seconds is allowed to pass, or the CH button is pressed during the programming mode, the unit will confirm/set the last information entered—the display will stop flashing and return to normal time-date readings. If you don’t leave the program mode during the programming of sections IV through XI, you can advance to step 4 of the next program setting.

  • Page 7: Setting The Time Zone

    Press and release the SET button to confirm and advance to the Time Zone setting. TIME ZONE SETTING Press and hold the SET button for 5 seconds. “LCD” will show in the time LCD and the number setting will flash. Press and release the SET button again.

  • Page 8: Radio-Controlled Time Setting

    “DST 0” indicates that the feature is off and the WWVB will not change times automatically. “DST 1” indicates that the feature is on and the WWVB will change times automatically. Note: Some locations (Arizona and parts of Indiana) do not follow Daylight Saving Time, and should select “DST 0.”...

  • Page 9: Setting The Time

    VIII. TIME SETTING There are two methods by which the time and date can be set: A) Automatically via WWVB reception, or B) Manually. A. WWVB (Remote Control Time) This method requires you to do nothing, except wait for the signal to be received, and to select a time zone.

  • Page 10: Setting The Snooze

    Press and release the SET button to confirm and advance to the day/month setting. The day and month will flash in the date LCD. Press and release the IN button to advance the day. Press and release the OUT button to advance the month. 10.

  • Page 11: Weather Forecast Icons And Tendency Arrows

    Press and hold the SET button for 5 seconds. “LCD” will show in the time LCD and the number setting will flash. Press and release the SET button ten times. Either “1”, “2” or “3” will flash in the time LCD. Press and release the IN button to select the forecast sensitivity Press and release the SET button to confirm the forecast sensitivity and complete the programming.

  • Page 12: Indoor Temperature, Humidity, & Comfort

    Sunny—indicates that the weather is expected to improve (not that the weather will be sunny). Sun with Clouds—indicates that the weather is expected to be fair (not that the weather will be sunny with clouds). Clouds with Rain—indicates that the weather is expected to get worse (not that the weather will be rainy).

  • Page 13: Outdoor Temperatures

    III. OUTDOOR TEMPERATURE The temperature received from the remote temperature sensor is viewed in the OUTDOOR LCD. When there is more than one remote temperature sensor unit in operation, a “boxed” number will appear to the right of the temperature. This indicates which remote temperature sensor unit (1, 2, or 3) is currently displaying its data in the OUTDOOR LCD.

  • Page 14: Additional Remote Control Sending Units

    Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-9065U. These extra sensors can be purchased through the same dealer as this unit, or by contacting La Crosse Technology directly. A TX6U will monitor temperature only, a TX3U will monitor temperature and display the temperature on its LCD, and the TX3UP will monitor the temperature via a probe for use in pools, spas, etc.

  • Page 15: Mounting

    In sequential order, install batteries (follow the same battery installation procedures seen in section I. A) of the Detailed Set-Up Guide). Install batteries into the indoor weather station. Follow the Detailed Set-Up Guide for programming and operating instructions. B. VIEWING AND OPERATING WITH MULTIPLE REMOTE TEMPERATURE SENSOR UNITS To view the temperature of a different remote temperature sensor unit, press and release the CH button.
  • Page 16 I. THE REMOTE TEMPERATURE SENSOR The remote temperature sensor can be mounted in two ways: • with the use of screws, or • using the adhesive tape. A. MOUNTING WITH SCREWS 1) Remove the mounting bracket from the remote temperature sensor.

  • Page 17: Troubleshooting

    Gently pull the station down to lock the screw into place. TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology. Problem: No reception of WWVB time signal. Solution: 1) Wait overnight for signal.

  • Page 18: Maintenance & Care

    • Do not submerge in water. • Immediately remove all low powered batteries to avoid leakage and damage. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs.

  • Page 19: Specifications

    SPECIFICATIONS Temperature measuring range: Indoor: 14.2°F to 139.8°F with 0.2°F resolution. (-9.9°C to 59.9°C with 0.1°C resolution). “OF.L” displayed if outside this range. Outdoor: -21.8°F to 157.8°F with 0.2°F resolution. (-29.9°C to 69.9°C with 0.1°C resolution). “OF.L” displayed if outside this range. Indoor relative humidity measuring 1% to 99% with 1% resolution.

  • Page 20: Warranty Information

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 21 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com Questions ? Instructions? Please visit: www.lacrossetechnology.info/9065 FCC DISCLAIMER This device complies with part 15 of the FCC rules.
