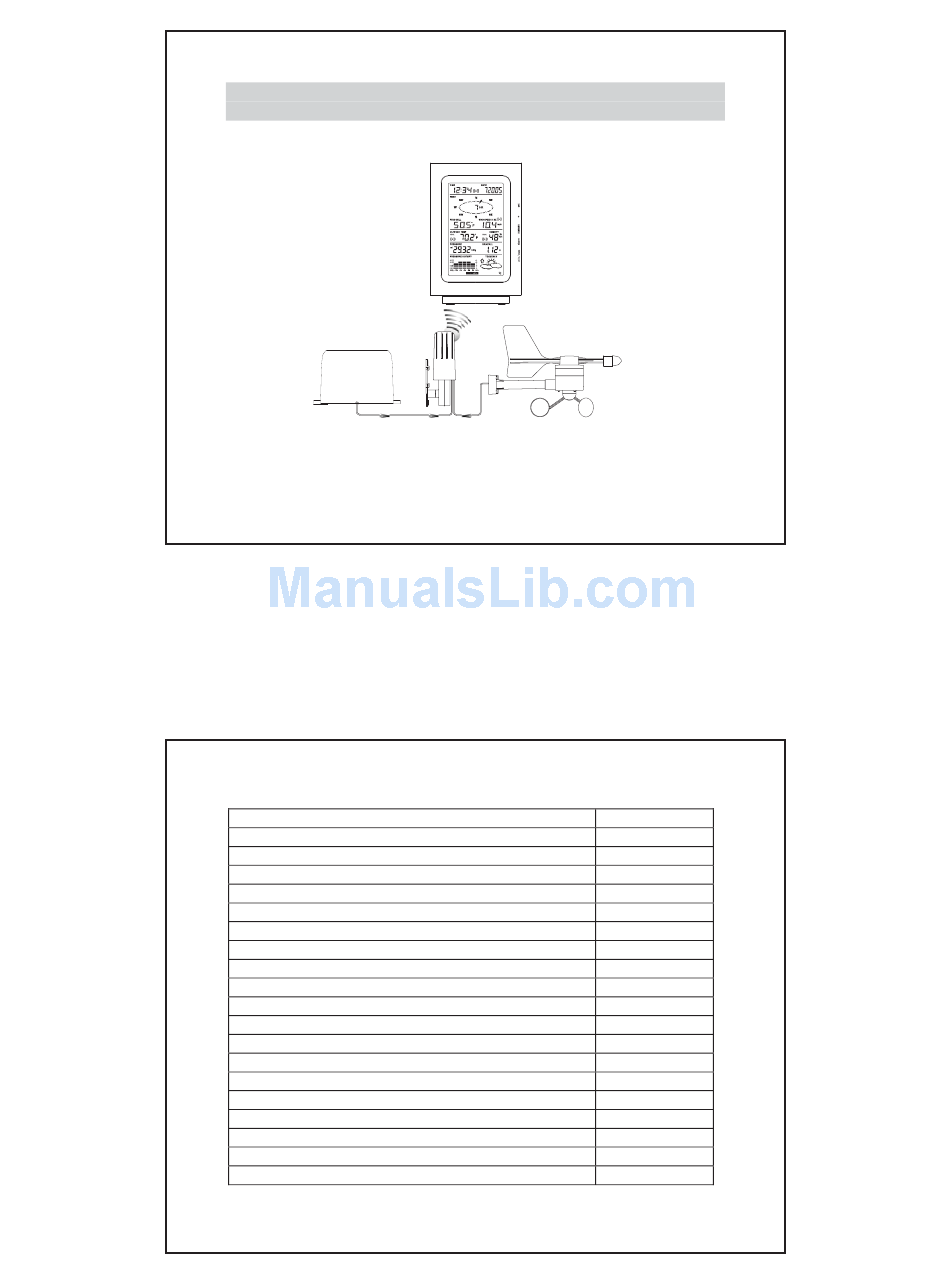

Page 1: Table Of Contents
PROFESSIONAL WEATHER CENTER WS-1611 Operation Manual Table of Contents Topic Page Features Setting up Function keys LCD Screen Manual Setting Time alarm setting Weather alarm operations Hysteresis Weather forecast and weather tendency Wind direction and wind speed measurement Rainfall measurement Viewing history data Viewing the min/ max weather data Switch On/ Off buzzer... -
Page 2: Features
PROFESSIONAL WEATHER CENTER Instruction Manual Congratulations on purchasing this state-of-the-art Professional Weather Center as an example of excellent design and innovative technology. Featuring time, date, calendar, weather forecast, wind direction and speed, rainfall, outdoor temperature and outdoor humidity, air pressure and various alarm settings for different weather conditions, this Weather Center will provide you with extensive weather information and forecast. - Page 3 MIN/MAX value of outdoor temperature and humidity display with time & date of recording Low/High outdoor temperature and humidity alarm Relative air pressure displayed in inHg or hPa Air pressure tendency indicator for the past 12 hours (bar graph format) LCD contrast selectable Low battery indicator Wind direction displayed in 16 steps...
-
Page 4: Setting Up
SETTING UP: Wireless transmission at 915 MHz - thermo-hygro sensor to the Weather Center Weather Center Rain Sensor Wind Sensor Cable connection between Cable connection between the wind sensor and the the rain sensor and the thermo-hygro sensor thermo-hygro sensor Note: When putting the Weather Center into operation, it is important to perform in close proximity (e.g. - Page 5 displayed on the Weather Center. If this does not happen after 30 seconds, the batteries will need to be removed from both units. You will have to start again from step 1. You may then check all cables for correct connection and all components for correct function by manually turning the wind-gauge, moving the weather-vane, tilting the rain sensor to hear the impact of the internally moving seesaw, etc (See Positioning below).
- Page 6 After batteries are installed, there will be synchronization between Weather Center and the sensor. At this time, the signal reception icon will be blinking. When the signal is successfully received by the Weather Center, the icon will be switched on. (If it is not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off).
-
Page 7: Function Keys
and this code must be received and stored by the Weather Center in the first 30 seconds of power being supplied to it. BATTERY CHANGE: It is recommended to replace the batteries in all units every 24 months to ensure optimum accuracy of these units. -
Page 8: Lcd Screen
In the weather alarm setting mode, press and hold to adjust different alarm value and switch the alarm On/Off Press to activate the reset mode when max or min record is shown Stop the alarm during the time alarm or weather alarm ringing + key Press to change the calendar display to the preset alarm time, date, weekday + date or seconds in the time display... -
Page 9: Manual Setting
Low battery indicator Time alarm icon Time display Calendar display Buzzer off indicator Wind direction display and wind speed in Beaufort scale Wind speed Hi/ Lo alarm icon Wind Chill in F or C Wind speed in mph, km/h ed i mph km/h or m/s Outdoor temperature Outdoor relative... - Page 10 MANUAL TIME SETTING: You then may manually set the time of the clock by following the steps below: Minutes flashing Hour flashing The hour digit will start flashing. Use the + or MIN/MAX key to set the hour. Press the SET key to switch to the minutes. The minute digit will start flashing. Use the + or MIN/MAX key to set the minute.
- Page 11 °F/°C TEMPERATURE UNIT SETTING Flashing The temperature display can be selected to show temperature data in °F or °C. (default °F) The temperature unit is flashing Use the + or MIN/MAX key to toggle between “°F” or “°C”. Confirm with the SET key and enter the WIND SPEED UNIT SETTING WIND SPEED UNIT SETTING Flashing The wind speed unit can be set as mph (mile per hour), km/h (kilometer per hour), or...
- Page 12 RELATIVE PRESSURE REFERENCE VALUE SETTING Note: The default reference pressure value of the barometer is 29.91inHg when batteries are first inserted. For an exact measurement, it is necessary to first adjust the barometer to your local relative air pressure (related to elevation above sea level).
-
Page 13: Time Alarm Setting
STORM WARNING THRESHOLD VALUE SETTING You may also define a switching sensitivity value for the storm warning display at a decrease of air pressure from .09 inHg to .27 inHg over 6 hours (Default 0.15 inHg). Flashing The sensitivity value will start flashing. Use the + or MIN/MAX key to select the value. -
Page 14: Weather Alarm Operations
Press the + or MIN/MAX key to set the minute of the alarm time. Press the ALARM key to confirm. Wait for about 30 seconds and the display will return to normal display mode automatically. In the normal display mode, press the ALARM once key to go to the time alarm setting mode again. - Page 15 Default alarm values: 32qF Temperature High 104qF Relative Humidity High Wind speed High 62.0mph HIGH AND LOW OUTDOOR TEMPERATURE ALARM SETTING Note: The High and Low outdoor temperature alarm can be set On/Off independently, according to your needs. Set the Outdoor temperature alarm value (High or Low alarm value) : In the normal display mode, press the ALARM key twice.
- Page 16 HIGH AND LOW OUTDOOR HUMIDITY ALARM SETTING Note: The High and Low outdoor humidity alarm can be set On/Off independently according to your needs. Set the Outdoor temperature alarm value (High or Low alarm value): In the normal display mode, press the ALARM key 4 times. The High Outdoor Humidity alarm display will be shown.
-
Page 17: Hysteresis
Press the ALARM key once to return to the normal display mode. In case the wind speed exceeds the condition for high wind speed alarm, the value will be flashing, along with the corresponding high alarm icon ("HI AL"). And the buzzer will ring for 2 minutes. - Page 18 However, if the icon displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are already at their extremes. The icons displayed forecasts the weather in terms of getting better or worse and not necessarily sunny or rainy as each icon indicates.
-
Page 19: Wind Direction And Wind Speed Measurement
Air pressure Air pressure changes in inHg changes in hPa The horizontal axis represents the last 12 hours air pressure recording (-12, -9, -6, -3 and 0 hour). The bars are plotted at each of the 5 steps and give the trend over the recorded period. -
Page 20: Rainfall Measurement
RAINFALL MEASUREMENT The total rainfall measurement is displayed in the fourth section of the LCD, in the unit of mm or inch. (see VIEWING THE MIN/MAX WEATHER DATA below) VIEWING THE HISTORY DATA The Weather Center can store up to 200 sets of weather data which are recorded automatically at 3-hour intervals after the weather center is powered up, at the nearest time of 0:00, 03:00, 06:00, 09:00, 12:00, 15:00, 18:00 and 21:00. -
Page 21: Viewing The Min/Max Weather Data
Press MIN/ MAX to view older records. (Press MIN/MAX and + key to view "Previous" and "Next" record respectively. The records are made at 3-hour intervals) Note: The stored history records will not be retained after battery change or whenever battery is removed. - Page 22 Max outdoor humidity with the date and time of recording Time and date or recording MAX outdoor humidity value MAX icon Min Wind chill temperature with the date and time of recording Time and date or recording MIN wind chill value MIN icon Max wind chill temperature with the date and time of recording...
- Page 23 Max relative pressure with the date and time of recording Time and date or recording MAX relative pressure value MAX icon Maximum wind speed Time and date or recording MAX wind speed value MAX icon RESET THE MIN/MAX WEATHER DATA To reset the aforementioned MIN/MAX weather data 1.
- Page 24 Press and hold the SET key for about 2 seconds, then the "RESET" icon will appear at the bottom part of the LCD. Press the + key once, then the stored value will be reset to the current value and current time.
- Page 25 BUZZER OFF icon To re-enable the buzzer: When the BUZZER OFF icon is shown on LCD, press the SET key shortly and the BUZZER OFF icon will disappear. Press ALARM key once to return to the normal display mode. The "BUZZER OFF"...
-
Page 26: Positioning
Signals from the sensors can be received by the base center at points of mounting La Crosse Technology Sensor Extension Cable When you require additional cable length to mount your sensor, you can use La Crosse Technology extension cable. The extension cable is 32 feet in length and comes with the appropriate connecter attached. - Page 27 Thermo-hygro Sensor Rain Cover Main Unit Wall Bracket An ideal mounting place for the thermo-hygro sensor would be the outer wall beneath the extension of a roof, as this will protect the sensor from direct sunlight and other extreme weather conditions. To wall mount, use the 2 screws to affix the wall bracket to the desired wall, plug in the thermo-hygro sensor to the bracket and secure both parts by the use of the supplied screw and ensure that the cables from the wind and rain sensors are...
-
Page 28: Care And Maintenance
Rain Sensor For best results, the rain sensor should be securely mounted onto a horizontal surface about 1 meter above the ground and in an open area away from trees or other coverings where rainfall may be reduced causing inaccurate readings. When securing into place, check that rain excess will not collect and store at the base of the unit but can flow out between the base and the mounting surface (test by pouring clean water). - Page 29 Wind speed : 0 to 111.8 mph (0 to 50 m/s) (displayed "OF.L" when > 50m/s) Wind chill : -40°F to +139.8°F (-40ºC to +59.9ºC) (displayed "OF.L" if outside this) Relative pressure pre-set range : 27.14 to 31.90 inHg (919 to 1080 hPa) Rainfall : 0"...
-
Page 30: Warranty Information
La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 31 State. Some States do not allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2817 Losey Blvd. S. La Crosse, WI 54601 http://www.lacrossetechnology.com/1611/...
