La Crosse Technology WS-1517 Quick Setup Manual

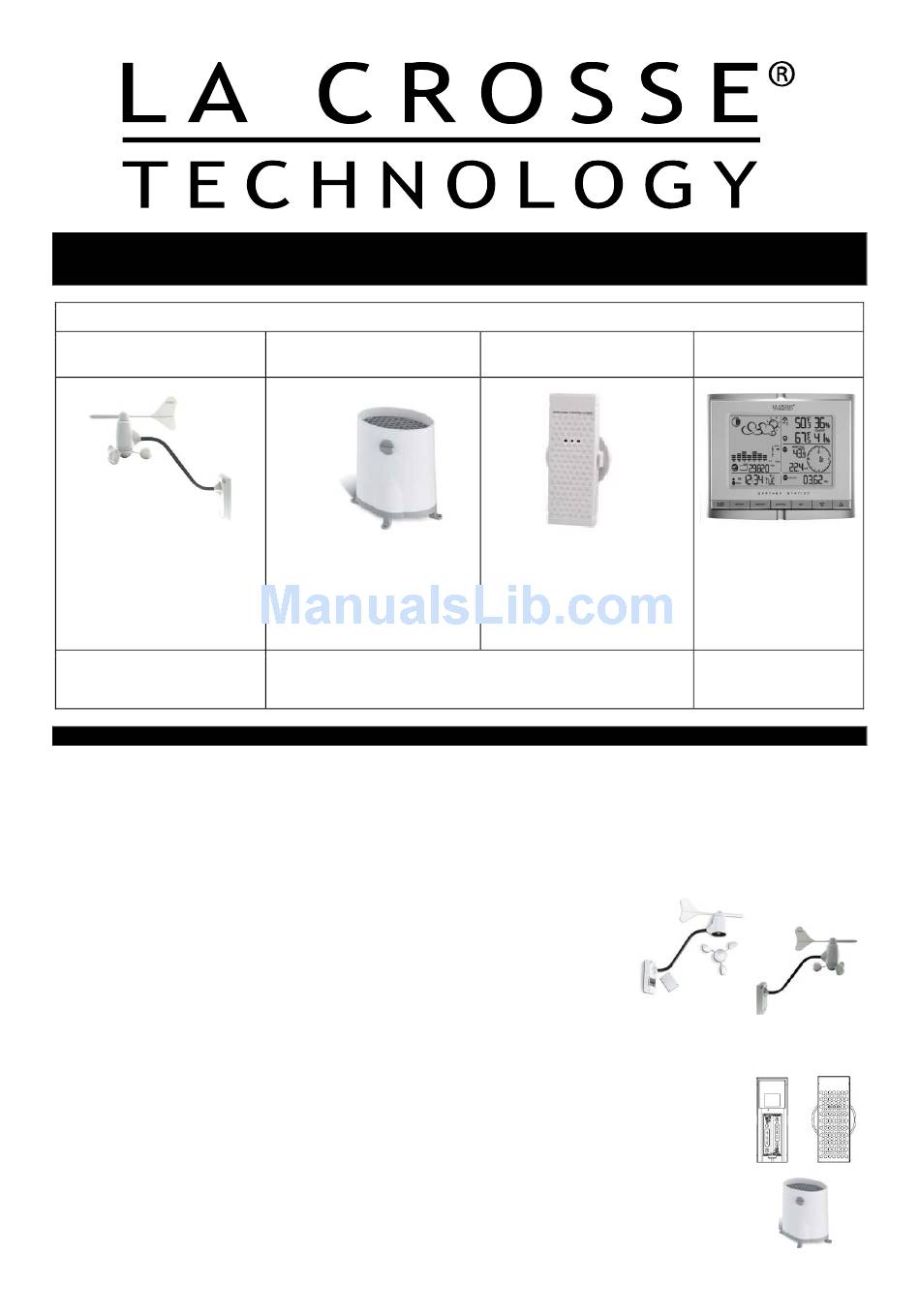

Carefully open the package and check that the following contents are complete:
Wind Sensor
TS805
•
Requires 4 mounting
screws
•
Requires 2 AA batteries
(not included)
•
1 hex key wrench
Wind Sensor also Protected under
U.S. Patent: 6,761,065; RE42,057
Setup Instructions Step-by-Step
IMPORTANT: Make sure to observe the correct polarity when inserting batteries
up with the diagrams inside the battery compartments. Inserting the batteries incorrectly may result in permanent damage to the
weather station. During the setup process, place the wireless display and the outdoor sensors on a surface with 5-10 feet between each
sensor and the display.
Batteries: We recommend using Alkaline batteries for the remote sensors and the weather station when temperatures are above 32°F
(0°C). We recommend using Lithium batteries for the remote sensors when temperatures are below 32°F (0°C).
Note: Setup all three sensors and allow them to run for at least two minutes before powering the weather station. Ensure all sensor
readings are received to the weather station before mounting sensors outside.
STEP 1: Complete initial setup on a table with all components within 10 feet of each other.
STEP 2: Wind
Wind Cups
1. With a flashlight, look into the mounting hole of the wind cups.
2. Check that the set screw is backed off appropriately, not obstructing the opening.
3. Place the wind cups over the axle shaft of the wind sensor and gently slide them into place.
4. Use the hex key wrench tool provided to tighten the small set screw inside the cups.
5. Test to assure the wind cups are securely mounted on the anemometer shaft and spin freely
Battery installation
1. Remove four (4) screws from the battery compartment.
2. Open the battery compartment and install 2 AA Alkaline batteries (not included) matching the polarities shown.
3. Replace the battery compartment door and secure the screws.
STEP 3: Thermohygro
1. Install 2 AAA Alkaline batteries (not included) matching the polarities shown in the battery compartment.
2. Replace the battery compartment door.
STEP 4: Rain
1. Unlock the funnel-shaped top on the rain sensor by turning both knobs on the sides in a counter-clockwise direction.
2. Lift the funnel-shaped top off the rain sensor bucket.
3. Remove seven (7) small screws from the battery compartment cover.
4. Insert 2 AA Alkaline batteries (not included), matching the polarities as shown in the battery compartment.
Professional Wireless Weather Station
WS-1517 | Quick Setup Guide
Rain Sensor
TS906
•
Requires 4 mounting
screws
•
Requires 2 AA batteries
(not included)
All items, including Wind Sensor, are Protected under U.S. Patents:
5,978,738; 6,076,044; & 6,597,990
Thermo-Hygro Sensor
TS21
•
Wall mount adapter
•
Requires 2 AAA batteries
(not included)
(not included). The "+" markings on the batteries must line
Wireless Display
WS-1517
•
7.5 V AC/DC
adapter
(included)
•
4 AA batteries
(not included)
