- Page 1 DIGITAL PROGRAMMABLE THERMOSTAT FOR INDIVIDUAL WEEKDAY/WEEKEND SETTING USER'S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SUMMARY..............1 PROGRAMMING Time and day adjustment......12 INTRODUCTION............2 Pre-recorded programs........ 12 Programming modification......13 INSTALLATION Span adjustment........15 Removing your old thermostat.....4 Wire labelling..........5 CHARACTERISTICS.............16 Choosing a location........6 Connecting the thermostat......7 First power-up..........8 OPERATING MODES Auto, man, econo......... 9 Function switch...........10 Filter.............11... -
Page 3: Introduction

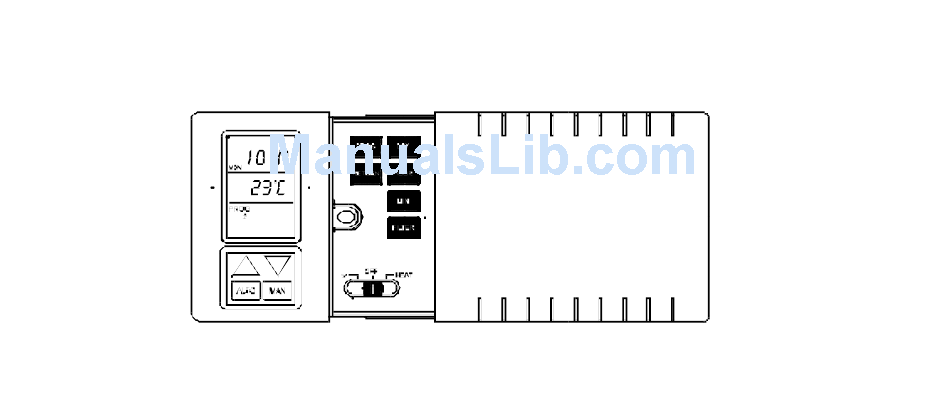

TIME & DAY BATTERY INDICATOR HEATING SYSTEM AMBIENT & SET POINT IN OPERATION TEMPERATURE FILTER INDICATOR AUTO MODE ICON TIMER ECONO RUNNING PROGRAM MODE ICON NUMBER MANUAL MODE ICON... - Page 4 INSTRUCTION This thermostat can replace most common residential thermostat and is designed to be used with electric, gas or oil heating 240VAC control and relay current up to 8 ampere. Several useful functions and operating modes have been incorporated to adapt a variety of customer needs besides all the features associated with the state of the art programmable thermostat, you'll find on 093.
-
Page 5: Installation
INSTALLATION This thermostat has been designed for simple and quick installation requiring only a few tools. REQUIRED MATERIAL Hammer Masking tape Drill and 3/16" drill bit Screwdriver REMOVING YOUR OLD THERMOSTAT CAUTION : To avoid electric shock, turn off the power of the heating system at the main power box in your home. Read the following instructions carefully before disconnecting the wires. -
Page 6: Wire Labelling
Note : If your old thermostat has only two (2) wires connected to it (heating system only), simply disconnect the two wires from the wall plate, skip over steps 1 and 2 in the Wire labelling section and go on to step 3. WARNING : After removing the wall plate, if you find that it is mounted on a junction box (e.g. -
Page 7: Choosing A Location
INSTALLATION CHOOSING A LOCATION Note : for a new installation, choose a mounting location about five feet (1.5 meter) above the floor in a area with good air circulation and away from. 1. Drafts of dead air sports. 2. Air ducts. 3. -
Page 8: Connecting The Thermostat
CONNECTING THE LABELLED WIRES TO THE THERMOSTAT 1. Connect the system wires to the terminals according to the wiring diagram shown in the section "WIRING DIAGRAM" 2. Push on the wires in the wall and replace the cover over the connectors. 3. -
Page 9: First Power-Up
INSTALLATION FIRST POWER-UP When power is applied for the first time, the display must show time and day as well as the ambient temperature as follows : If the display is different, press the RESET button. Use a fine probe such as straightened paper clip to gently push the RESET button. -
Page 10: Operating Modes
OPERATING MODES The thermostat has three (3) operating modes : AUTOmatic, MANual, TIMER ECONO AUTO : The AUTOmatic mode executes in sequence (hourly) the recorded programs. ıPress on the AUTO button. The "PROG" icon and the running program will be displayed. ıPressing button display the temperature set point of the running program for five (5) seconds. -
Page 11: Function Switch
TIMER ECONO The TIMER ECONO mode holds the ECONO temperature set point until user predetermined time and day is is reached. Then, the thermostat turns to AUTOmatic mode. This operating mode avoids the user to reprogram his thermostat for a prolonged absence (up to one week) and allows for maximum savings. -
Page 12: Filter
OPERATING MODES This function shuts off the heating system. 5°C This function holds the temperature set point at 5°C (heating) in older to prevent freezing. FILTER : The thermostat keeps a record of the number of hours your filter has been used. It will display the total number of hours the system has used the filter from the moment the filter was replaced and that the filter counter was reset to zero. -
Page 13: Programming
PROGRAMMING The thermostat has an automatic return. When function such as the program recording filter review etc have not been completed by pressing the RETURN key, the thermostat will automatically exit those functions after five (5) seconds. TIME AND DAY ADJUSTMENT Any time in normal modes, press DAY, HOUR and MIN keys to set the time and day PRE-RECORDED PROGRAMS This thermostat has four (4) pre-programmed heating programs for weekday and two (2) for weekend. -
Page 14: Programming Modification
PROGRAMMING MODIFICATION 1 - Place function switch to HEAT position. 2 - Press the PROG key. The display shows the program's starting time and setpoint. The Monday to Friday indicator are turning on showing that this program is associated to the days of the week. The program number 1 is flashing to indicate the selected program. - Page 15 PROGRAMMING PROGRAMMING SCHEDULE Use following programming schedule as a memorandum before programming or changing a program by writing down your schedule of heating. Weekday programs (Mon...Fri.) Temperature set point Program number Hour Heating Program 1 Program 2 Program 3 Program 4 Weekend programs (Sat.
-
Page 16: Span Adjustment
TEMPERATURE SPAN ADJUSTMENT The factory set temperature span is 1°C. For example, if the temperature set point is 20°C, the heating system will turn on at 19.5°C and turn off 20.5°C. This span is programmable. You can choose between 0.5, 1.0, 1.5 and 2.0 °C. To review or to change the temperature span : 1 - Press PROG key while RETURN key is pressed in. -
Page 17: Characteristics
CHARACTERISTICS Model : Power Supply : AA alkaline battery x 2 Load : 8 amp maximum, 240 VAC Number of programs : 4 weekday programs and 2 weekend programs Storage temperature range: -20 to 50°C Operating temperature range: 0 to 50°C Control range : 5 to 27°C, 0.5°C resolution Display range :...
