PANEL DESCRIPTION

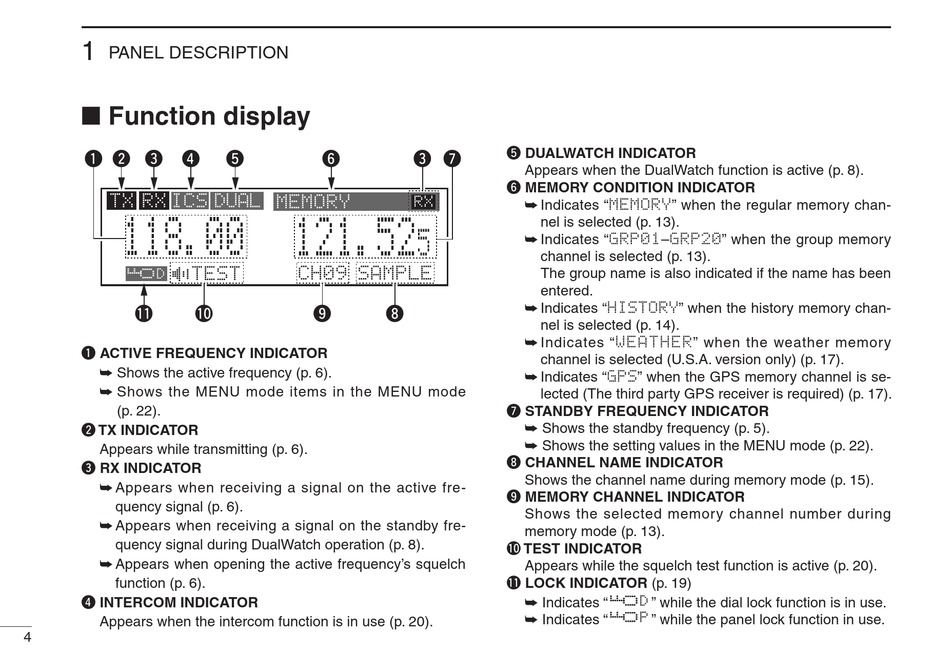

■ Function display

q
w
e
r
TX
RX
ICS
118.00
TEST
D
!1
!0
q ACTIVE FREQUENCY INDICATOR
➥ Shows the active frequency (p. 6).
➥ Shows the MENU mode items in the MENU mode
(p. 22).
w TX INDICATOR
Appears while transmitting (p. 6).
e RX INDICATOR
➥ Appears when receiving a signal on the active fre-
quency signal (p. 6).
➥ Appears when receiving a signal on the standby fre-
quency signal during DualWatch operation (p. 8).
➥ Appears when opening the active frequency's squelch
function (p. 6).
r INTERCOM INDICATOR
Appears when the intercom function is in use (p. 20).
4
t
y
DUAL MEMORY
121.52
CH09 SAMPLE
o
i
t DUALWATCH INDICATOR
e
u
Appears when the DualWatch function is active (p. 8).
y MEMORY CONDITION INDICATOR
RX
➥ Indicates "MEMORY" when the regular memory chan-
nel is selected (p. 13).
5
➥ Indicates "GRP01–GRP20" when the group memory
channel is selected (p. 13).
The group name is also indicated if the name has been
entered.
➥ Indicates "HISTORY" when the history memory chan-
nel is selected (p. 14).
➥ Indicates "WEATHER" when the weather memory
channel is selected (U.S.A. version only) (p. 17).
➥ Indicates "GPS" when the GPS memory channel is se-
lected (The third party GPS receiver is required) (p. 17).
u STANDBY FREQUENCY INDICATOR
➥ Shows the standby frequency (p. 5).
➥ Shows the setting values in the MENU mode (p. 22).
i CHANNEL NAME INDICATOR
Shows the channel name during memory mode (p. 15).
o MEMORY CHANNEL INDICATOR
Shows the selected memory channel number during
memory mode (p. 13).
!0 TEST INDICATOR
Appears while the squelch test function is active (p. 20).
!1 LOCK INDICATOR (p. 19)
➥ Indicates "
➥ Indicates "
" while the dial lock function is in use.
" while the panel lock function in use.
