Weather Memory Channel (U.s.a. Version Only); Gps Memory - Icom IC-A210 Instruction Manual

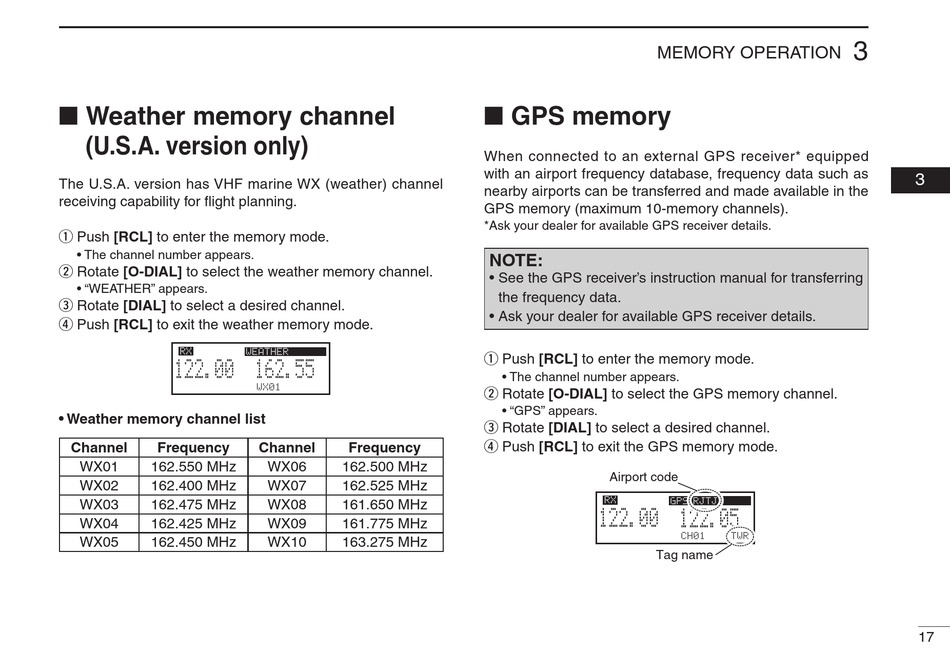

■ Weather memory channel
(U.S.A. version only)
The U.S.A. version has VHF marine WX (weather) channel
receiving capability for flight planning.
q Push [RCL] to enter the memory mode.
• The channel number appears.
w Rotate [O-DIAL] to select the weather memory channel.
• "WEATHER" appears.
e Rotate [DIAL] to select a desired channel.
r Push [RCL] to exit the weather memory mode.
RX DUAL WEATHER
122.00
• Weather memory channel list
Channel Frequency
WX01 162.550 MHz
WX02 162.400 MHz
WX03 162.475 MHz
WX04 162.425 MHz
WX05 162.450 MHz
162.55
5
WX01
Channel Frequency
WX06 162.500 MHz
WX07 162.525 MHz
WX08 161.650 MHz
WX09 161.775 MHz
WX10 163.275 MHz
MEMORY OPERATION

■ GPS memory

When connected to an external GPS receiver* equipped
with an airport frequency database, frequency data such as
nearby airports can be transferred and made available in the
GPS memory (maximum 10-memory channels).
*Ask your dealer for available GPS receiver details.
NOTE:
• See the GPS receiver's instruction manual for transferring
the frequency data.
• Ask your dealer for available GPS receiver details.
q Push [RCL] to enter the memory mode.
• The channel number appears.
w Rotate [O-DIAL] to select the GPS memory channel.
• "GPS" appears.
e Rotate [DIAL] to select a desired channel.
r Push [RCL] to exit the GPS memory mode.
Airport code
RX
122.00
Tag name
GPS RJTJ
122.05
5
CH01 TWR
3
03
17
