1

PANEL DESCRIPTION

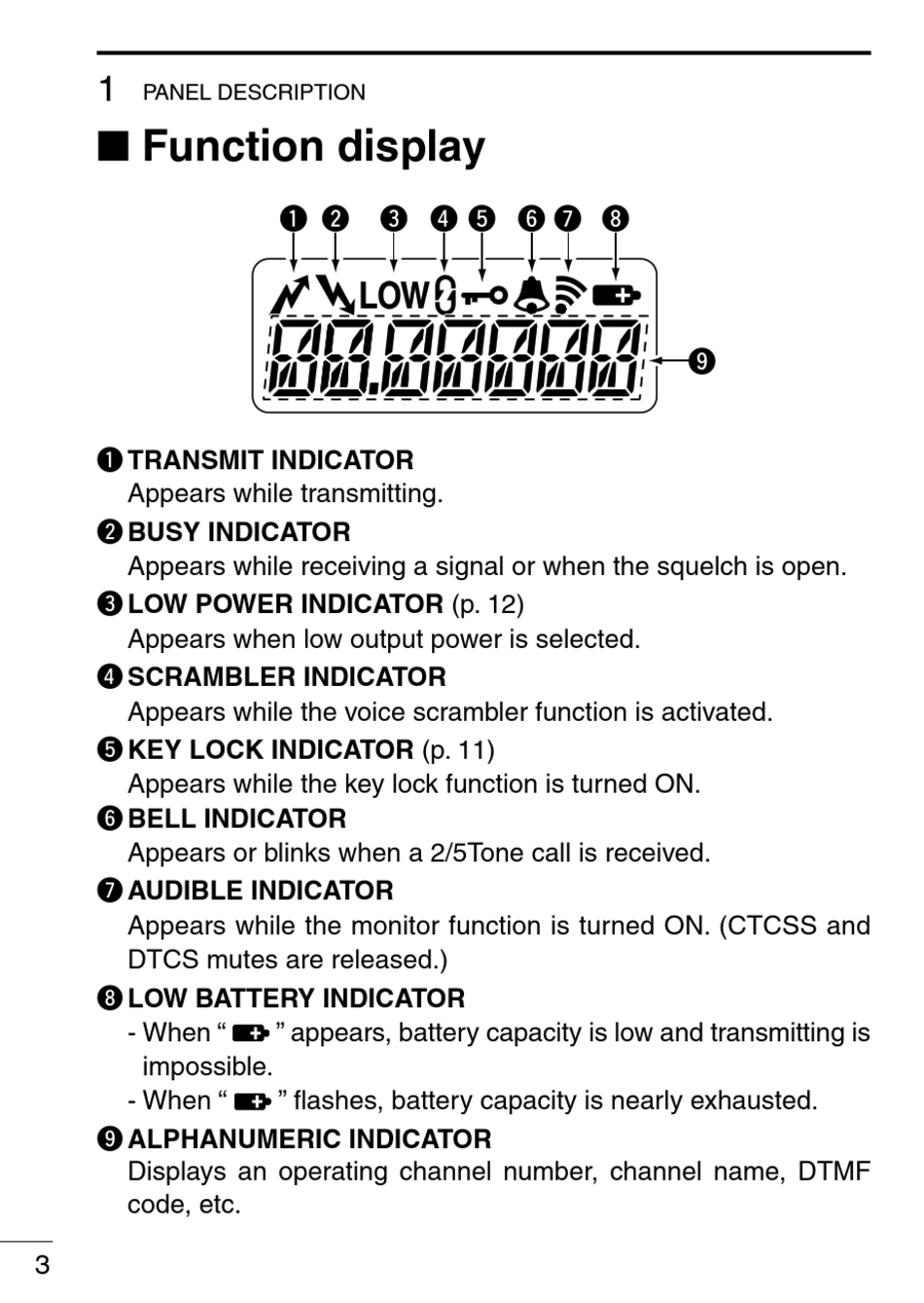

■ Function display

q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while receiving a signal or when the squelch is open.
e LOW POWER INDICATOR (p. 12)
Appears when low output power is selected.
r SCRAMBLER INDICATOR
Appears while the voice scrambler function is activated.
t KEY LOCK INDICATOR (p. 11)
Appears while the key lock function is turned ON.
y BELL INDICATOR
Appears or blinks when a 2/5Tone call is received.
u AUDIBLE INDICATOR
Appears while the monitor function is turned ON. (CTCSS and
DTCS mutes are released.)
i LOW BATTERY INDICATOR
- When "
impossible.
- When "
o ALPHANUMERIC INDICATOR
Displays an operating channel number, channel name, DTMF
code, etc.
3
q w e r t y u i
" appears, battery capacity is low and transmitting is
" flashes, battery capacity is nearly exhausted.
o
