Your one-handed reciprocating saw has been engineered and manufactured to our high standard for dependability, ease
of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID
SAVE THIS MANUAL FOR FUTURE REFERENCE
product.
®

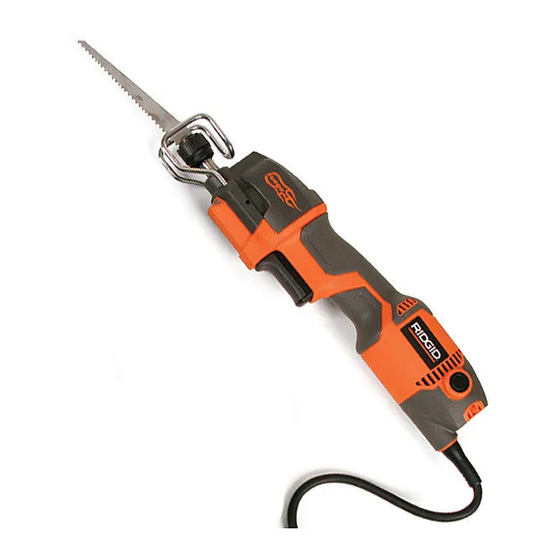

OPERATOR'S MANUAL
ONE-HANdEd
RECIPROCATING SAW
VARIABLE SPEEd
R3030
