RIDGID R3020 Operator's Manual

RIDGID R3020 Operator's Manual

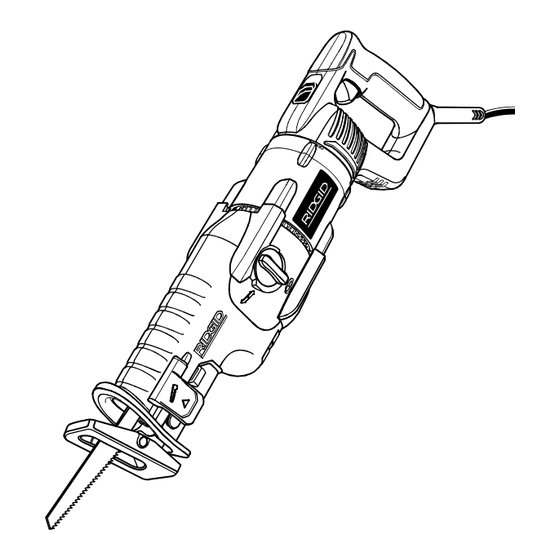

Reciprocating saw variable speed
Hide thumbs Also See for R3020:
Table of Contents

Advertisement

Quick Links

Your reciprocating saw has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL

RECIPROCATING SAW

VARIAbLE SPEEd
R3020

Advertisement

Table of Contents
loading

Related Manuals for RIDGID R3020

Summary of Contents for RIDGID R3020

  • Page 1: Reciprocating Saw

    When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Thank you for buying a RIDGID product. SAVE THIS MANUAL FOR FUTURE REFERENCE OPERATOR’S MANUAL...

  • Page 2: Table Of Contents

    TAbLE OF CONTENTS  Introduction ...   General Safety Rules ...3-4  Specific Safety Rules ... 4  Symbols ...5-6  Electrical ... 7  Features ...8-9  Assembly ... 9  Operation ...10-13  Maintenance ... 14  Warranty ... 15  Customer Service Information ...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA  Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES  Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.  Keep the tool and its handle dry, clean and free from oil and grease.

  • Page 5: Symbols

    SYMbOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter- pretation of these symbols will allow you to operate the product better and safer. SYMbOL NAME Volts Amperes Hertz Watt Minutes Alternating Current...

  • Page 6: Symbols

    To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID customer service for assistance.

  • Page 7: Electrical

    ELECTRICAL dOUbLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded.

  • Page 8: Features

    FEATURES PROdUCT SPECIFICATIONS Input ... 10 V, 60 Hz, AC Only, 1 Amps Switch ... Variable Speed No Load Speed ... 0-,800 r/min. (RPM) INSULATED GRIPPING BASE (SHOE) ASSEMBLY SAW BLADE BLADE CLAMP LOCK/RELEASE LEVER Stroke Length ... 1-1/4 in. Net Weight ...8.8 lbs.

  • Page 9: Assembly

    FEATURES KNOW YOUR RECIPROCATING SAW See Figure 1. The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

  • Page 10: Operation

    OPERATION WARNING: Do not allow familiarity with the product to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating product. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
  • Page 11 OPERATION ORbITAL ACTION SELECTOR See Figure 4. Use the orbital action selector to select either a linear stroke or orbital cutting action. A linear stroke is best for making smooth cuts while orbital action is best for making a faster cut.

  • Page 12: General Cutting

    OPERATION WARNING: Cutting into electrical wiring in walls can cause metal surfaces of the saw to become electrically live. Do not touch metal parts when cutting into a wall; grasp only the insulated gripping surfaces provided on the tool. Make sure hidden electrical wiring, water pipes, and mechanical hazards are not in the blade path when cutting into a wall.
  • Page 13 OPERATION PLUNGE CUTTING See Figure 8.  Mark the line of cut clearly.  Choose a convenient starting point inside the area to be cut out and place the tip of the blade over that point.  Rest front edge of base (shoe) assembly on work and hold firmly in position.

  • Page 14: Maintenance

    MAINTENANCE WARNING: When servicing use only identical RIDGID replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust.

  • Page 15: Warranty

    /1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710.

  • Page 16: Customer Service Information

    R3020 Customer Service Information: For parts or service, contact your nearest RIDGID authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
