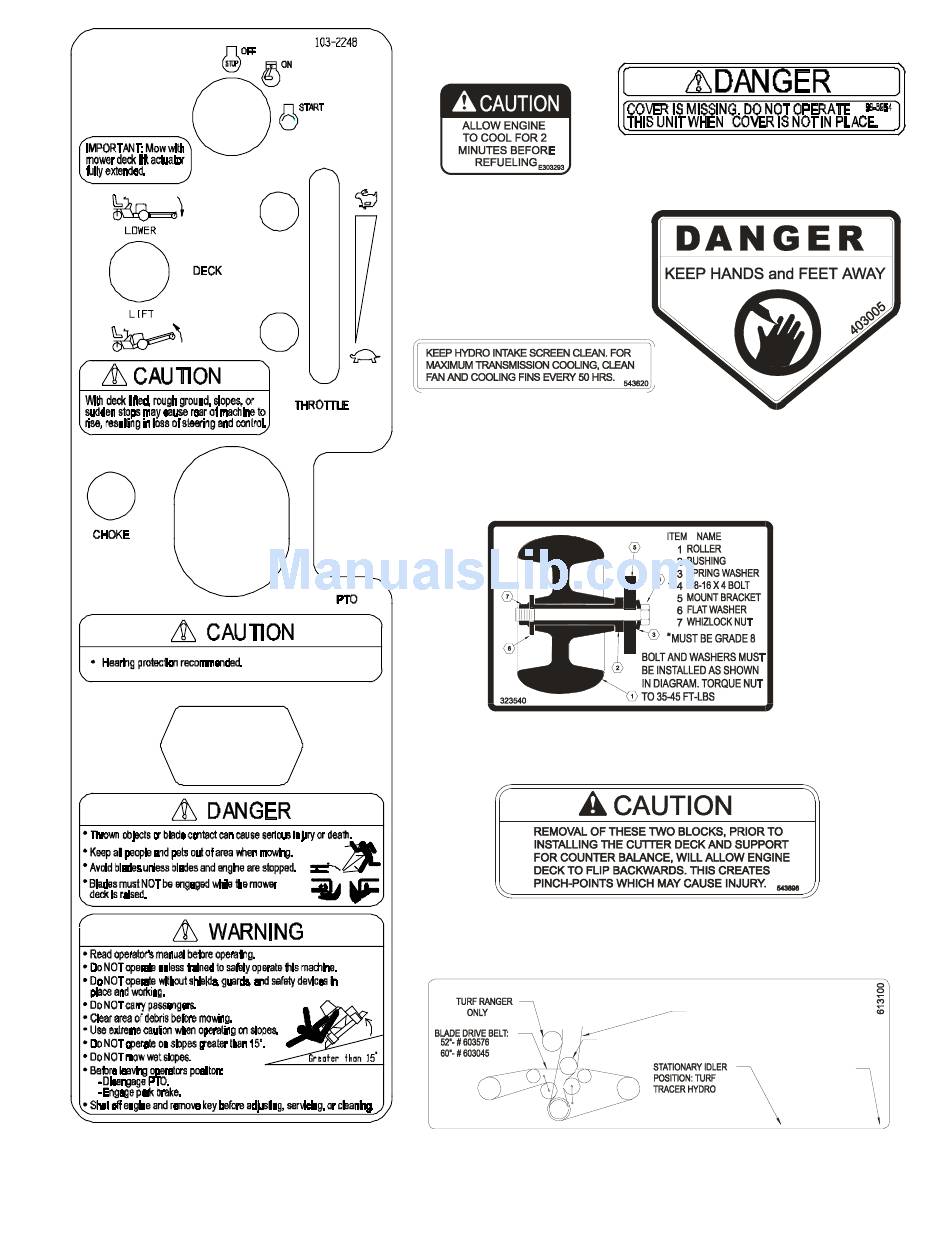

PART NO. 103-2248
LOCATION: Steering Console
PART NO. 1-303293
LOCATION: Top Surface
of Fuel Tank
PART NO. 1-543620
LOCATION: On Intake Screen
Below Fuel Tank
PART NO. 1-323540
LOCATION: Front of Mower Deck, Top Surface
PART NO. 1-543896
LOCATION: Under Engine Deck on
FMD523 & FMD603 units only
PART NO. 1-613100
LOCATION: Top of Mower Deck Beneath Center Shield
- 8 -
PART NO. 98-5954
LOCATION: Under Belt Shields
PART NO. 1-403005
LOCATION: LH & RH Front Top
Wood Blocks for Shipping
BELT ROUTING
DECK DRIVE BELT: TR-52"- # 543749
TR-60"- # 543523
TTH-52&60"- # 603306
STATIONARY IDLER
STATIONARY IDLER
POSITION: TURF
RANGER
Surface of Mower
Deck
