SHARP
Thank you for purchasing
this SHARP product. To obtain
the best performance
from this product,
please
read
this manual carefully.
It will guide you in operating
your SHARP product.
•

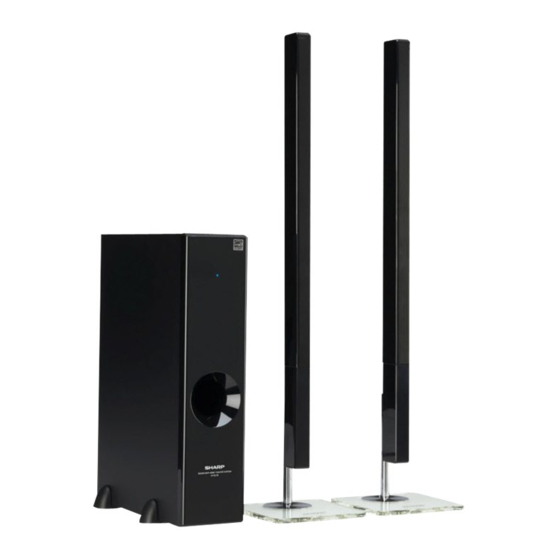

HT-SL72 SOUND BAR HOME THEATER
SYSTEM consisting
of TX-SL72 (Amplifier System),
CP-SW72
(Active Subwoofer
System) and HT-SL72
(Sound Bar).
•
HT-SL77 SOUND BAR HOME THEATER
SYSTEM consisting
of TX-SL77 (Amplifier System),
CP-SW77
(Active Subwoofer
System) and HT-SL77
(Sound Bar).
HT-SL72
HT-SL77
H
roll
TM
NaGH
DEFaNITION
MULTIMEDHA
aNTERFACE
•
This product is recommended
for flat panel TV (LED, LCD and plasma).
HT-SL77:
•
For HDMI connection,
this product only supports PCM (Pulse Code Modulation)
signals.
•
This product is controlled via HDMI CEC (Consumer
Electronics
Control) specification,
therefore
for HDMI connection,
your TV's CEC must be enabled.
For detail, refer to the operation manual of the TV.
•
For TV without HDMI CEC, headphone or RCA analog connection
is available.
•
For TV without HDMI, headphone
or RCA connection
is required.
•
This unit supports HDMI which enables Audio Return Channel (ARC).
HT-SL72:
•
HDMI connection
and input selector are not available.
Recommended
Connection:
Model
HT-SL77
HT-SL72
&
HT-SL77
TV Type
HDMI
(with ARC)
with HDMI
HDMI TV without
CEC & ARC or non
HDMI TV
CEC FUNCTION
MUST BE ENABLED
MUST BE ENABLED
NONE
CONNECTION
(TV)
HDMI IN
(ARC)
HDMI IN
HEADPHONE
OUT
RCA
CONNECTION
METHOD
Page 11, Method 1
Page 11, Method 2
Page 12, Method 1
Page 12, Method 2
Printed in Malaysia
TINSZB271AWZZ
SHARP CORPORATION
12c R KI (_)
Advertisement
Table of Contents
Related Manuals for Sharp HT-SL72
Summary of Contents for Sharp HT-SL72
- Page 1 SHARP Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. • HT-SL72 SOUND BAR HOME THEATER SYSTEM consisting of TX-SL72 (Amplifier System),...
- Page 2 The following accessories are included, This )roduct has noremote control, HT-SL77 only Subwoofer Stand x 2 Audio Cable x 1 HDMI Cable x 1 Wall Mount RCA to Headphone Bracket x 2 Cable (1pin - 2 pins) x 1 (GITAUA004AW01) (QCNWGA080AWPZ) (QCNWGA077AWPZ) (QCNWGA081 AWPZ)
- Page 3 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 CAUTION of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Electricity is used to perform many useful functions, but it Object and Liquid Entry - Never push objects of any kind can also cause personal injuries and property damage if into this product through openings as they may touch improperly handled.
- Page 5 In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted...
- Page 6 Indicator ..... Do not remove the outer cover, as this may result in electric shock, Refer internal service to your local SHARP service facility, REAR VIEW • This unit should only be used within the range of 41°F - 95°F (5°0 - 35°0).
- Page 7 FRONT VIEW REAR VIEW Reference page 1. Left Front Speaker 4. Right Front Speaker Terminal (Red/Black) ..2. Right Front Speaker 5. Left Front Speaker Terminal (White/Black) ..3. Bass Reflex Duct FRONT VIEW REAR VIEW Reference page Reference page 4.
- Page 8 To fix the Sound Bar stand 1. Peel off the double sided tape separator and attach the Make sure to unplug the AC power cord before I installing the unit or changing the position. Sound Bar stand cushion at the bottom surface of the Sound Bar stand.
- Page 9 Amplifier once it is attached on the wall as it can cause damage and injury. SHARP designed the Sound Bar and Amplifier so you may Slot in the wire inside the hang them on the wall. Use proper screws (not supplied).
- Page 10 The Amplifier can be installed as below: 4 Screw the wall mount angle to the wall as shown in the illustration. (Total screw is 4 pieces) • Make sure that the screw and the wall can support a load of 45 Ibs (20 kg). Wall mount angle "_ ..
- Page 11 Installation image: Notes: As the sound from the system is omni-directional, can place the speaker anywhere you like. However, it is recommended to place it as close to the TV as possible. • The front panel of the speaker is not removable. •...
- Page 12 For details, refer to the operation manual of the TV. • If you are unable to select external speaker setting from the TV menu (E.g. For SHARP LCD TV, it is named as AQUOS AUDIO SP), turn the CEC OFF and ON again.
- Page 13 Switch the input selector toANALOG. (For HT-SL77) Connect tothe TV using an audio cable. 1. M ethod l ToHEAOPH -- Audio cable Amplifier Notes: • Connecting via this method may disable TV internal speakers. • In some cases, a small background noise could emit from the Sound Bar, when you use the headphone connection with a TV-Set.
- Page 14 Sound Bar and Subwoofer is clear displayed if SHARP LCD TV does not detect HT-SL77 of any obstacles. during power on. However the message "AQUOS audio with AQUOS LINK is enabled" will be displayed soon as HT-SL77 is detected.
- Page 15 • Wireless connection • Checkthe distance If something is wrong with this product, check the following cannot be before calling your authorized SHARP dealer or service between the Amplifier and center. established. Subwoofer (less than 32 feet (10m)). • Make sure there is no other wireless devices near the unit.
- Page 16 As part ofour policy ofcontinuous improvement, SHARP reserves theright tomake d esign and specification changes for p roduct improvement without prior notice. performance specification figures indicated are nominal Type FullRangespeaker system values ofproduction unit. There maybe some deviations 14/16"x 4-1/2 (2.2x 11.5cm) from these values inindividual unit.
