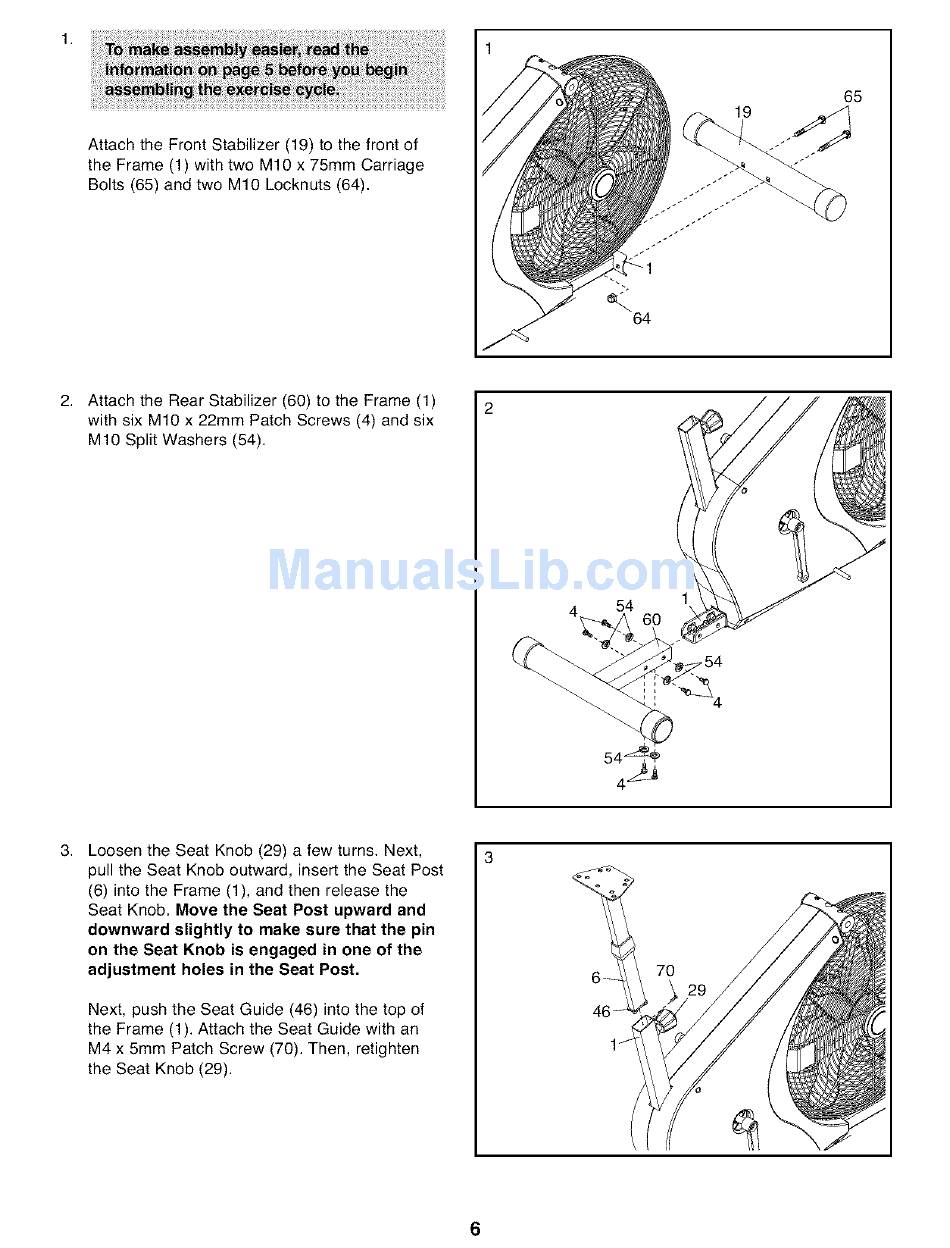

Attach the Front Stabilizer (19) to the front of
the Frame (1) with two M10 x 75mm Carriage
Bolts (65) and two M10 Locknuts (64).
19
64
65
2.
Attach the Rear Stabilizer (60) to the Frame (1)
with six M10 x 22mm Patch Screws (4) and six
M10 Split Washers (54).
54
.
Loosen the Seat Knob (29) a few turns. Next,
pull the Seat Knob outward, insert the Seat Post
(6) into the Frame (1), and then release the
Seat Knob. Move the Seat Post upward and
downward
slightly to make sure that the pin
on the Seat Knob is engaged
in one of the
adjustment
holes in the Seat Post.
Next, push the Seat Guide (46) into the top of
the Frame (1). Attach the Seat Guide with an
M4 x 5mm Patch Screw (70). Then, retighten
the Seat Knob (29).
70
6
