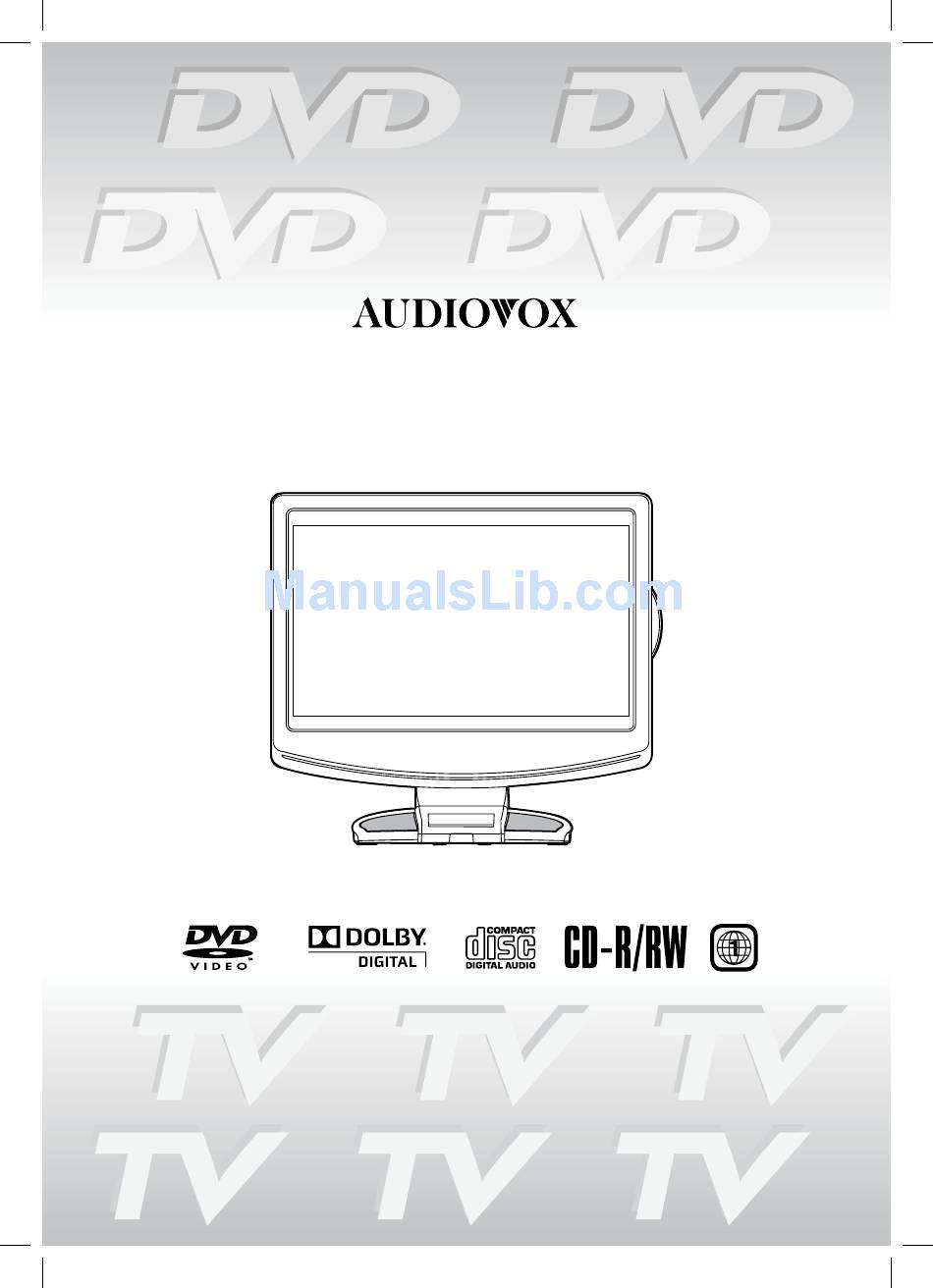

- Page 1 FPE1909DVi 19” class TV with DVD and dock for iPod 18.5” measured diagonally 22" TV with DVD Owner’s Manual E - 1...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS PLACEMENT INFORMATION * CAUTION MARKING WAS LOCATED AT THE REAR ENCLOSURE OF THE APPARATUS • Do not use this unit in places that are extremely hot, cold, dusty or humid. • Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, by placing it on bedding or carpeting. SAFETY INFORMATION • When connecting or disconnecting the AC power cord, grip the plug and not the cord itself. Pulling the WARNING : TO REDUCE THE RISK OF ELECTRIC cord may damage it and create a hazard. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience 2) Keep these instructions. receptacles, and the point where they exit 3) Heed all warnings. from the apparatus. 4) Follow all instructions. -
Page 4: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ......2 Fast forward / fast reverse .... 22 IMPORTANT SAFETY INSTRUCTIONS ..Slow-motion play (DVD) ....... 22 Audio selection (DVD) ...... 22 ..............3 MAINTENANCE ........3 Subtitle selection (DVD) ....... 22 CONTENTS ..........4 Angle Selection (DVD) ......22 SPECIAL FUNCTIONS ......23 QUICK INSTALLATION ......5 Display function (DVD) ......23 DISC FORMATS ........ -
Page 5: Quick Installation
QUICK INSTALLATION When you turn on your television set for the first time, be sure to place it on a solid stable surface. 2 3/8” To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear 7 7/8” and be sure to leave sufficient gaps around the 2 3/8” unit as shown. TURNING ON THE UNIT FOR THE FIRST TIME The first time you turn on the unit, the unit will enter the setup mode. You can easily follow the prompt message on the screen to complete basic TV settings. -
Page 6: Disc Formats
DISC FORMATS ICONS USED ON DVDs NOTES ON COPYRIGHT It is forbidden by law to copy, broadcast, show, Sample Icons: broadcast on cable, play in public or rent copyrighted Language selections for audio material without permission. Apparatus Claims of U.S. Patent Nos. 6,836,549; Language selections for subtitles 6,381,747; 7,050,698; 6,516,132; and 5,583,936 licensed for limited viewing uses only. Screen aspect ratio DVDs are copy protected, and any recordings made from these discs will be distorted. This product Multiple camera angles incorporates copyright protection technology that is Region code indicator... -
Page 7: Accessories
ACCESSORIES Please check and identify the supplied accessories. Remote control (with batteries) ...................... x 1 GETTING STARTED USING THE REMOTE CONTROL • Point the remote control at the remote sensor located on the unit. • When there is a strong ambient light source, the performance of the infrared remote sensor may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). TO INSTALL THE BATTERIES 1. Open the battery door. -
Page 8: Control Reference Guide
CONTROL REFERENCE GUIDE 5. TV MENU Button Press to display the on-screen TV menu. 6. VOLUME (– / +) Buttons Press to adjust the volume level. 7. CURSOR ( , , , ) Buttons Press to highlight selections on a menu screen and adjust certain settings. ENTER • OK Button Press to confirm selections on a menu screen. - Page 9 CONTROL REFERENCE GUIDE STOP Button Press to stop playing a disc. Press it twice, the unit’s memory will be cleared. PLAY Button Press to start and resume playback of a disc. PAUSE Button Press to pause playback and single frame advance on DVDs. 23. AUDIO Button Press to select audio soundtracks on a DVD or change the output mode of a CD. SLOW Button Press to perform slow forward playback of a DVD. 25. DVD MENU Button Press to enter the main menu of the DVD.
-
Page 10: Front View
CONTROL REFERENCE GUIDE FRONT VIEW 1. Color LCD Screen 2. Tweeter 3. Remote Sensor Do not block this sensor or the remote control will not work. Standby Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. L ight On: The unit is in STANDBY. L ight Off: The unit is turned ON. 4. Dock for iPod ® 5. Speakers BACK VIEW 6. AC Power Cord 7. VIDEO OUT Jack (AV OUT) 8. -
Page 11: Control Reference Guide
CONTROL REFERENCE GUIDE SIDE VIEW button / I button Press to select previous titles, chapters or Turns the unit on and off. tracks on a disc. PLAY button button Press to start or resume playback of a Press to select next title, chapter or track disc. on a disc. 20. MENU button 23. – VOLUME + controls Press to display the on-screen TV menu. A djust the volume level. 21. FUNCTION button 24. -
Page 12: Connections
CONNECTIONS CONNECTING A TV ANTENNA / CABLE / SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. This digital TV can receive standard (SDTV) and high definition (HDTV) over the air broadcasts. Connecting an Analog Antenna or Device The tuner in this TV receives NTSC TV signals, analog cable signals or Satellite, cable or TV antenna the RF output from a satellite receiver, VCR or cable box. cable to TV ANTENNA terminal (cable not included) CONNECTING AN A/V DEVICE To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc. To AUDIO IN C o n n e c t i n g t o a V C R / jacks (AV IN) -
Page 13: Connecting Devices With A Composite (Yellow Rca-Type) Video Input
CONNECTIONS CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO INPUT To connect A/V devices such as a VCR, PVR or camcorder. Connecting to a VCR / PVR / Camcorder Connect the AUDIO / VIDEO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO and VIDEO IN) to this unit (AUDIO and VIDEO OUT). To AUDIO / VIDEO OUT jacks NOTE Please refer to the user manual for the other equipment for more... -
Page 14: Connecting A Pc
CONNECTIONS CONNECTING A PC Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown. Make sure you connect the cable from the computer (PC Connector and AUDIO - PC OUT) to this unit (MONITOR / VGA and AUDIO - PC IN). CONNECTING AN AUDIO AMPLIFIER This connection allows you to use an audio amplifier and external speakers. Connect the AUDIO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO IN) to this unit (AUDIO OUT). -
Page 15: Using Headphones
USING HEADPHONES • Turn down the volume before Headphones connecting headphones to the (1/8” [3.5mm diameter plug) unit, then adjust the volume to your desired level. • W h e n h e a d p h o n e s a r e connected, no sound will come from the front speakers. NOTE Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss. UNIT OPERATION TURNING THE UNIT ON When the AC power adapter is connected, press the... -
Page 16: Tv Setup
TV SETUP Note: Some setting items on the menu screen may not activate depending on what mode the unit is currently in (TV, AV IN, YP IN, DVD, PC IN). PICTURE MENU 1. Press the TV MENU button. 2. Press the button to enter PICTURE settings. 3. Use the or button to select the options (Picture Mode, Contrast, Brightness, Sharpness, Tint or Color). Adjust them using the or button (Screen will change to your desired setting). -
Page 17: Time Menu
TV SETUP TIME MENU 1. Press the TV MENU button. 2. Use the or button to select TIME, then press the button to enter the TIME settings. 3. Use the or button to select the options (OSD Duration, Sleep Timer, Time Zone or Day Saving Time). Adjust them using the or button. 4. Repeat step 3 to adjust other options. 5. To exit the MAIN MENU and return to the normal screen, press the EXIT or TV MENU button repeatedly. -
Page 18: Parental Menu
TV SETUP PC Set Up (in PC mode only) - Resolution : 1,366 x 768 - Refresh Frequency : 60Hz H - Pos : Center the image by moving it left or right. V - Pos : Center the image by moving it up or down. Clock : Adjusts the display clock to change width of the image. Phase : Adjusts the image if there is flicker of screen letters, color misalignment, or blurring. Auto Adjust : Adjust the image automatically. Closed Caption NOTE This function only works on ATSC programs broadcast with captions. - Page 19 TV SETUP Parental 1. Use the or button to select various Parental settings. Adjust them using the or button, or press the button to go into the detailed settings. 2. Press the TV MENU button to return to the previous menu. 3. Repeat steps 1 - 2 to adjust other options. 4. To exit the MAIN MENU and return to the normal screen, press the EXIT or TV MENU button repeatedly. Change Password : Enter the old password (the preset password is 0000 if you did not change it), then enter new password and confirm it.(Remember your password!)
-
Page 20: Tv Menu
TV SETUP TV MENU (For TV Mode Only) 1. Press the TV MENU button. 2. Use the or button to select TV, then press the button to enter the TV settings. 3. Use the or button to select the options (Antenna, Auto Scan, Auto Scan Add CH, Channel Skip, Channel No., Channel Label or DTV Signal). Adjust them using the or button, or press the button to go into the detailed settings. -
Page 21: Cd/Dvd Operation
CD/DVD OPERATION This owner’s manual explains the basic instructions of this unit. Some DVDs are produced to limit operation during playback. For example, many DVDs do not allow users to skip govern- ment warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 22: Fast Forward / Fast Reverse
CD/DVD OPERATION FAST FORWARD / FAST REVERSE 1. Press the SEARCH or SEARCH button when a disc is playing. • Each time the SEARCH or SEARCH button is pressed, the speed of fast scan changes in the following sequence: FORWARD X 2 ---> FORWARD X 4 ---> FORWARD X 8 ---> FORWARD X 20 ---> PLAY BACKWARD X 2 ---> BACKWARD X 4 ---> BACKWARD X 8 ---> BACKWARD X 20 ---> PLAY 2. Press the PLAY button when you reach the desired point to resume playback at normal speed. -
Page 23: Special Functions
SPECIAL FUNCTIONS DISPLAY FUNCTION (DVD) While the disc is playing, press the DISPLAY button repeatedly to display information on operation status. LOCATING A SPECIFIC TITLE (DVD) If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. 1. Press the GOTO button. 2. Press the or button to highlight a specific field and press the corresponding number button(s) for the title you want. 3. Press the ENTER • OK button to confirm. Playback starts from the selected title. LOCATING A SPECIFIC CHAPTER / TRACK If you know the chapter / track number you want to play, you can locate a specific chapter / track by directly selecting a chapter / track number. 1. Press the GOTO button to search for your desired chapter / track. 2. Press the or button to highlight a chapter / track and press the corresponding number button(s) for the chapter / track you want. -
Page 24: Repeat Playback
REPEAT PLAYBACK You can play a single track or an entire disc repeatedly. Repeating a single track (CD) You can play the same track repeatedly. 1. While the disc is playing, press the REPEAT button until the “ ” indicator displays on the screen. The current track is played repeatedly. Repeating an whole disc 2. While the disc is playing, press the REPEAT button until the “ ” indicator displays on the screen. The whole disc is played repeatedly. To resume normal playback 3. Press the REPEAT button until the “ ” indicator displays on the screen. Repeating a specific section (DVD) (CD) You can play a specific section repeatedly. 1. While the disc is playing, press the A-B button at the beginning of the section ( is displayed) you want to play repeatedly. 2. Press the A-B button again at the end of the section ( is displayed) you want to play repeatedly. 3. The unit will immediately begin replaying your selection. To resume normal playback 4. While the disc is playing, press the A-B button until the “... -
Page 25: Customizing The Dvd Function Settings
CUSTOMIZING THE DVD FUNCTION SETTINGS LANGUAGE SETUP 1. Press the SETUP button in stop mode. 2. Use the or button to select the option (OSD Language, Audio Lang, Subtitle Lang, Menu Lang), then press the and or button to select your preferred language, then press the ENTER • OK button. The screen will change to your selected language immediately. 3. To exit the DVD SETUP MENU and return to the normal screen, press the SETUP button. VIDEO SETUP 1. Press the SETUP button in stop mode. 2. Press the or button repeatedly until the VIDEO SETUP appears. 3. Use the or button to select the option (Brightness, Contrast, Hue, Saturation, Sharpness), then press the button. Use the or button to adjust, then press the ENTER • OK button. (The screen will change to your selected setting). 4. Repeats steps 2 and 3 above to adjust other options. 5. To exit the DVD SETUP MENU and return to the normal screen, press the SETUP button. -
Page 26: Using To Your Ipod
USING TO YOUR iPod CONNECTING YOUR iPod WARNING: To prevent damage to the unit and/or your iPod, connect or remove your iPod when the unit is powered off or the unit is not in iPod mode. 1. Ensure the appropriate iPod Dock Adaptor that was supplied with your iPod is installed. 2. Insert your iPod into the connector in the dock. 3. Press the DVD/iPod button to select the iPod mode. Your iPod will be connected automatically, and iPod Home menu Docking System for iPod... -
Page 27: Using A Ipod Touch To View The Photo
USING TO YOUR iPod Using a iPod Touch to view the photo 1. In iPod Home menu, use the or button to select Photos and press the ENTER • OK button. “Navigate your iPod Photo Library directly from your iPod” will appear on the screen. 2. Touch the “Photos” selection on iPod panel, and then select the photo your prefer. 3. Touch the “ ” to confirm the photo. 4. Touch the “Yes” to activate iPod’s video output. The photo will appear on the screen. Step 2 Step 3 Step 4 5. Press iPod RETURN button to end the photo viewing and go back to the previous menu. Using a iPod Classic / iPod Nano to view the photo 1. In iPod Home menu, use the or button to select Photos and press the ENTER • OK button. “Navigate your iPod Photo Library directly from your iPod” will appear on the screen. -
Page 28: Playing Videos
USING TO YOUR iPod Playing Videos 1. In iPod Home menu, use the or button to select Videos Docking System for iPod and press the ENTER•OK button. Please Insert iPod 2. Use the or button to select from Movies, Music Videos, Music Photos TV Shows or Video Podcasts. Press the ENTER • OK button Videos to enter. Settings (“Navigate your iPod Video Library directly from your iPod” appears on the screen if your are using an iPod touch.) 3. Use the or button to navigate the iPod menu lists and select a video, press the ENTER • OK button to begin playback. (You... -
Page 29: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Make sure the AC power cord is connected. • Turn on the unit. The remote does not • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. • Point the remote at the remote sensor on the unit. • Replace the batteries in the remote with new ones. No sound or only a • Make sure that you’ve selected DVD mode. very low-level sound is • The system is in pause mode. Press the button to return to heard. normal play mode. • Fast forward or fast reverse is performed. Press the button to return to normal play mode. -
Page 30: Trouble Shooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) Bad Picture (snow, • Check the location of the antenna and adjust it if necessary. m u l t i p l e i m a g e s , • Make sure the antenna cable is firmly connected. distortion, blurry) • Make sure all input cables are firmly connected. No sound. • Increase the volume. • Check whether the mute function has been activated on the Remote Control. -
Page 31: Limited Warranty
LIMITED WARRANTY Notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................Important: Also keep your “Bill of Sale” as proof of purchase. Model no. Product name ........................ Type of set ............................Serial no. Invoice no........................Date purchased . Dealer name ...................... www.venturer.com FOR SERVICE AND REPAIR, PLEASE VISIT © 2009 VENTURER Electronics Inc. E - 31... -
Page 32: Limited Warranty
LIMITED WARRANTY VENTURER ELECTRONICS (“VENTURER”) makes the following limited warranty. This limited warranty extend to the original consumer purchaser and is limited to non-commercial use of the product. Ninety (90) Day Parts & Labor Warranty VENTURER products purchased in the United States or Canada are warranted to be free from defects in materials or workmanship for a period of ninety (90) days from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at VENTURER’s sole discretion. During a period of ninety (90) days from the effective warranty date, VENTURER will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States or Canada, you must first call our Customer Support Center at (800) 252-6123, during the hours listed in the box below. The determination of service will be made by VENTURER Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO VENTURER WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by VENTURER at its designated Service...
