Operation, cont'd
Press the Menu button to advance to the Picture Controls menu, or return to the
Default Cycle menu by allowing the 16-second time-out to occur.

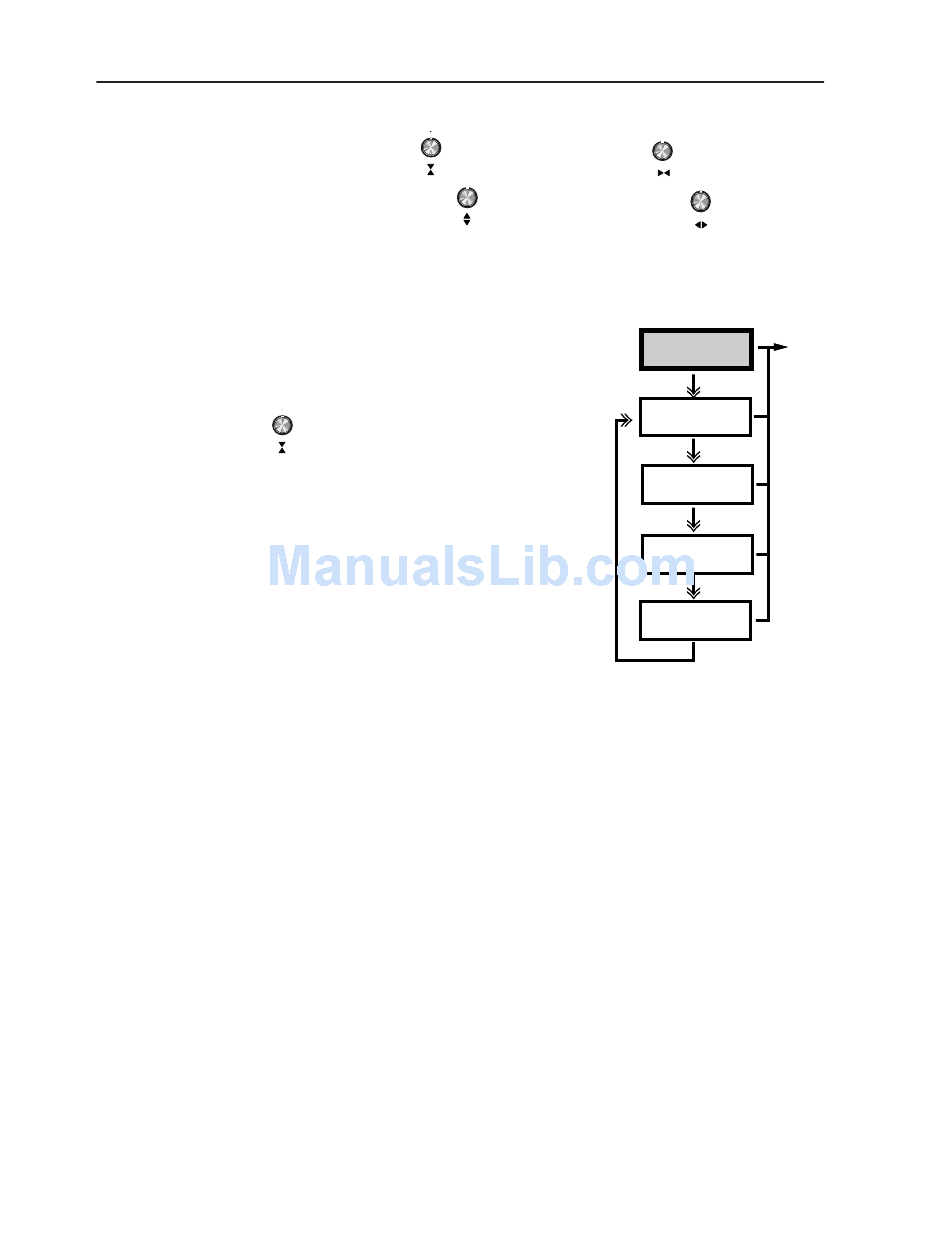

Picture Controls menu
The Picture Controls menu adjusts the contrast,
brightness, tint, and color of a selected window
the Active window selection button, is displayed
in the upper right corner of the LCD panel. Press
the Next button to advance to the Contrast
submenu, or press the Menu button to exit the
Picture Controls menu and advance to the
Window Blanking menu. A 16-second time-out
returns you to the Default Cycle menu if no
button is pressed from either this menu or the
following submenus.
Contrast submenu
Brightness submenu
Tint submenu
Color submenu
MVP 104GX Operation
3-10
Vertical sizing:
Vertical positioning:
image by rotating the Vertical sizing
knob. The picture control settings are
displayed on the bottom of the LCD
panel. The selected window number
(1, 2, 3, or 4), designated by pressing
Increase or decrease the picture contrast from 0 to 150 by rotating the
Vertical sizing knob . The selected window number (1, 2, 3, or 4),
designated by pressing the Active window selection button, is displayed in
the upper right corner of the LCD panel. Press the Next button to advance to
the Brightness submenu, or press the Menu button to exit the Contrast
submenu and advance to the Window Blanking menu.
Increase or decrease the picture brightness from 0 to 50 by rotating the
Vertical sizing knob. The selected window number (1, 2, 3, or 4), designated
by pressing the Active window selection button, is displayed in the upper
right corner of the LCD panel. Press the Next button to advance to the Tint
submenu, or press the Menu button to exit the Brightness submenu and
advance to the Window Blanking menu.
Increase or decrease the picture tint from 0 to 32 by rotating the Vertical
sizing knob. The selected window number (1, 2, 3, or 4), designated by
pressing the Active window selection button, is displayed in the upper right
corner of the LCD panel. Press the Next button to advance to the Color
submenu, or press the Menu button to exit the Tint submenu and advance to
the Window Blanking menu.
Increase or decrease the picture color from 0 to 100 by rotating the Vertical
sizing knob. The selected window number (1, 2, 3, or 4), designated by
pressing the Active window selection button, is displayed in the upper right
Horizontal sizing:
Horizontal positioning:
Controls
Contrast
000 – 150
Brightness
000 – 050
Tint
000 – 032
Color
000 – 100
1 – 4
1 – 4
1 – 4
1 – 4
