Range Hood
Use & Care / Installation Manual
Campana de cocina
Manual de uso y cuidado / instalaci6n
,,®
Models
Modelos
233.51303200
(30" wide - Stainless)
233.51363200
(36" wide - Stainless)
233.51423200
(42" wide - Stainless)
w-
Z_
O
HBO027
,_
INTENDED FOR DOMESTIC COOKING ONLY,_
_1, CONCEBIDO SOLO PARA USO DOMC:STICO ,_
V05526 rev.D
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Advertisement
Related Manuals for Kenmore 233.51363200
Summary of Contents for Kenmore 233.51363200

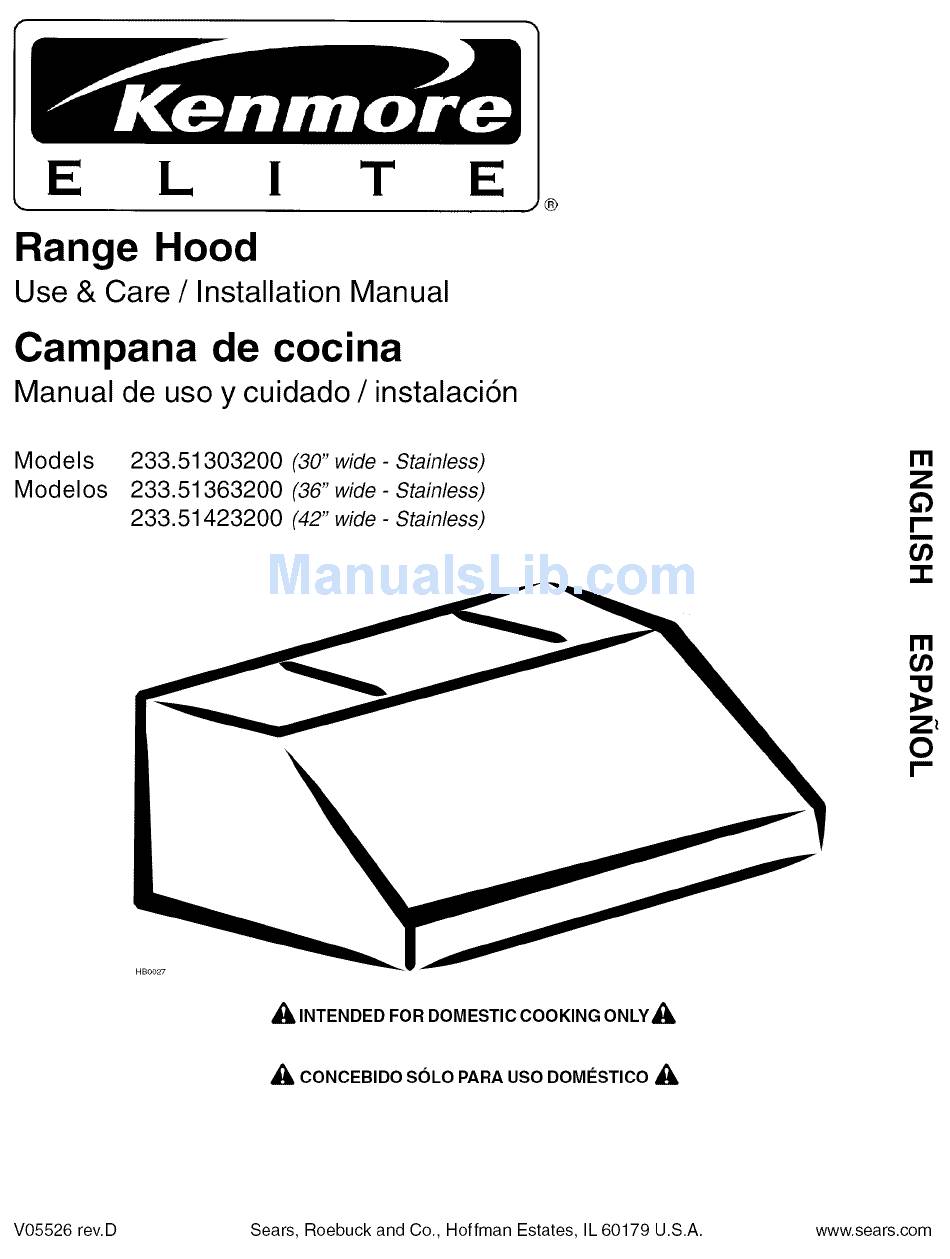

- Page 1 ,,® Range Hood Use & Care / Installation Manual Campana de cocina Manual de uso y cuidado / instalaci6n Models 233.51303200 (30" wide - Stainless) Modelos 233.51363200 (36" wide - Stainless) 233.51423200 (42" wide - Stainless) HBO027 INTENDED FOR DOMESTIC COOKING ONLY,_ _1, CONCEBIDO SOLO PARA USO DOMC:STICO ,_ V05526 rev.D Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
