m

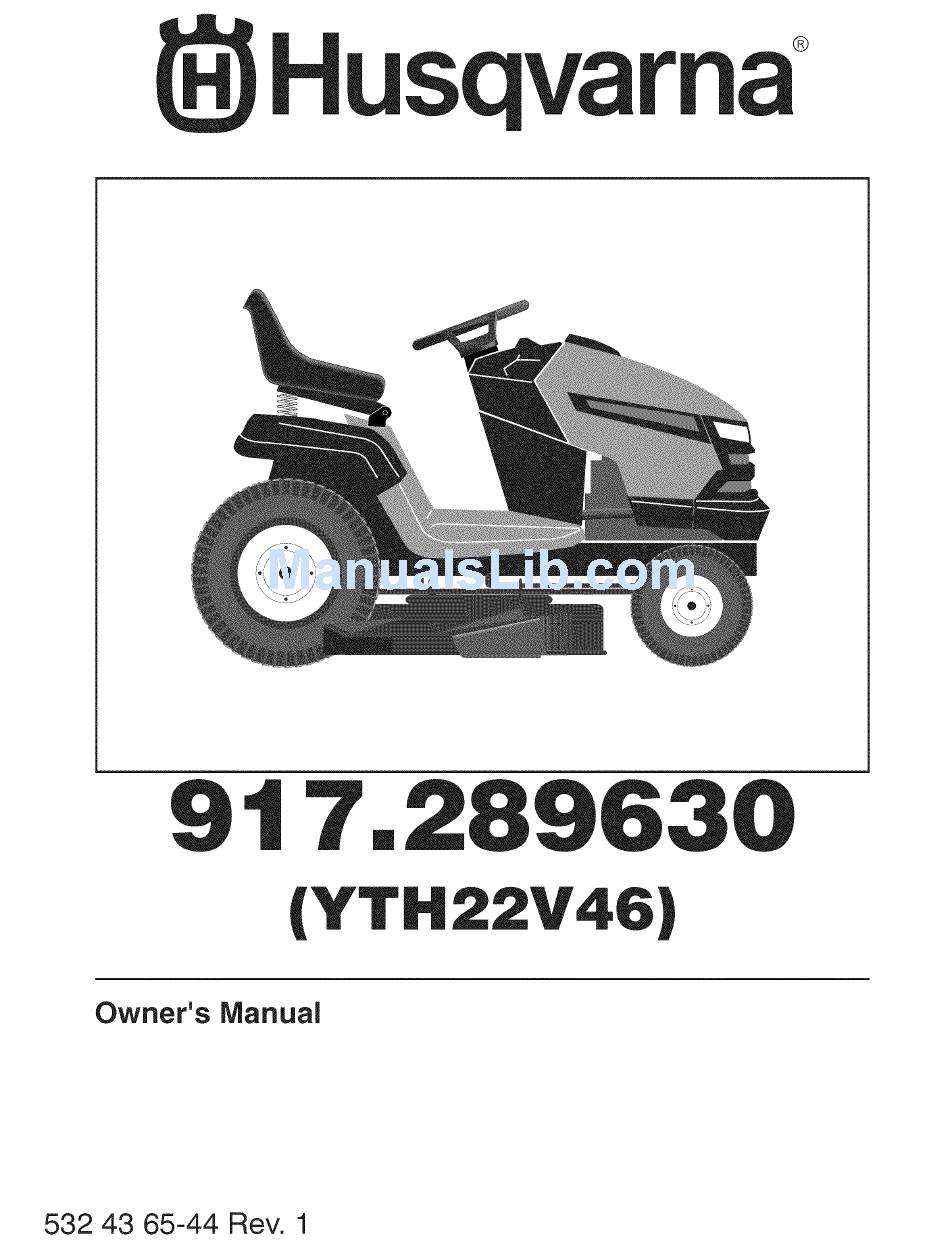

(YTH22V46)
Owner's
Manual
532 43 65-44 Rev. 1

Advertisement

loading

Summary of Contents for Husqvarna 917.289630

  • Page 1 ® (YTH22V46) Owner's Manual 532 43 65-44 Rev. 1...
  • Page 2 SAFETY RULES Safe Operation Practices for Ride=On Mowers DANGER: THiS CUTTING MACHINE iS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY iNSTRUCTiONS COULD RESULT iN SERIOUS iNJURY OR DEATH. • Slow down before turning. WARNING: in orderto prevent accidental •...
  • Page 3 SAFETY RULES & Safe Operation Practices for Ride=On Mowers ill. CHILDREN GENERAL SERVICE Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to • Never operate machine in a closed area. the machine and the mowing activity.
  • Page 4 PRODUCT SPECiFiCATiONS CUSTOMER RESPONSIBILITIES Gasoline Capacity 2.50 Gallons • Read and observe the safety rules. and type: Unleaded Regular • Follow a regular schedule in maintaining, caring for Oil Type (API-SG-SL): SAE 30 (above 32°F) and using your tractor. SAE 5W-30 (below 32°F) •...
  • Page 5 UNASSEMBLED PARTS Slope Sheet (1) Oil Drain Tube (2) Keys ASSEMBLY Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. TOOLS REQUIRED FOR ASSEMBLY LABEL A socket wrench set will make assembly easier. Standard wrench sizes are listed.
  • Page 6 ASSEMBLY Vf CHECKLIST NOTE: You may now roll your tractor off the skid. Follow the BEFORE YOU OPERATE YOUR NEW TRACTOR, WE instructions below to remove the tractor from the skid. WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE SATISFACTION FROM THIS...
  • Page 7 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. I",l CHOKE FAST SLOW REVERSE NEUTRAL HiGH IGNITION SWITCH ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT MOWER LIFT OPERATION...
  • Page 8 OPERATION KNOW YOUR TRACTOR READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Fig. 3 Our tractors conform to the applicable safety standards of the American National Standards Institute.
  • Page 9 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 10 OPERATION TO USE CRUISE CONTROL (J) (See Fig. 7) TO ADJUST GAUGE WHEELS (See Fig. 9) The cruise control feature can be used for forward travel Gauge wheels are properly adjusted when they are slightly only. offthe ground when mower is atthe desired cutting height in operating position.
  • Page 11 OPERATION TO TRANSPORT (See Figs. 3 and 11) REVERSE OPERATION SYSTEM (ROS) When pushing or towing your tractor, be sure to disengage Your tractor is equipped with a Reverse Operation System transmission by placing freewheel control in freewheeling (ROS). Any attempt by the operator to travel in the reverse position.
  • Page 12 OPERATION TO START ENGINE (See Fig. 3) BEFORE STARTING THE ENGINE When starting the engine for the first time or if the engine CHECK ENGINE OiL LEVEL has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.
  • Page 13 OPERATION PURGE TRANSMISSION MOWING TIPS Mower should be properly leveled for best mowing performance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual. freewheel lever while the engine CAUTION: Never engage or disengage • The left hand side of mower should be used for trim- running.
  • Page 14 MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS v" Check Brake Operation Check Tire Pressure Presence & ROS Check Operator Systems v" Check for Loose Fasteners Mower Blades Check/Replace Lubrication Chart Level Check Battery...
  • Page 15 MAINTENANCE BLADE CARE TRACTOR For best results mower blades must be kept sharp. Replace Always observe safety rules when performing maintenance. bent or damaged blades. BRAKE OPERATION proved by the manufacturer of your tractor. If tractor requires more than five (5) feet to stop at highest Using a blade not approved by the manu= CAUTION: Use only a replacement blade ap-...
  • Page 16 MAINTENANCE V=BELTS OIL DRAIN VALVE Check V-belts for deterioration and wear after 100 hours CLOSED of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. LOCKED POS,T,ON TRANSAXLE COOLING The transmission fan and cooling fins should be kept clean YELLOW CAP TUBE DRAIN...
  • Page 17 MAINTENANCE MUFFLER DECK WASHOUT PORT (See Fig. 19) Inspect and replace corroded muffler and spark arrester (if Your tractor's deck is equipped with a washout port on equipped) as it could create a fire hazard and/or damage. its surface as part of its deck wash system. It should be utilized after each use.
  • Page 18 SERVICE A Depress brake pedal fully and set parking brake. WARNING: TO AVOID SERIOUS iNJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: " Place attachment clutch in "DISENGAGED" position. " Turn ignition key to "STOP" and remove key. " Make sure the blades and all moving parts have completely stopped. "...
  • Page 19 ENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
  • Page 20 SERVICE A TO LEVEL MOWER • If adjustment is necessary, see step in Visual Adjust- ment instructions above. Make sure tires are properly inflated to the PSI shown on • Recheck measurements, adjust if necessary until both tires. If tires are over or under inflated, it may affect the sides are equal.
  • Page 21 ENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 30) (See Fig. 31) Park the tractor on level surface. Engage parking brake. The mower blade drive belt may be replaced without tools. For assistance, there is a belt installation guide decal on Park the tractor on level surface.
  • Page 22 SERVICE A TO REMOVE CABLES, REVERSE ORDER - TO REMOVE WHEEL (See Fig. 32) • BLACK cable first from chassis and then from the fully • Block up axle securely. charged battery. • Remove axle cover, retaining ring and washers to allow •...
  • Page 23 ENTS TO REPLACE HEADLIGHT BULB TRANSMISSION Raise hood. REMOVAL/REPLACEMENT • Pull bulb holder out ofthe hole in the backsideofthe grill. • Replace bulb in holder and push bulb holder securely Should your transmission require removal for service or back into the hole in the backside of the grill. replacement, it should be purged after reinstallation and •...
  • Page 24 STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS FROM FORMING IN ESSENTIAL FUELSYSTEM PARTS SUCH gasoline in the tank inside a building AS CARBURETOR,...
  • Page 25 TROU OOTI CORRECTION CAUSE PROBLEM 1. Out of fuel. Will not start Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter. Clean/replace air filter.
  • Page 26 BLESHOOTING PROBLEM CAUSE CORRECTION Check wiring, switches and connections. If not Engine continues Faulty operator-safety presence control corrected, contact an authorized service center/ system. to run when oper= department. ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. Replace blade.
  • Page 27 TRACTOR - - MODEL NUMBER YTH22V46 (289630) SCHEMATIC SCH11 BATTERY SOLENOID STARTER AMMETER FUSE _d_t_ ..(OPTIONAL) WHITE WHITE ' ©:© (CLUTCH ATT[_-C_M E NT C_-_TC H KE / GRAY (PEDAL (NOT IN REVERSE) ..i BLACK BLACK BLACK (NOT OCCUPIED) BLACK GRAY JUNCTION...
  • Page 28 TRACTOR - - MODEL NUMBER YTH22V46 (289630) ELECTRICAL T06S With 12V Outlet Option 1 87 With Service Minder Option "...
  • Page 29 TRACTOR - - MODEL NUMBER YTH22V46 (289630) ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4 532 19 32-28 Box Battery 532 17 61-38 Switch Interlock Push-In 532 40 02-52 Harness Socket Light w/4152J 532 00 41-52 Bulb Light 532 41 28-95...
  • Page 30 TRACTOR - - MODEL NUMBER YTH22V46 (289630) CHASSIS ....130 t 181 _ _234 /176 176f 183j -162 _159 152" chassis-tex TEX GT HUSQ 68...
  • Page 31 TRACTOR - - MODEL NUMBER YTH22V46 (289630) CHASSIS PART PART DESCRIPTION DESCRIPTION 532 43 07-71 Logo 532 40 41-37 Plug Hole Dash Lower Dash 532 41 45-80 Console Asm. Deck Lift 532 40 87-03 53241 10-48 Hood 532 40 30-48 Vent Side Hood RH Lens LH 532 40 30-78...
  • Page 32 TRACTOR - - MODEL NUMBER YTH22V46 (289630) DRIVE .125 , ._125 drive-tex pedal...
  • Page 33 TRACTOR - - MODEL NUMBER YTH22V46 (289630) DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle, Tufftorq K48BT 532 40 31-18 Handle Parking Brake Bolt 532 12 35-83 Key Square 872 11 08-22 819 13 13-16 Washer 13/32 x 13/18 x 18 Ga. 532 19 43-21 Spacer Retainer Washer...
  • Page 34 TRACTOR - - MODEL NUMBER YTH22V46 (289630) ENGINE f_F, _.,_--37 engine-tex_bs-2cyt_49...
  • Page 35 TRACTOR - - MODEL NUMBER YTH22V46 (289630) ENGINE PART DESCRIPTION Engine Briggs Model No. 407777-1195-B1 532 14 97-23 Muffler 532 19 43-20 Keeper Belt Engine 532 40 54-72 Pulley Engine 532 40 74-89 Tank Fuel 532 43 02-20 CapAsm 532 42 35-02 Control Throttle/Choke 532 41 83-58 Screw #10 x 0.750 BOS Thread...
  • Page 36 TRACTOR - - MODEL NUMBER YTH22V46 (289630) STEERING ASSEMBLY 6O 57 / \_ __59 58 .// //" /,'/ steering-tex HUSQHR...
  • Page 37 TRACTOR - - MODEL NUMBER YTH22V46 (289630) STEERING ASSEMBLY PART DESCRIPTION 532 41 64-80 Wheel, Steering Axle Cast Iron 532 19 59-68 532 40 30-87 Spindle Asm., LH 532 40 30-88 Spindle Asm., RH 532 12 49-31 Washer, Thrust 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
  • Page 38 TRACTOR - - MODEL NUMBER YTH22V46 (289630) MOWER DECK 195_122 j123 z195 119_ 69 ...._119 46 tex It pred 11 rl...
  • Page 39 TRACTOR - - MODEL NUMBER YTH22V46 (289630) MOWER DECK KEY PART PART DESCRIPTION DESCRIPTION Arm Brake Mower 532 41 08-63 Mower Housing 532 19 94-77 Cover Mandrel RH 532 40 51-38 532 40 55-06 Linkage Brake Cover Mandrel LH 532 40 30-12 532 40 55-07 Handle, Clutch Cable V-Belt...
  • Page 40 TRACTOR - - MODEL NUMBER YTH22V46 (289630) MOWER LIFT 101" *Key 9t may be substituted for Key 10t PART PART DESCRIPTION DESCRIPTION 532 42 20-27 Shaft Asm., Lift 817 00 08-12 Screw 3/8-18 x .75 Smgml Tap/R.Z 532 19 52-31 Lever Asm., Lift RH 532 19 52-70 Link Lift Susp.
  • Page 41 TRACTOR - - MODEL NUMBER YTH22V46 (289630) SEAT ASSEMBLY seat-tex_6.5SL_3 PART PART DESCRIPTION DESCRIPTION 532 42 40-68 Seat Nut, Lock 5/16-18 unc 873 80 05-00 Handle Slide Seat 532 18 01-66 Bracket Pivot Fender 532 19 76-61 532 19 82-00 Spring Latch Seat 532 14 06-75 Strap, Asm Fender...
  • Page 42 TRACTOR - - MODEL NUMBER YTH22V46 (289630) DECALS PART PART DESCRIPTION DESCRIPTION 532 41 16-58 Decal 532 14 50-05 Decal, Battery Dnge/Poi Fender Warning 532 42 91-96 Decal Hood 532 18 03-98 Decal, Mower V-Belt Schematic 532 43 34-25 Decal Hood Panel SD 532 18 89-80 Decal, Bypass...
  • Page 43 TRACTOR - - MODEL NUMBER Y'rH22V46 (289630) BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 1195-B1 1330 REPAIR MANUAL 48 SHORT BLOCK 11 1036 EMISSIONS LABEL II 1058 OPERATOR'S MANUAL 1329 REPLACEMENTENGINEI[ LiQUiD GASKET AND THE BREATHER GASKET ARE iNTERCHANGEABLE 121 CARBURETOR OVERHAUL 358 ENGINE GASKET SET...
  • Page 44 TRACTOR - - MODEL NUMBER YTH22V46 (289630) BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 1195-B1 i _isT 628_ 1022 617,_,? i _zY 1023,_ 1022 _' , "_ 1022 4o,I_ 1029 1040 216ii...
  • Page 45 TRACTOR - - MODEL NUMBER YTH22V46 (289630) BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 1195-B1 ........... 615 o 14LZ4_J r(t 1128 _ _'_ 150 oi 668 l_II ..2319 108¢"C:) ../ 987 ....:I \k[>' 1353 d<bY ,<:: :) 276 (.<_) ]_M(_ 1124_2...
  • Page 46 TRACTOR - - MODEL NUMBER YTH22V46 (289630) BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 1195-B1 PART PART DESCRiPTiON DESCRIPTION Nozzle-Carburetor 795118 Cylinder Assembly 699726 499585 Bushing/Seal Kit (Magneto Side) 690979 Key-Timing Gasket-Nozzle • 391086s Seal-Oil (Magneto Side) 690995 796230 Sump-Engine 699727 Retainer-Solenoid...
  • Page 47 TRACTOR - - MODEL NUMBER Y'rH22V46 (289630) BRIGGS ENGINE - MODEL NUMBER 407777, TYPE NUMBER 1195-B1 PART PART DESCRIPTION DESCRIPTION 691037 Tube-Dipstick 1017 796214 Screen-Oil Pump Armature-Starter (Service by 1022 690971 Gasket-Rocker Cover (Liquid Gasket and Rocker Cover Gas 497595 Starter Motor Only, Reference 309) ket are Interchangeable) 690552...
  • Page 48 TRACTOR - - MODEL NUMBER 289630 TUFFTORQ TRANSAXLE MODEL NUMBER K46BT MODI_LE K46BT 7A646084180 LES ILLUSTRATIONS NE PEUVENT PAS REPRtESENTER EXACTEMENTE MODI_LE @--83 _--34 --10 78--...
  • Page 49 TRACTOR - - MODEL NUMBER 289630 TUFFTORQ TRANSAXLE MODEL NUMBER K46BT PART DESCRIPTION 414395 VENT VALVE 15 414396 MAGNET 414397 MAGNET HOLDER 415923 PUMP SHAFT/BEARING 414398 BYPASS LEVER 414399 SEALING CAP 30 414400 SNAP RING C 35 414401 O-RING IA PIOA 414402 SEAL TC 153507 414403...
  • Page 50 SERVICE NOTES...
  • Page 51 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION SLO_ ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow WARNING: To avoid serious injury, operate your tractor up and slopes greater...
  • Page 52 Husqvarna 05.26.10 JA Printed in the U.S.A.
