Operator's Manual
OPERATOR'S MANUAL
®
Portable Power 1150
Jump Starter/DC
Power Source
Air Compressor,
inflator and AC Power
Model No.
200.71988
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
00-99-000865/0808
Advertisement
Related Manuals for DieHard 200.71988
Summary of Contents for DieHard 200.71988

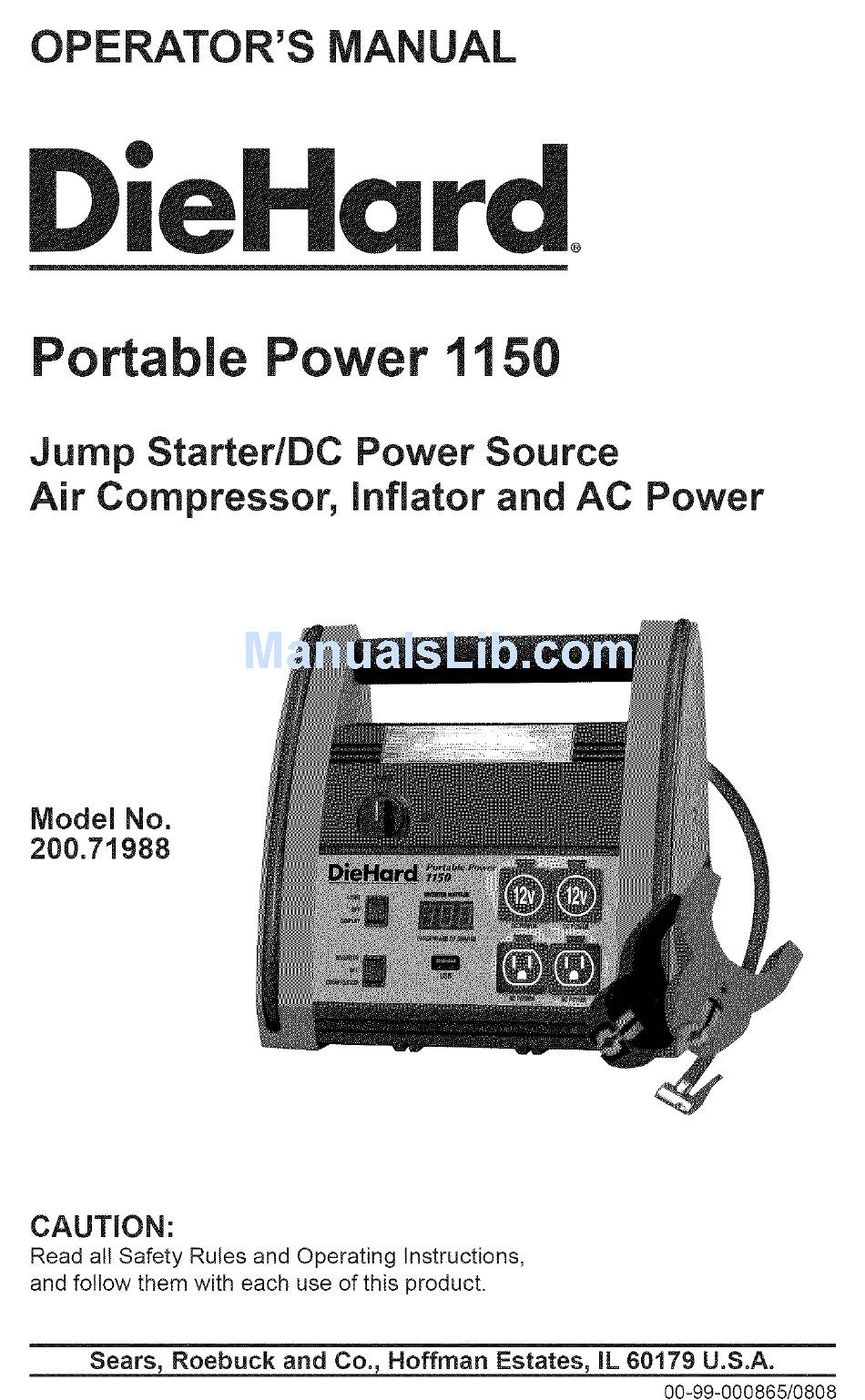

- Page 1 OPERATOR'S MANUAL ® Portable Power 1150 Jump Starter/DC Power Source Air Compressor, inflator and AC Power Model No. 200.71988 CAUTION: Read all Safety Rules and Operating Instructions, and follow them with each use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
- Page 2 Sears store or other DieHard outlet in the United States for free replacement. This warranty does not include light bulbs, or the inflator hose and adapters,...
- Page 3 iMPORTANT: CHARGE iMMEDiATELY AFTER PURCHASE IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL. Charge the 1150% internal battery immediately upon purchase, every 30 days and after every use. Use in a welt ventilated space. Contains a sealed, non-spitlable lead-acid battery. Must be disposed of properly.
- Page 4 JUMP START ON/OFF Switch. Turn on to activate clamps USB. Inverter/Compressor switch. This switch turns the inverter or air compressor on and off. Digital Display - indicates internal and vehicle's battery percentage charge and displays a code when improperly connected to battery.
- Page 5 IMPORTANT: '_CHARGE IMMEDIATELY AFTER PURCHASE '_KEEP FULLY CHARGED. This Portable Power 1150 comes with a sealed, non-spitlabte DieHard maintenance-free lead-acid battery. This internal battery is specifically designed to deliver high power jump-starting as welt as repetitive deep cycling performance. To charge the Portable Power 1150's internal battery: Check the internal battery's charge level by pressing the switch marked DISPLAY.
- Page 6 Use in a well-ventilated area. Keep hands, hair, clothing and jewelry clear of fan blades, belts, pulleys and other parts that may cause injury. Turn ignition off before making cable connections. Place the 1150 on a flat, stable surface near the vehicle battery and away from moving engine parts.
- Page 7 5.1 Tocheck t he1150's i nternal battery's status, push thepower switch o n thefront o fthe1150 t otheDISPLAY position. The display willshow the charge p ercentage oftheinternal battery. 5.2 When connected tothevehicle, thedisplay s hows t hevehicle's battery voltage. When connected and intheON position, thedisplay s hows t he equalized voltage b etween thevehicle's battery a ndinternal battery.
- Page 8 12V DC Electrical Device Example Run=Time Chart Appliance Type Estimated Power Estimated Time* Fluorescent Lights, Cellular Phones 4 Watts 50 Hours Radios, Depth Finders, Fans 9 Watts 25 Hours Camcorders, DVD Players, Spotlights 15 Watts 13 Hours Electrical Tools, Bilge Pumps 24 Watts 7.3 Hours Electric Coolers...
- Page 9 The 1150 is equipped with a built in door, located on the back of the unit, to make replacing the internal battery easy and efficient. To order a replacement battery, call: 1-800-SEARS-64. Be sure that all switches are in the OFF position. Remove clamps from storage pegs on the back of the 1150.
- Page 10 CAUTION: Read instructions oftheproduct being inflated b efore using theinflator. Avoid overinflation, donot e xceed t hemanufacturer's recom- mended pressures. Donotleave theinflator unattended during use. 11.1 Attach t hecorrugated hose with endadapter tothehigh-flow i nflator outlet located d irectly a bove t heinflator ON / OFF switch on the back of the 1150.
- Page 11 Important Safety Instructions: 14.1 Keep the 1150 well ventilated in order to properly disperse heat generated while it is in use. Make sure there are several inches of clearance around the top and sides and do not block the vents on the back of the 1150. 14.2 Make sure the 1150 is not close to any potential source of flammable fumes, gases or clothing.
- Page 12 To operate a 110V AC device: 16.1 Open the protective cover of the AC power outlet on the front panel of the Portable Power 1150. 16.2 Plug the 110V AC device into the AC power outlet, and place the Inverter/ Compressor Switch in the INVERTER position.
- Page 13 IMPORTANT: * CHARGE IMMEDIATELY AFTER PURCHASE * KEEP FULLY CHARGED. Charge the 1150 internal battery immediately upon purchase, every 30 days and after every use. All batteries are affected by temperature. The ideal storage temperature is between 40 and 70 degrees Fahrenheit. The internal battery will gradually self-discharge (lose power) over time and more quickly in warm environ- ments.
- Page 14 Internal Battery Type DieHard Maintenance-free AGM Lead-acid Nominal Voltage 12v DC Capacity 22 Ah DC Power Outlet (Max. Continuous Load) 15A per outlet Built-in Light Bulb (Replaceable) 5w/12v DC (Base type BA9S) Jumper Cables 4-gauge AWG, 24 Inches Dimensions (H xW x D) 12 H x 11.5 x 10.5 Inches...
