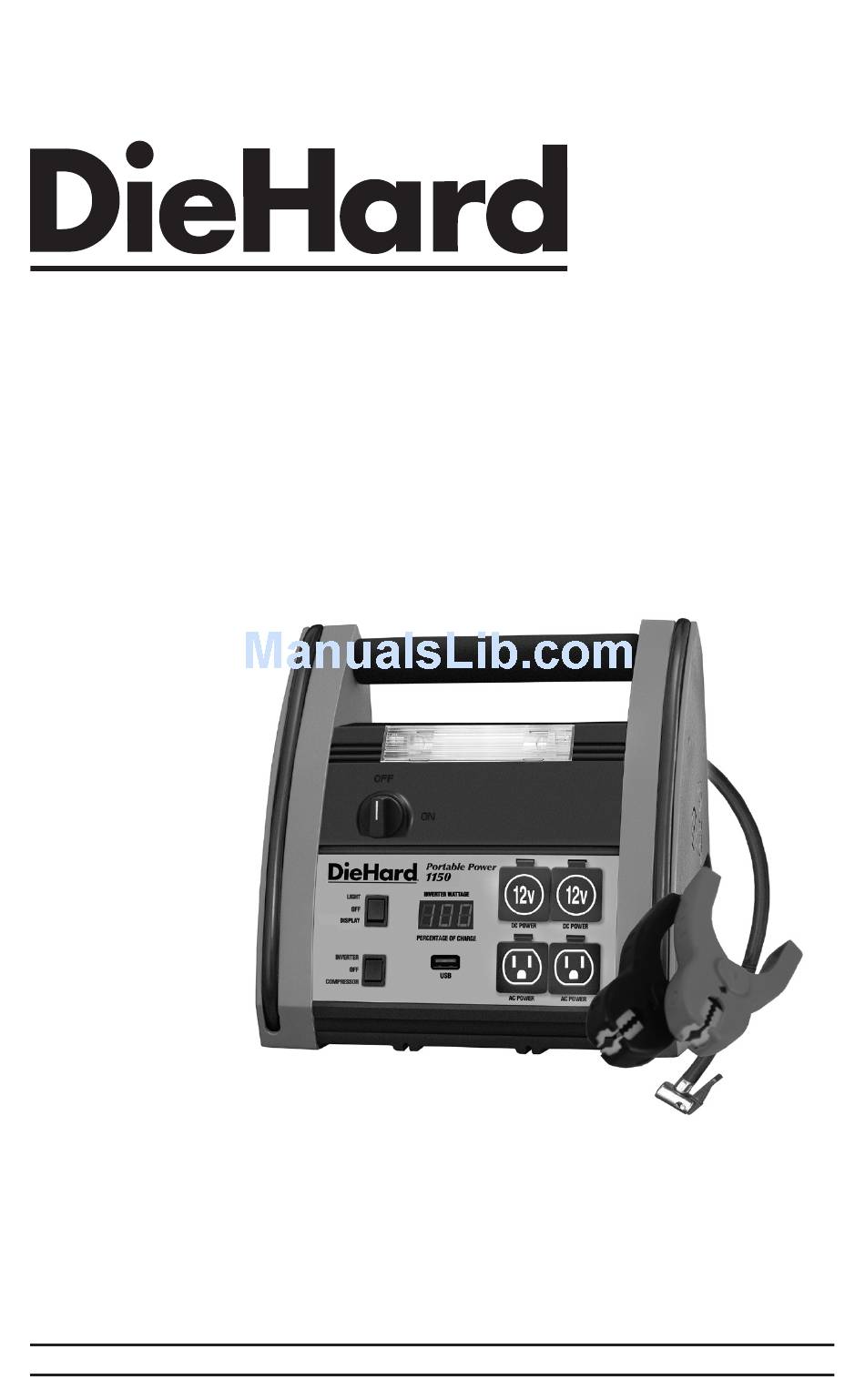

OPERATOR'S MANUAL
®
Portable Power 1150
Jump Starter/DC Power Source
Air Compressor, Inflator and AC Power
Model No.
200.71988
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
00-99-000865/0808
Advertisement
Table of Contents
Related Manuals for DieHard 200.71988
Summary of Contents for DieHard 200.71988
- Page 1 Jump Starter/DC Power Source Air Compressor, Inflator and AC Power Model No. 200.71988 CAUTION: Read all Safety Rules and Operating Instructions, and follow them with each use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 00-99-000865/0808...
-
Page 3: Table Of Contents
DieHard product fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Sears store or other DieHard outlet in the United States for free replacement. -
Page 4: Important Safety Instructions
IMPORTANT: CHARgE IMMEDIATELY AfTER PURCHASE IMPORTANT: READ AND SAvE THIS SAfETY AND INSTRUCTION MANUAL. IMPORTANT SAfETY INSTRUCTIONS Charge the 1150’s internal battery immediately upon purchase, every 30 days and after every use. Use in a well ventilated space. Contains a sealed, non-spillable lead-acid battery. Must be disposed of properly. -
Page 5: Product Features
DIEHARD PORTAbLE POwER 1150 JUMP-STARTER/DC POwER SOURCE 16 17 1. JUMP START ON/OFF Switch. 2. Inverter/Compressor switch. This 3. Digital Display – indicates internal 4. Plastic lens cover 5. Two, light bulbs 6. Two, 12V DC power outlets 7. Two, 110V AC household power 8. -
Page 6: Charging The Internal Battery
CHARgINg THE INTERNAL bATTERY IMPORTANT: • CHARgE IMMEDIATELY AfTER PURCHASE • KEEP fULLY CHARgED. This Portable Power 1150 comes with a sealed, non-spillable DieHard maintenance-free lead-acid battery. This internal battery is specifically designed to deliver high power jump-starting as well as repetitive deep cycling performance. To charge the Portable Power 1150’s internal battery: Check the internal battery’s charge level by pressing the switch marked DISPLAY. -
Page 7: Jump-Starting A Vehicle Engine
Customer Technical Assistance number: 1-800-SEARS-64. Connect the black clamp to an unpainted and unmoving part of the vehicle chassis or engine block. -
Page 8: Digital Display Functions
DIgITAL DISPLAY fUNCTIONS To check the 1150’s internal battery’s status, push the power switch on the front of the 1150 to the DISPLAY position. The display will show the charge percentage of the internal battery. When connected to the vehicle, the display shows the vehicle’s battery voltage. -
Page 9: Using The Usb Port
12v DC Electrical Device Example Run-Time Chart Appliance Type Fluorescent Lights, Cellular Phones Radios, Depth Finders, Fans Camcorders, DVD Players, Spotlights Electrical Tools, Bilge Pumps Electric Coolers Air Compressors, Car Vacuums *NOTE: Estimated run-times. Actual time may vary. Times are based on the internal battery being new, fully charged and operating at room tem- perature. -
Page 10: Internal Battery Replacement
The 1150 is equipped with a built in door, located on the back of the unit, to make replacing the internal battery easy and efficient. To order a replacement battery, call: 1-800-SEARS-64. Be sure that all switches are in the OFF position. Remove clamps from storage pegs on the back of the 1150. -
Page 11: Using The Inflator
USINg THE INfLATOR CAUTION: Read instructions of the product being inflated before using the inflator. Avoid over inflation, do not exceed the manufacturer’s recom- mended pressures. Do not leave the inflator unattended during use. 11.1 Attach the corrugated hose with end adapter to the high-flow inflator outlet located directly above the inflator ON / OFF switch on the back of the 1150. 11.2 The main accessory adapter attached to the corrugated hose accommo- dates up to 4 sizes. If another size is needed an additional adapter can be attached to the end of the main accessory adapter. 11.3 Insert the adapter into the product to be inflated. -
Page 12: Before Using The Inverter
bEfORE USINg THE INvERTER Important Safety Instructions: 14.1 Keep the 1150 well ventilated in order to properly disperse heat generated while it is in use. Make sure there are several inches of clearance around the top and sides and do not block the vents on the back of the 1150. 14.2 Make sure the 1150 is not close to any potential source of flammable fumes, gases or clothing. -
Page 13: Powering The 110V Ac Device
POwERINg A 110v AC DEvICE To operate a 110V AC device: 16.1 Open the protective cover of the AC power outlet on the front panel of the Portable Power 1150. 16.2 Plug the 110V AC device into the AC power outlet, and place the Inverter/ Compressor Switch in the INVERTER position. -
Page 14: Storage And Maintenance
Replace the lens cover. Test the light by switching the light on and off. 18.2 Customer Technical Assistance Customer technical assistance is available Monday-Friday, 7 am to 4:30 pm Central Time by phoning 1-800-SEARS-64. • •... -
Page 15: Specifications
Input Voltage Range AC Outlets REPLACEMENT PARTS Parts and customer technical assistance are available Monday-Friday, 7 am to 4:30 pm Central Time at 1-800-SEARS-64. Air Compressor Accessory Kit: (3 Hose Adaptors) 00-99-000599 Inflator Accessory Kit: (Inflator / Deflator Hose, Unit End and 3 Hose Adaptors) 00-99-000598... - Page 16 • •...
