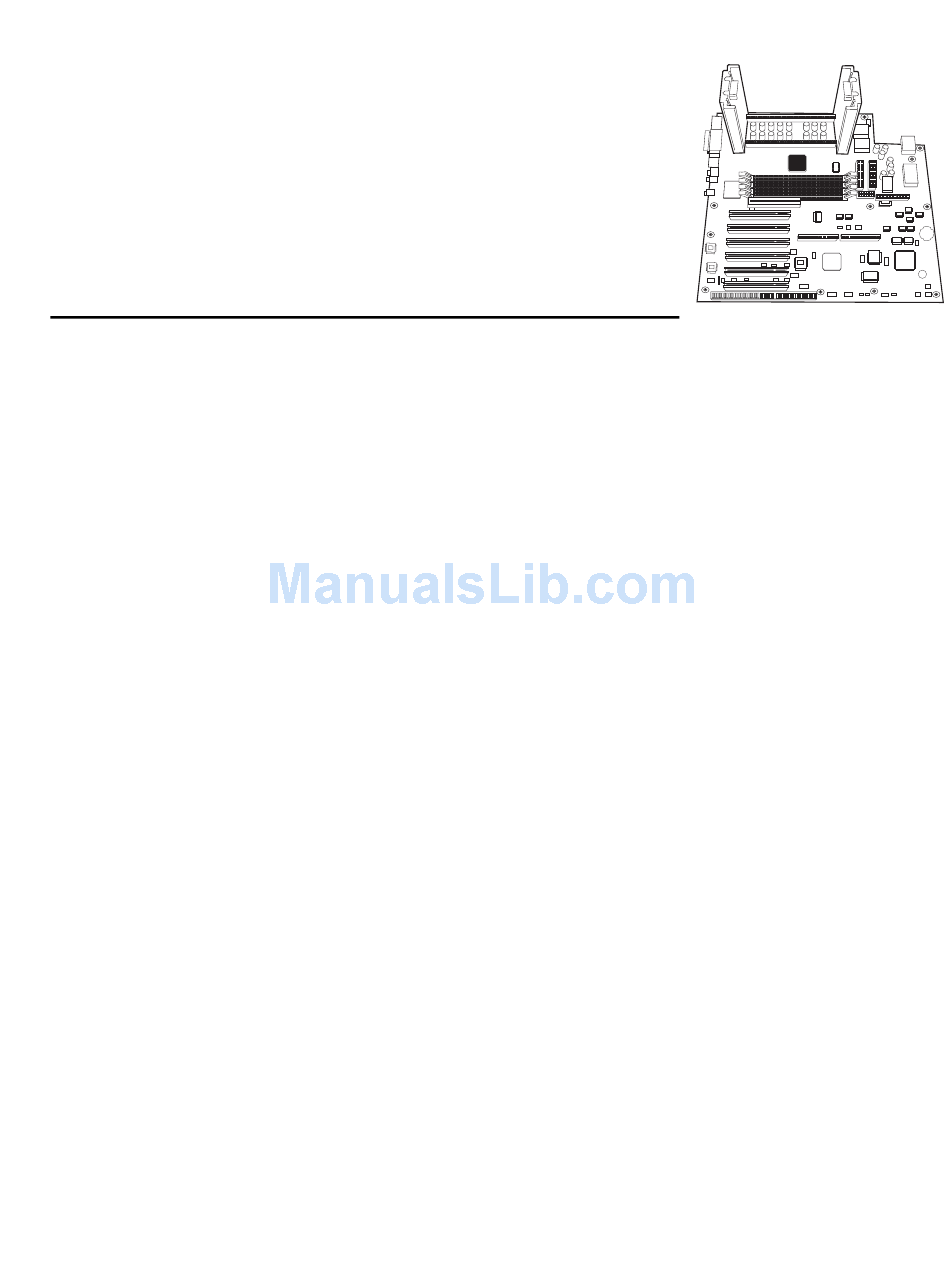

  • Page 1 MS440GX Motherboard Product Guide Order Number: 713653-001...

  • Page 2: Revision History

    Revision History Revision Revision History Date -001 Initial release of the MS440GX Motherboard Product Guide. May 1998 Disclaimer Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Intel assumes no responsibility for any errors that may appear in this document.

  • Page 3: Table Of Contents

    Contents Acronyms ......................... 9 1 Motherboard Features Summary of Features......................12 Board Layout........................13 Motherboard Part-Function Table..................14 Microprocessor........................15 Processor Packaging ......................15 Second Level Cache ......................15 Processor Options.......................15 Form Factor.........................16 Chipset..........................16 82443GX PCI/A.G.P. Controller (PAC) (H)................17 ® Intel 82371EB Xcelerator (PIIX4E) (Q) ................18 ®...
  • Page 4 MS440GX Motherboard Product Guide How to Remove a Processor....................43 How to Upgrade a Processor ....................44 How to Install the Termination Card ..................45 How to Remove the Termination Card ................46 How to Install Memory......................47 How to Remove Memory.....................48 How to Replace the CR2032 Lithium Battery (M) ..............49 How to Clear Passwords .....................51 3 Using the BIOS Setup Program Setup Program Modes ......................54...
  • Page 5 Contents Advanced Configuration and Power Interface (ACPI)............75 System States and Power States ................75 Wake Up Devices and Events ..................76 Plug and Play ......................76 BIOS Support ......................76 Language Support.......................76 OEM Logo or Scan Area .....................76 USB Legacy Support......................77 BIOS Security Features.......................77 Recovering BIOS Data ......................78 5 Technical Reference Front Panel Connectors (L) ....................80...
  • Page 6 MS440GX Motherboard Product Guide A Error Messages BIOS Beep Codes ......................112 BIOS Error Messages .......................113 Port 80h POST Codes.......................115 B Regulatory and Integration Information Regulatory Compliance .....................122 Product Certification Markings...................122 Installation Precautions .....................122 Installation Instructions......................123 C Environmental Specifications and Reliability Information Environmental Specifications ....................126 Reliability Information ......................126 D Specifications and Customer Support...
  • Page 7 Contents Thermally Sensitive Components ................94 Power Connectors ......................96 Peripheral Interface Connectors .................99 Security and Hardware Management Connectors ............100 Tables Motherboard Part-Function Table ................14 PCI/A.G.P. Controller Features ..................17 82371EB Xcelerator Features ..................18 DIMM Sizes Supported....................21 I/O Controller Components ..................22 LAN Controller Functions....................23 Audio Subsystem Resources..................25 Power Usage......................26 DC Voltage Tolerances and Estimated Current Requirements...
  • Page 8 MS440GX Motherboard Product Guide Connector Groups ......................89 ATAPI-Style Telephony Connector(J1E1)..............92 ATAPI CD Audio Connector (J2E1) ................92 External Speaker Connector (J12A1) .................92 MIDI/Joystick Connector (J2E2) .................92 Fan Connectors ......................94 Thermal Considerations for Components ..............95 1x6 Power Connector ....................97 Primary and Secondary Power Supply Connectors (J10H1)........97 VRM Connector (J13J1) .....................98 SCSI LED Connector (J10A1) ..................99 Front and Rear Chassis Intrusion Connectors ............101...

  • Page 9: Acronyms

    Acronyms Acro. Meaning Acro. Meaning Acro. Meaning Acro. Meaning ACPI POST Advanced Error checking Interrupt Power-on self configuration and correcting request test and power interface ADPCM ECHS Adaptive Extended Local area Special differential cylinder head network circumstance pulse code sector instructions modulation A.G.P.
  • Page 10 MS440GX Motherboard Product Guide...

  • Page 11: Motherboard Features

    1 Motherboard Features The MS440GX is designed specifically for the DCC, MCAD, and EDA markets with a high performance workstation. This chapter describes the features of the MS440GX motherboard. The chapter covers the following topics: Topic Page Summary of Features Board Layout Motherboard Part-Function Table Microprocessor...

  • Page 12: Summary Of Features

    MS440GX Motherboard Product Guide Summary of Features The MS440GX motherboard features are summarized below. Form factor Custom ATX (12 inches by 13 inches) Processor(s) Two Slot 2 connectors ™ ® Support for one or two Pentium II Xeon processors 100 MHz host bus speed Up to 1 MB of L2 cache support on each processor Chipset ®...

  • Page 13: Board Layout

    Motherboard Features Board Layout The illustration below is a picture of the MS440GX integrated motherboard. The main board components are identified by alphabetical callouts. This board supports the Slot 2 processor (DS2P) family. It is a custom ATX form factor (12”x13”) board with an ATX I/O panel.

  • Page 14: Motherboard Part-Function Table

    MS440GX Motherboard Product Guide Motherboard Part-Function Table This table identifies the motherboard components called out in Figure 1 and defines the functional purpose of each. Table 1. Motherboard Part-Function Table Callout ID Part (Component) Function Intel E28F004BXT80 4 Mbit Flash Flash upgradable.

  • Page 15: Microprocessor

    Motherboard Features Microprocessor ® The Intel MS440GX motherboard supports one or two Pentium II Xeon 400 or 450 MHz processors, 100 MHz host bus speeds, and L2 caches up to 1MB in size. The processor’s VID pins automatically program the voltage regulator on the motherboard to the required processor voltage for the Boot (P0) Processor only.

  • Page 16: Form Factor

    MS440GX Motherboard Product Guide Form Factor The motherboard is designed to fit into a custom ATX form factor chassis. The illustration below shows the board mounting hole locations. The mounting holes closest to the Slot 2 connectors are used for mounting the processor retention mechanism to the board and chassis.

  • Page 17: 82443Gx Pci/A.g.p. Controller (Pac) (H)

    Motherboard Features 82443GX PCI/A.G.P. Controller (PAC) (H) The Intel 82443GX PCI/A.G.P. Controller (PAC) provides the following functions: Bus-control signals Address paths Data paths for transfers between the processor’s host bus, PCI bus, the A.G.P., and main memory. Table 2 lists the PAC features and the functionality each feature supports. Table 2.

  • Page 18: Intel ® 82371Eb Xcelerator (Piix4E) (Q)

    MS440GX Motherboard Product Guide ® Intel 82371EB Xcelerator (PIIX4E) (Q) ® The Intel PIIX4E is a multifunction PCI device implementing the PCI-to-ISA bridge, PCI IDE functionality, Universal Serial Bus (USB) host/hub function, and enhanced power management. Table 3 lists the PIIX4E features and the functionality each feature supports. Table 3.

  • Page 19: Intel ® 82093Aa I/O Advanced Programmable Interrupt Controller (Ioapic)

    Motherboard Features ® Intel 82093AA I/O Advanced Programmable Interrupt Controller (IOAPIC) ® The Intel 82093AA I/O Advanced Programmable Interrupt Controller (IOAPIC) provides interrupt management and incorporates both static and dynamic symmetric interrupt distribution across all processors in a multiprocessor system. The 82093AA IOAPIC features 24 interrupts as follows: 13 ISA interrupts Four PCI interrupts...

  • Page 20: Real-Time Clock, Cmos Ram, And Battery

    MS440GX Motherboard Product Guide Real-Time Clock, CMOS RAM, and Battery The real-time clock provides a time-of-day clock and a multicentury calendar with alarm features and century rollover. The clock is compatible with DS1287 and MC146818 components and it supports 256 bytes of battery-backed CMOS RAM in two banks that are reserved for BIOS use.

  • Page 21: Accelerated Graphics Port (A.g.p.) Support

    Motherboard Features Accelerated Graphics Port (A.G.P.) Support The Accelerated Graphics Port (A.G.P.) is a high-performance interconnect for graphic-intensive applications, such as 3D applications. A.G.P. is independent of the PCI bus. It is intended for exclusive use with graphical display devices. A.G.P. provides these performance features: Pipelined-memory read and write operations that hide memory access latency Demultiplexing of address and data on the bus for near 100 percent bus efficiency AC timing for 133 MHz data transfer rates, allowing data throughput of 528 MB/sec...

  • Page 22: Input/Output (I/O) Controller (O)

    MS440GX Motherboard Product Guide Input/Output (I/O) Controller (O) The I/O controller handles the exchange of information between the processor and external devices like the mouse and keyboard or a printer that are connected to the computer. The National Semiconductor PC97307 I/O Controller is an ISA Plug and Play compatible multifunction I/O device with components and features listed in the table below.

  • Page 23: 82558 Pci Lan Controller (D)

    Motherboard Features 82558 PCI LAN Controller (D) The Intel 82558 LAN Controller provides the functions listed in Table 6 below. Table 6. LAN Controller Functions Function Includes: CSMA/CD Protocol Engine PCI bus interface (Rev 2.1 compliant) DMA engine for movement of commands, status, and network data across the PCI bus Integrated physical layer interface Complete functionality necessary for the 10Base-T...

  • Page 24: Alert On Lan Component

    MS440GX Motherboard Product Guide Alert On LAN Component The Alert on LAN component is a companion device to the Intel 82558 LAN controller. Together, these devices provide a management interface between a remote management console (or management server) and a client system monitoring instrumentation. †...

  • Page 25: Audio Drivers And Utilities

    Motherboard Features Table 7. Audio Subsystem Resources Resource IRQ (Options) DMA Channel (Options) I/O Address (Options) † 5 best choice 0 best choice 210-21Fh Sound Blaster 220-22Fh best choice (DMA playback, DMA / IRQ shared 9 best choice 230-234h with Windows Sound System 240-24Fh capture) 250-25Fh...

  • Page 26: Power Supply

    MS440GX Motherboard Product Guide Power Supply Table 9 lists the power specifications for a computer that contains a motherboard with two 400 MHz Pentium II Xeon processors, 128 MB SDRAM, a 3.5-inch diskette drive, an WD Caviar 3320 3.3 GB Ultra ATA hard drive, a Hitachi CPR 8330 IDE CD-ROM, and a Diamond Viper 330 A.G.P.

  • Page 27: Expansion

    Motherboard Features Expansion The MS440GX motherboard has seven expansion slots for installing add-cards such as video or network cards that expand the capabilities of your computer. The expansion slots available are as follows: Five PCI slots One shared slot (for a PCI or ISA card) One AGP 2X slot Basic Input/Output System (BIOS) The MS440GX motherboard uses an Intel/Phoenix BIOS which is stored in flash memory.

  • Page 28: Bios Flash Memory Organization

    MS440GX Motherboard Product Guide BIOS Flash Memory Organization The Intel E28F004BXT80 4-Mbit flash component is organized as 512 KB x 8 bits and is divided into areas as described in Table 10. The table shows the addresses in the ROM image in normal mode (the addresses change in BIOS Recovery Mode).

  • Page 29: Installation And Removal Procedures

    2 Installation and Removal Procedures This chapter explains how to remove and install the MS440GX motherboard and its various component parts. The chapter covers the following topics: Topic or Procedure Page Safety Considerations How to Install the Processor Retention Mechanism How to Install a Single Processor How to Install a Second Processor How to Remove and Install the Motherboard...

  • Page 30: Safety Considerations

    MS440GX Motherboard Product Guide Safety Considerations CAUTION Before removing or installing the motherboard or any other system component, observe the following safety guidelines: See Appendix B: Regulatory & Integration Information for safety requirements and precautions. Always follow the steps in the procedure in the correct order (i.e., as written). Set up a log to record identification information about your computer.

  • Page 31: Materials Required

    Installation and Removal Procedures Materials Required: 2 40mm fans 2 DRM stands (see Figure 3) 4 Fan screws (P/N 656880-002) 2 DRM tops (see Figure 3f) 2 Processors (CPUs) with attached heatsinks (see Figure 3g) 2 Retention clips (see Figure 3c) 1 Small tie wrap Procedure To: Install DRM Fans and the Processor Retention Mechanism Step...

  • Page 32: 3B. Procedure Step 5: Fan Positioning/Air Flow

    MS440GX Motherboard Product Guide Procedure (continued) Step Action Orient power cables to the upper left corner as illustrated in Step 3. Run the power cables down the left side of the DRM base as illustrated in Step 3. Tie wrap the cables leaving approximately 2 inches of cable hanging beyond the base. Attach fans in the DRM stand with 2 fan screws placed in opposite corners.

  • Page 33: 3D. Procedure Step 7: Fans And Fan Header In Chassis

    Installation and Removal Procedures Procedure (continued) Step Action Take the DRM base with 40mm fans attached and connect the two fans to the processor fan headers on the motherboard. 40mm Fan Headers 120mm Fan Header OM08279 Figure 3d. Locate the Slot 2 processor connectors (A and B) and the four attachment screw holes (C1-C4) shown in Figure 3e.

  • Page 34: 3F. Procedure Step 13: Cpu/Heat Sinks-Drm Tops

    MS440GX Motherboard Product Guide Procedure (continued) Step Action Assemble the other DRM base, mount it on the other side of the Slot 2 connectors with 1/2 or 5/8 inch screws (chassis dependent). Obtain the CPU/Heat sinks and the DRM tops. DRM Top OM08281 Figure 3f.

  • Page 35: 3H. Procedure Step 16: Processors Installed In The Drm

    Installation and Removal Procedures Procedure (continued) Step Action Secure the other DRM top to the processor with the holes facing toward the DIMM slots. NOTE If using a Termination Card, then secure the DRM top to the card in the same manner. The DRM top is necessary to lock the Termination Card down and provide a way to remove it from the connector by pulling it up and out.

  • Page 36: 3I. Procedure Step 17: Final Drm-Fan Assembly

    MS440GX Motherboard Product Guide Procedure (continued) Step Action The final fan/CPU-heat sink/DRM assembly should appear as shown in the illustration below. CPU Heat sinks DRM top DRM base DRM 40mm Fans OM08283 Figure 3i.

  • Page 37: How To Install A Single Processor

    Installation and Removal Procedures How to Install a Single Processor Procedure To: Install a Single Processor Step Action Observe the safety precautions in Safety Considerations at the beginning of this chapter. Turn OFF the computer. Disconnect the computer’s power cord and all external peripheral equipment. Remove any peripherals that block access to the P0 processor’s Slot 2 connector.

  • Page 38: How To Install A Second Processor

    MS440GX Motherboard Product Guide How to Install a Second Processor NOTE It may be necessary to reload the operating system to realize optimum performance when upgrading from a single processor to a dual processor configuration. If installing two processors, then the following values must be identical for both processors: L2 cache size and type (ECC);...

  • Page 39: Installing A Second Processor

    Installation and Removal Procedures Procedure (continued) Step Action (C). Slide the processor into the processor retention mechanism OM08285 Figure 5. Press down firmly on the processor until it is seated in the P1 Slot 2 connector (D) and fasten with screws. Replace any peripheral equipment that was removed in Step 3 above.

  • Page 40: How To Remove And Install The Motherboard

    MS440GX Motherboard Product Guide How to Remove and Install the Motherboard Refer to your chassis manual for detailed instructions on removal and installation. WARNING Motherboard removal or installation should be done only by qualified technical personnel. Disconnect the computer from its power source before performing the removal or installation procedures noted here and before opening the computer.

  • Page 41: How To Set Processor Speed

    Installation and Removal Procedures How to Set Processor Speed CAUTION Selecting a processor speed greater than the rated speed of the installed processor(s) may damage the processor(s). Set processor speed after you have installed or upgraded the processor. The procedure that follows assumes that: The computer is turned OFF The cover has been removed The configuration jumper block (J4J1) has the jumper set on pins 1-2 for normal mode...

  • Page 42: Jumper Settings

    MS440GX Motherboard Product Guide Jumper Settings CAUTION Do not move jumpers with the power ON. Always turn OFF the power and unplug the power cord from the computer before changing jumpers. NOTE There is no jumper setting for configuring the processor speed or bus frequency. The feature for configuring the processor speed is in the Setup program using configure mode.

  • Page 43: How To Remove A Processor

    Installation and Removal Procedures Table 11 describes the settings of the BIOS Setup configuration jumper block. Table 11. BIOS Setup Configuration Jumper Settings Mode Jumper Setting Description Normal The BIOS uses current configuration information and passwords for booting. (Default) Configure After the POST runs, Setup runs automatically.

  • Page 44: How To Upgrade A Processor

    MS440GX Motherboard Product Guide How to Upgrade a Processor NOTES If your motherboard has one microprocessor, then you can upgrade the computer by replacing this processor with a faster one or by installing an application processor. If your motherboard has two microprocessors, then you can upgrade by replacing these processors with two faster processors.

  • Page 45: How To Install The Termination Card

    Installation and Removal Procedures How to Install the Termination Card Procedure To: Install the Termination Card Step Action Observe the safety precautions in Safety Considerations at the beginning of this chapter. Turn OFF the computer. Disconnect the computer’s power cord and all external peripheral equipment. Remove any peripherals that block access to the processor Slot 2 connector.

  • Page 46: How To Remove The Termination Card

    MS440GX Motherboard Product Guide How to Remove the Termination Card Procedure To: Remove the Termination Card Step Action Observe the safety precautions in Safety Considerations at the beginning of this chapter. Turn OFF the computer. Disconnect the computer’s power cord and all external peripheral equipment. Remove any peripherals that block access to the processor Slot 2 connector.

  • Page 47: How To Install Memory

    Installation and Removal Procedures How to Install Memory NOTE You can install from 32 MB to 2 GB of 100 MHz SDRAM in the motherboard DIMM sockets. Memory can be installed in one, two, three or four sockets. DIMM size can vary between sockets. The MS440GX motherboard supports the following types of memory: 168-pin 3.3V DIMMs with gold-plated contacts Single or double-sided DIMMs (See Table 4)

  • Page 48: How To Remove Memory

    MS440GX Motherboard Product Guide Procedure (continued) Step Action Position the DIMM above the socket and align the two small notches in the bottom edge of the DIMM with the keys in the socket. 1,2,3,4 OM08289 Figure 11. Insert the bottom edge of the DIMM into the socket. When the DIMM is seated, then press down on the top edge of the DIMM until the retaining clips at the ends of the socket snap into place.

  • Page 49: How To Replace The Cr2032 Lithium Battery (M)

    Installation and Removal Procedures How to Replace the CR2032 Lithium Battery (M) When your computer is turned off, a lithium battery maintains the current time-of-day clock and the current values in CMOS RAM. The battery should last about seven years. When the battery begins to fail, it loses voltage; when the voltage drops below a certain level, the Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate.

  • Page 50: Replacing The Battery

    MS440GX Motherboard Product Guide Procedure To: Replace the Battery Step Action Observe the safety precautions in Safety Considerations at the beginning of this chapter. Record CMOS settings. Turn OFF the computer. Disconnect the computer’s power cord and all external peripheral equipment. Remove the computer cover.

  • Page 51: How To Clear Passwords

    Installation and Removal Procedures How to Clear Passwords NOTE This procedure assumes that the motherboard is installed in the computer and the configuration jumper block (J4J1) has the jumper set on pins 1-2 for normal mode. Procedure To: Clear Passwords Step Action Observe the safety precautions in Safety Considerations at the beginning of this chapter.
  • Page 52 MS440GX Motherboard Product Guide...

  • Page 53: Using The Bios Setup Program

    3 Using the BIOS Setup Program This chapter provides an overview of the BIOS Setup Program. This program enables you to change the BIOS settings of your computer. This chapter covers the following topics: Topic Page Setup Program Modes Setup Program Menus Menu Functionality Menu Function Keys Maintenance Menu...

  • Page 54: Setup Program Modes

    MS440GX Motherboard Product Guide Setup Program Modes NOTE The Setup Program is used for viewing and changing the BIOS settings for your computer. It is recommended that you write down the current Setup settings for reference puproses. Then when you make changes to these settings, update your record accordingly. To access Setup, press the <F2>...

  • Page 55: Setup Program Menus

    Using the BIOS Setup Program Setup Program Menus This diagram illustrates the Setup Program’s menu structure. SETUP Menu Menu Bar Maint. Main Advanced Security Power Boot Exit Features Exit User Processor Power QuickBoot Processor 0 Type Plug and Play O/S Saving Password Speed...

  • Page 56: Menu Functionality

    MS440GX Motherboard Product Guide Menu Functionality Table 14 explains the functionality associated with each Setup Program menu screen. Table 14. Setup Menu Bar Setup Menu Screen Functionality Maintenance Specifies the processor speed and clears the Setup passwords. This menu is only available in configure mode. Main Allocates resources for hardware components.

  • Page 57: Maintenance Menu

    Using the BIOS Setup Program Maintenance Menu Use this menu to set the processor speed and clear Setup passwords. Setup only displays this menu in configure mode. Table 16. Maintenance Menu Feature Options Description Processor Speed 300 MHz Specifies the processor speed in megahertz. 350 MHz 400 MHz 450 MHz...

  • Page 58: Advanced Menu

    MS440GX Motherboard Product Guide Advanced Menu Use this menu to set advanced features that are available through the chipset. Table 18. Advanced Menu Feature Options Description Plug & Play O/S No (default) Specifies if a Plug and Play operating system is being used.

  • Page 59: Peripheral Configuration Submenu

    Using the BIOS Setup Program Peripheral Configuration Submenu Use this submenu to configure the computer peripherals. Table 19. Peripheral Configuration Submenu Feature Options Description Serial port A Disabled Configures serial port A. Enabled Auto assigns the first free COM port, normally COM1, the address 3F8h, and the interrupt IRQ4.

  • Page 60: Ide Configuration Submenus

    MS440GX Motherboard Product Guide IDE Configuration Submenus This submenu is for configuring IDE devices, including: Primary IDE master Primary IDE slave Secondary IDE master Secondary IDE slave Table 20. IDE Configuration Submenus Feature Options Description IDE Controller Disabled Configures the IDE Controller. Primary Both specifies that both the Primary and Secondary channels are used.

  • Page 61: Floppy Options Submenu

    Using the BIOS Setup Program Table 20. IDE Configuration Submenus (continued) Feature Options Description LBA Mode Control Disabled Enables or disables logical block addressing (LBA) in place of the Cylinders, Heads, and Enabled (default) Sectors fields. CAUTION Changing the LBA Mode Control after a hard drive has been formatted can corrupt data on the drive .

  • Page 62: Dmi Event Logging Submenu

    MS440GX Motherboard Product Guide DMI Event Logging Submenu Use this submenu to configure the DMI event logging features. Table 22. DMI Event Logging Submenu Feature Options Description Event log capacity No options Indicates if there is space available in the event log. Event log validity No options Indicates if the contents of the event log are valid.

  • Page 63: Security Menu

    Using the BIOS Setup Program Security Menu Use this menu to set passwords and security features. Table 24. Security Menu Feature Options Description User Password Is No options Reports if there is a user password set. Administrator Password Is No options Reports if there is an administrator password set.

  • Page 64: Boot Menu

    MS440GX Motherboard Product Guide Boot Menu Use this menu to specify the boot features and the boot sequence. Table 26. Boot Menu Feature Options Description QuickBoot Mode Disabled Enables the computer to boot without running certain POST tests. Enabled (default) Scan User Flash Area Disabled (default) Enables the BIOS to scan the flash memory for user...

  • Page 65: Boot Options

    Using the BIOS Setup Program Boot Options In the Setup program, the user can choose to boot from a diskette drive, hard drive, CD-ROM, or the network. The default setting is for the diskette drive to be the primary boot device and the hard drive to be the secondary boot device.

  • Page 66: Removable Devices Submenu

    MS440GX Motherboard Product Guide Removable Devices Submenu Use this submenu to configure the boot sequence for removable devices. Table 28. Removable Devices Submenu Options Description Legacy Floppy Drives Specifies the boot sequence for the removable devices attached to the computer. To Specify Boot Sequence: Select the boot device with <...

  • Page 67: Using The Bios Features

    4 Using the BIOS Features The MS440GX motherboard uses an Intel/Phoenix BIOS, which is stored in flash memory and can be upgraded using a disk-based program. The flash memory also contains the BIOS Setup Program (described in Chapter 3), Power-On Self Test (POST), Advanced Power Management (APM), the PCI auto-configuration utility, and Windows 98-ready Plug and Play code.

  • Page 68: How To Prepare For The Upgrade

    MS440GX Motherboard Product Guide How to Prepare for the Upgrade Before attempting to upgrade the BIOS, prepare for the upgrade process as follows: Obtain the BIOS upgrade file Record the current BIOS settings Create a bootable floppy disk Create the BIOS upgrade floppy disk Obtaining the BIOS Upgrade File Use the BIOS upgrade file to upgrade to a new version of the BIOS.

  • Page 69: Creating A Bootable Floppy Disk

    Using the BIOS Features Creating a Bootable Floppy Disk NOTE If your drive A is an LS-120 diskette drive, then you must use a 1.44-MB floppy diskette as the bootable BIOS upgrade floppy disk. The computer is unable to recover a BIOS from an LS-120 diskette.

  • Page 70: Upgrading The Bios

    MS440GX Motherboard Product Guide Upgrading the BIOS Procedure To: Upgrade the BIOS Step Action Boot the computer with the BIOS upgrade floppy disk in drive A. The flash memory update utility screen appears. Select Update Flash Memory From a File. Select Update System BIOS.

  • Page 71: Recovering The Bios

    Using the BIOS Features Recovering the BIOS Although unlikely, if an interruption should occur during a BIOS upgrade, the BIOS could be damaged. If a BIOS upgrade interruption does occur, then follow the procedure in the following table to recover the BIOS. This procedure uses recovery mode for the BIOS Setup Program. NOTE Because of the small amount of code available in the non-erasable boot block area, there is no video support.

  • Page 72: Changing The Bios Language

    MS440GX Motherboard Product Guide Changing the BIOS Language You can use the BIOS upgrade utility to change the language the BIOS uses for messages and the Setup program. Use a bootable floppy disk containing the Intel Flash Memory Update Utility and language files (see “Upgrading the BIOS”...

  • Page 73: Isa Plug And Play

    Using the BIOS Features ISA Plug and Play If Plug and Play operating system is selected in Setup, then the BIOS autoconfigures only ISA Plug and Play and PCI cards that are required for booting (IPL devices). If Plug & Play OS is not selected in Setup, then the BIOS autoconfigures all Plug and Play ISA and PCI cards.

  • Page 74: Desktop Management Interface (Dmi)

    MS440GX Motherboard Product Guide Desktop Management Interface (DMI) Desktop Management Interface (DMI) is an interface for managing computers in an enterprise environment. The main component of DMI is the management information format (MIF) database, which contains information about the computing system and its components such as system types, capabilities, operational status, and installation dates for system components.

  • Page 75: Advanced Configuration And Power Interface (Acpi)

    Using the BIOS Features Advanced Configuration and Power Interface (ACPI) ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. ACPI requires an ACPI-aware operating system. ACPI features include: Plug and Play (including bus and device enumeration) and APM functionality normally contained in the BIOS Power management control of individual devices, add-in boards (some add-in boards may require an ACPI-aware driver), video displays, and hard disk drives...

  • Page 76: Wake Up Devices And Events

    MS440GX Motherboard Product Guide Wake Up Devices and Events The table below describes which devices or specific events can wake the computer from specific states. Sleeping states S4BIOS and S5 are the same for the wake up events. Table 32. Wake Up Devices and Events These devices/events can wake up the computer…...

  • Page 77: Usb Legacy Support

    Using the BIOS Features USB Legacy Support USB legacy support enables USB keyboards and mice to be used even when no operating system USB drivers are in place. By default, USB legacy support is disabled and is only intended to be used in accessing BIOS Setup and installing an operating system that supports USB.

  • Page 78: Recovering Bios Data

    MS440GX Motherboard Product Guide Password Sets If only the administrator password is set, then press the <ENTER> key at the password prompt of the Setup Program to allow the user restricted access to Setup. If both administrator and user passwords are set then users can enter either password to access Setup and privileges afforded are dependent upon which password is entered.

  • Page 79: Technical Reference

    5 Technical Reference This chapter describes the location, pinouts, and signals associated with the various types of connectors used in the MS440GX motherboard. This chapter covers the following topics: Topic/Procedure Page Front Panel Connectors Front Panel I/O Connectors Speaker Reset Switch Power/Sleep LED Hard Drive Activity LED Infrared Port...

  • Page 80: Front Panel Connectors (L)

    MS440GX Motherboard Product Guide Front Panel Connectors (L) The illustration below shows the location of the front panel connectors. Table 34 indicates the functional purpose of each connector identified in the illustration. OM07112 Speaker Hard disk drive activity LED Reset switch Infrared port Power/sleep LED Power switch...

  • Page 81: Speaker

    Technical Reference Table 34. Front Panel I/O Connectors Call-out Connector/Function Signal Name SPEAKER/ BUZZER_B1 Provides error beep code information during the BUZZER_A2 POST and is not connected to audio subsystem. RESET SWITCH/ FP_RESET# Resets the motherboard and initiates running Ground the POST.

  • Page 82: Power/Sleep Led

    MS440GX Motherboard Product Guide Power/Sleep LED These pins can be connected to a multicolor LED that lights when the computer is powered on or in sleep mode. The possible states for this LED are: If state = OFF, then Power is OFF. If state = GREEN, then Power is ON.

  • Page 83: Front Panel Pin Connector Mapping

    Technical Reference Front Panel Pin Connector Mapping This table describes the operational effect(s) of connecting various devices such as switches and LED lights to the Front Panel pin connectors. Table 35. Pin Connector Functionality If pin numbers ..are connected to a ..Then the operational effect is ..

  • Page 84: Back Panel Connectors (E)

    MS440GX Motherboard Product Guide Back Panel Connectors (E) The figure below shows location of the back panel connectors. OM07122 PS/2 Keyboard or Mouse Serial Port B PS/2 Keyboard or Mouse USB Port 1 Audio Line Input USB Port 0 Audio Line Output Parallel Port Microphone Input Serial Port A...

  • Page 85: Keyboard And Mouse Interface

    Technical Reference Keyboard and Mouse Interface PS/2 keyboard and mouse connectors are located on the back panel (see Figure 15/Callouts A † and B). The 5V lines to these connectors are protected with a PolySwitch circuit that, like a self- healing fuse, reestablishes the connection after an over-current condition is removed.

  • Page 86: Parallel Port

    MS440GX Motherboard Product Guide Parallel Port The connector for the multimode bidirectional parallel port is a 25-pin D-Sub connector located on the back panel (see Figure 15/Callout E). In the Setup program, the parallel port can be configured for the following: Compatible (standard mode) Bidirectional (PS/2 compatible) Extended Parallel Port (EPP)

  • Page 87: Audio Line Out Connector

    Technical Reference Table 39. Audio Line Out Connector Signal Name Sleeve Ground Audio Left Out Ring Audio Right Out Table 40. Audio Mic In Connector Signal Name Sleeve Ground Mono In Ring Electret Bias Voltage...

  • Page 88: I/O Shield

    MS440GX Motherboard Product Guide I/O Shield Systems based on the MS440GX motherboard need the back panel I/O shield to pass EMI compliance verification. The back panel I/O shield must meet specific dimension and material requirements. Figure 16 shows the critical dimensions of a chassis-independent I/O shield. Additional design considerations for I/O shields relative to chassis requirements are described in the ATX form factor specification.

  • Page 89: Midboard Connectors

    Technical Reference Midboard Connectors This section addresses the location and functionality associated with the Midboard family of motherboard connectors. The Midboard connectors are organized into the following functional groups. Table 41. Connector Groups Connector Family Functional Group(s) See Figure/Table No. Add-in Card Connectors See MS440GX Technical Product...

  • Page 90: Add-In Card Connectors

    MS440GX Motherboard Product Guide Add-in Card Connectors When the motherboard is installed in a chassis, there are a maximum of seven slots available for installing add-in cards. The table immediately below Figure 17 identifies the seven slots by their callout locations. All of the PCI bus connectors are bus master capable. Figure 17 shows the location of the add-in card connectors.

  • Page 91: Audio Connectors

    Technical Reference Audio Connectors Figure 18 shows the locations of the audio connectors. Tables 42 through 45 list the pinouts of the audio connectors. OM07118 ATAPI CD-ROM ATAPI-style telephony MIDI/Joystick External speaker Figure 18. Audio Connectors The audio connectors include the following: Back panel connectors: Line In, Line Out, Mic In CD-ROM audio (ATAPI) Telephony (ATAPI-style)

  • Page 92: Cd-Rom Audio

    MS440GX Motherboard Product Guide CD-ROM Audio A 1 x 4-pin ATAPI-style connector is available for connecting an internal CD-ROM drive to the audio mixer. Telephony A 1 x 4-pin ATAPI-style connector is available for connecting the monaural audio signals of an internal telephony device, such as a modem, to the audio subsystem.

  • Page 93: Fan Connectors

    Technical Reference Fan Connectors There are seven fan connectors on the motherboard. Four connectors are used for processor heatsink fans and three are for chassis fans. Figure 19 shows the location of the fan connectors. Table 46 lists the pinouts of the fan connectors.

  • Page 94: Thermal Considerations

    MS440GX Motherboard Product Guide Table 46. Fan Connectors Signal Name TACH_OUT +12 V FAN_ENABLE Thermal Considerations Figure 20 shows the locations of the thermally-sensitive components. Table 47 lists the maximum component case temperatures for motherboard components that could be sensitive to thermal changes.

  • Page 95: Thermal Considerations For Components

    Technical Reference CAUTION The motherboard printed wiring substrate is rated for 105 C. Care should be taken to ensure the maximum temperature of any component does not exceed the aboard substrate rating. This limit should include a correction value for the maximum ambient operation temperature. Table 47.

  • Page 96: Power Connectors

    MS440GX Motherboard Product Guide Power Connectors There are three power supply connectors and one connector for a VRM. Figure 21 shows the power connectors. Tables 48 through 50 list the pinouts of the power connectors. The primary and secondary power supply connectors are identical; either may be used with the 6-pin power connector for system configurations requiring less than 300 W.

  • Page 97: 1X6 Power Connector

    Technical Reference Table 48. 1x6 Power Connector Signal Name Ground Ground Ground +3.3 V +3.3 V +5 V (Keyed) Table 49. Primary and Secondary Power Supply Connectors (J10H1) Signal Name Signal Name +3.3 V +3.3 V +3.3 V -12 V Ground Ground +5 V...

  • Page 98: Vrm Connector (J13J1)

    MS440GX Motherboard Product Guide Table 50. VRM Connector (J13J1) Signal Name Signal Name 5VIN 5VIN 5VIN 5VIN 5VIN 5VIN 12VIN 12VIN 12VIN SENSE No connect OUTEN VID0 VID1 VID2 VID3 VID4 PWRGOOD...

  • Page 99: Peripheral Interface Connectors

    Technical Reference Peripheral Interface Connectors Figure 22 shows the location of the peripheral interface connectors. OM07116 Diskette Drive SCSI LED Secondary IDE Primary IDE Figure 22. Peripheral Interface Connectors Table 51. SCSI LED Connector (J10A1) Signal Name SCSI_LED# Ground...

  • Page 100: Security And Hardware Management Connectors

    MS440GX Motherboard Product Guide Security and Hardware Management Connectors Figure 23 shows the security and hardware management connectors. Tables 52 through 54 list the pinouts of the security and hardware management connectors. OM07117 Rear Chassis Intrusion Front Chassis Intrusion Wake On LAN technology connector Wake On Modem Figure 23.

  • Page 101: Front And Rear Chassis Intrusion Connectors

    Technical Reference Table 52. Front and Rear Chassis Intrusion Connectors Signal Name TAMPER_DETECT# Ground Table 53. Wake on LAN Technology Connector (J11A2) Signal Name AUX5 Ground WOL_PIN3 Table 54. Wake on Modem Connector (J9A1) Signal Name Ground MODEMRING #...

  • Page 102: Chassis Intrusion Connectors

    MS440GX Motherboard Product Guide Chassis Intrusion Connectors If the chassis cover is removed, then a security feature of the hardware monitor subsystem detects the intrusion. This security feature uses mechanical switches on the chassis that are attached to the 1x2-pin chassis intrusion connectors.

  • Page 103: Memory Map

    Technical Reference Memory Map Table 55. Memory Map Address Range (decimal) Address Range (hex) Size Description 1024 K - 2097152 K 100000 - 7FFFFFFF 2047 MB Extended memory (SDRAM) 928 K - 1024 K E8000 - FFFFF 96 KB System BIOS 800 K - 928 K C8000 - E7FFF 128 KB...

  • Page 104: I/O Map

    MS440GX Motherboard Product Guide I/O Map Table 57. I/O Map Address (hex) Size Description 0000 - 000F 16 bytes PIIX4 - DMA 1 0020 - 0021 2 bytes PIIX4 - interrupt controller 1 002E - 002F 2 bytes Super I/O controller configuration registers 0040 - 0043 4 bytes PIIX4 - Counter/Timer 1...
  • Page 105 Technical Reference Table 57. I/O Map (continued) Address (hex) Size Description 0378 - 037F 8 bytes LPT1 0388- 038D 6 bytes AdLib (FM synthesizer) 03B4 - 03B5 2 bytes † Video (VGA 03BA 1 byte Video (VGA) 03BC - 03BF 4 bytes LPT3 03C0 - 03CA...

  • Page 106: Pci Configuration Space Map

    MS440GX Motherboard Product Guide PCI Configuration Space Map Table 58. PCI Configuration Space Map Device Function Number (hex) Number (hex) Number (hex) Description Intel 82443GX (PAC) Intel 82443GX PCI-to-PCI Bridge (for A.G.P.) Intel 82371EB (PIIX4E) PCI/ISA Bridge Intel 82371EB (PIIX4E) IDE Bus Master Intel 82371EB (PIIX4E) USB Intel 82371EB (PIIX4E) Power Management Intel 82558 PCI LAN Controller...

  • Page 107: Lan Subsystem Software

    Technical Reference LAN Subsystem Software The EtherExpress PRO/100 WfM PCI LAN software provided includes setup/diagnostic software (SETUP.EXE), a readme file viewer (README.EXE) and drivers. The LAN software is available from Intel’s World Wide Web site. Interrupts Table 59. Interrupts System Resource I/O channel check Reserved, interval timer Reserved, keyboard buffer full...

  • Page 108: Pci Interrupt Routing Map

    MS440GX Motherboard Product Guide PCI Interrupt Routing Map This section describes interrupt sharing and how the interrupt signals are connected between the PCI expansion slots and onboard PCI devices. The PCI specification states how interrupts can be shared between devices attached to the PCI bus. In most cases, the small amount of latency added by interrupt sharing does not affect the operation or throughput of the devices.

  • Page 109: Interrupt Routing Example

    Technical Reference Interrupt Routing Example IF an add-in card in the second PCI slot has one interrupt (group INTA) THEN in this slot, an interrupt source from group INTA connects to the PIRQB signal WHICH is not connected to any onboard interrupt sources AND IF there are no other add-in cards THEN this card does not share its interrupt with any other devices.
  • Page 110 MS440GX Motherboard Product Guide...

  • Page 111: A Error Messages

    A Error Messages This appendix describes system error messages and alarms which are triggered when operational errors are detected. This appendix covers the following topics: Topic/Procedure Page BIOS Beep Codes BIOS Error Messages Port 80h POST Codes...

  • Page 112: Bios Beep Codes

    MS440GX Motherboard Product Guide BIOS Beep Codes Beep codes represent a terminal error. If the BIOS detects a terminal error condition, then the BIOS outputs an error beep code, halts the POST, and attempts to display a port 80h code on the POST card’s LED display.

  • Page 113: Bios Error Messages

    Error Messages BIOS Error Messages Table 63 lists the error messages generated by the system and explains the meaning of each message. Table 63. BIOS Error Messages Error Message Explanation Diskette drive A error or Drive A or B is present but fails the POST diskette tests. Diskette drive B error Check that the drive is defined with the proper diskette type in Setup and that the diskette drive is installed correctly.
  • Page 114 MS440GX Motherboard Product Guide Table 63. BIOS Error Messages (continued) Error Message Explanation Real time clock error Real-time clock fails BIOS test. May require motherboard repair. Shadow RAM Failed at Shadow RAM failed at offset nnnn of the 64 KB block at which the error was offset: nnnn detected.

  • Page 115: Port 80H Post Codes

    Error Messages Port 80h POST Codes During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O port 80h. If the POST fails, then execution stops and the last POST code generated is left at port 80h. This code is useful for determining the point where an error occurred.
  • Page 116 MS440GX Motherboard Product Guide Table 64. Port 80h Codes (continued) Code Description of POST Operation Currently In Progress Clear 512 KB base RAM RAM failure on address line nnnn RAM failure on data bits nnnn of low byte of memory bus Enable cache before system BIOS shadow RAM failure on data bits nnnn of high byte of memory bus Test CPU bus-clock frequency...
  • Page 117 Error Messages Table 64. Port 80h Codes (continued) Code Description of POST Operation Currently In Progress Test RAM between 512 and 640 KB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize multiprocessor APIC Enable external and processor caches Setup System Management Mode (SMM) area Display external L2 cache size...
  • Page 118 MS440GX Motherboard Product Guide Table 64. Port 80h Codes (continued) Code Description of POST Operation Currently In Progress Clear huge ES segment register Fix up multiprocessor table Search for option ROMs Check for SMART Drive Shadow option ROMs Set up power management Enable hardware interrupts Determine number of ATA and SCSI drives Set time of day...
  • Page 119 Error Messages Table 64. Port 80h Codes (continued) Code Description of POST Operation (The following are for boot block in flash memory) Initialize the chipset Initialize the bridge Initialize the processor Initialize system timer Initialize system I/O Check force recovery boot Checksum BIOS ROM Go to BIOS Set huge segment...
  • Page 120 MS440GX Motherboard Product Guide...

  • Page 121: B Regulatory And Integration Information

    B Regulatory and Integration Information This appendix contains: Safety standards, electromagnetic compatibility regulations, and product certification markings for this motherboard Instructions and precautions for integrators who are installing this motherboard in a chassis This appendix covers the following topics: Topic/Procedure Page Regulatory Compliance Product Certification Markings...

  • Page 122: Regulatory Compliance

    MS440GX Motherboard Product Guide Regulatory Compliance This motherboard complies with the following safety and electromagnetic compatibility (EMC) regulations when correctly installed in a compatible host system. Table 65. Safety Regulations Regulation Title UL 1950 - CSA 950-95, 3rd edition, The Standard for Safety of Information Technology Equipment Dated 07-28-95 including Electrical Business Equipment.

  • Page 123: Installation Instructions

    Regulatory and Integration Information Installation Instructions CAUTION Follow these guidelines to meet safety and regulatory requirements when installing this board assembly. Read and adhere to all of these instructions and the instructions supplied with the host computer and associated modules. If the instructions for the host computer are inconsistent with these instructions or the instructions for associated modules, contact the supplier’s technical support to find out how you can ensure that your computer meets safety and regulatory requirements.
  • Page 124 MS440GX Motherboard Product Guide...

  • Page 125: C Environmental Specifications And Reliability Information

    C Environmental Specifications and Reliability Information This appendix contains: Motherboard environmental requirements for safe operation and optimal performance. Reliability information related to the Mean Time Between Failures (MTBF) measure for the MS440GX motherboard. This appendix covers the following topics: Topic/Procedure Page Environmental Specification Table Reliability Information...

  • Page 126: Environmental Specifications

    MS440GX Motherboard Product Guide Environmental Specifications Table 67. Environmental Specifications Parameter Specification Temperature Nonoperating -40 C to +70 C Operating 0 C to +55 C Shock Unpackaged 50 G trapezoidal waveform Velocity change of 170 inches/sec Packaged Half sine 2 millisecond Product Weight Free Fall (inches) Velocity Change (inches/sec)
  • Page 127 D Specifications and Customer Support This appendix identifies where to obtain about Intel boards and details the specifications that the MS440GX motherboard is in compliance with. This appendix covers the following topics: Topic/Procedure Page Online Support Specifications...

  • Page 128: D Specifications And Customer Support

    MS440GX Motherboard Product Guide Online Support Find information about Intel boards under “Product Info” or “Customer Support” at this World Wide Web site: http://www.intel.com/ Specifications The motherboard complies with the following specifications: Table 68. Compliance with Specifications Specification Description Revision Level A.G.P.

Table of Contents
