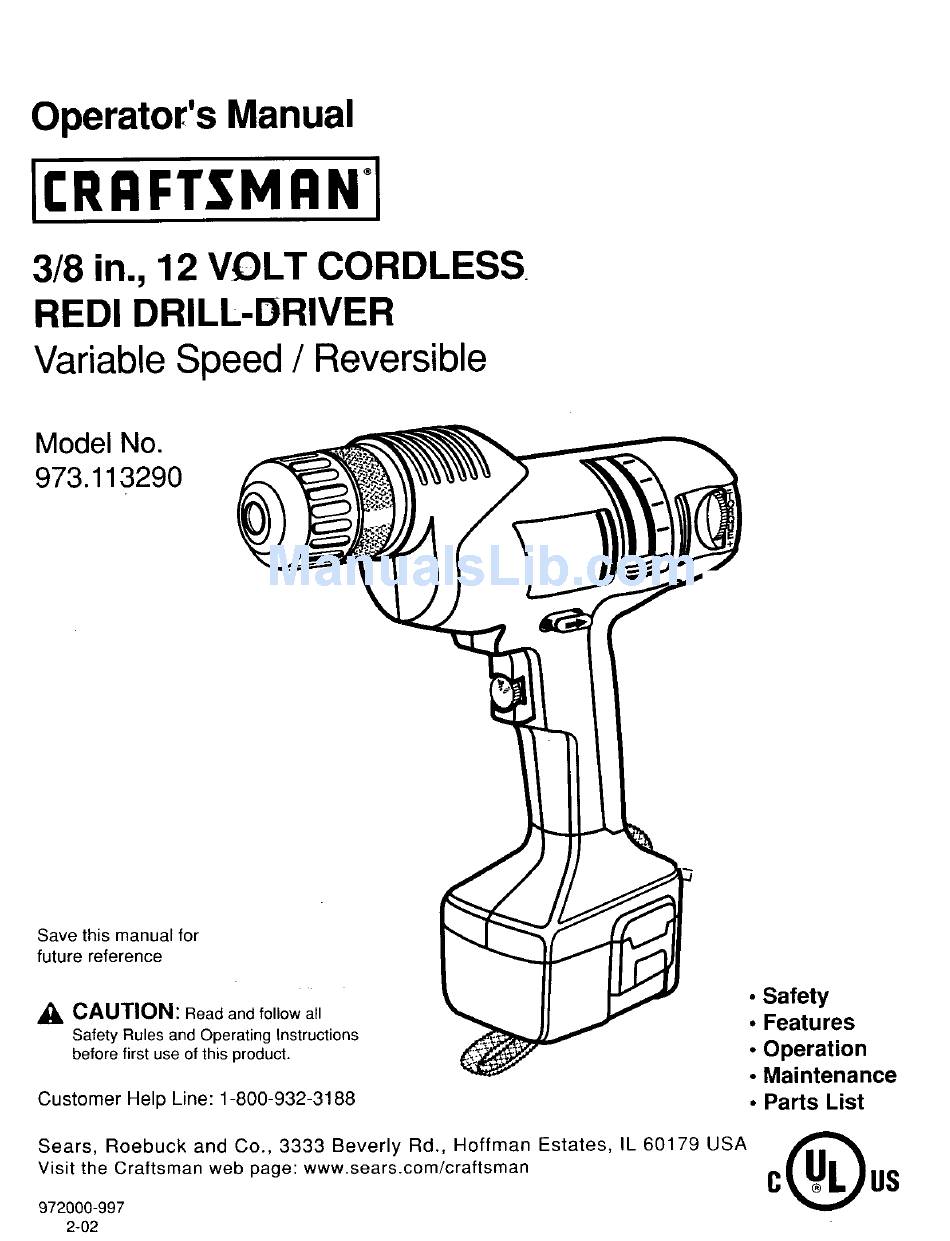

Operator's Manual
ERRFTSMRN1
3/8 in., 12 VOLT CORDLESS.
REDI DRILL-DRIVER
Variable Speed / Reversible
Model No.
973.113290
Save this manual
for
future reference
_IL CAUTION:
Read and follow all
Safety Rules and Operating Instructions
before first use of this product.
Customer
Help Line: 1-800-932-3188
• Safety
• Features
• Operation
• Maintenance
• Parts List
Sears,
Roebuck
and Co., 3333
Beverly
Rd., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-997
2-02
Advertisement
Related Manuals for Craftsman 973.113290
Summary of Contents for Craftsman 973.113290
- Page 1 Safety Rules and Operating Instructions • Operation before first use of this product. • Maintenance • Parts List Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 Visit the Craftsman web page: www.sears.com/craftsman 972000-997 2-02...
- Page 2 Exploded View And Repair Parts List .......................... • Parts Ordering / Service ............................... FULL ONE YEAR WARRANTY ON CRAFTSMAN 3/8 in. CORDLESS REDI DRILL-DRIVER If this CRRFTSMRH 3/8 in. Cordless Redi Drill-Driver fails to give complete satisfaction within one year from the date of purchase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES, and Sears will repair it, free of charge.
- Page 3 Yourredidrill-driver hasmanyfeatures formaking your CAUTION: Carefully read through this entire drilling operations m orepleasant a ndenjoyable. Safety, operator's manual before using your new redi drill- performance anddependability havebeengiventop driver. Pay close attention to the Specific Safety priority inthedesignofthisredidrill-driver m aking it easy Rules / Symbols, Warnings and Cautions.
- Page 4 Tool Use and Care • Use clamps or other practical way to secure and Maintain tools with care. Keep cutting tools sharp support the workpiece to a stable platform. Holding and clean. Properly maintained tools, with sharp the work by hand or against your body is unstable and cutting edges are less likely to bind and are easier to control.
- Page 5 Do not operate charger with a damaged cord or • ,_. WARNING: Never use a battery that has been plug. If damaged, have replaced immediately by a dropped or received a sharp blow. A damaged battery qualified serviceman. Following this rule will reduce the is subject to explosion.
- Page 6 Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the toot better and safer. SYMBOL NAME DESIG NATION/EXPLANATION Votts Voltage Amperes Current Hertz...
- Page 7 3/8in. Switch Chuck Capacity Variable Speed - Reversible Motor 12VoltDC 3-6Hours ChargeRate 100in.Ibs. 120Volts,60Hz,ACOnly Charger R ating Maximum Torque 0-600RPM NoLoadSpeed Yourredidrill-driver h asbeenshipped completely WARNING: If any parts are missing, do not operate assembled. Inspect n t c arefully to makesurenobreakage this tool until the missing parts are replaced•...
- Page 8 WRIST STRAP KNOW YOUR REDI DRILL-DRIVER See Figure 1. A wrist strap is provided to reduce the chances of drop- ping your drill-driver. Place one hand through the wrist Before attempting to use any tool familiarize yourself with strap when carrying tool. all operating features and safety requirements.
- Page 9 • Place battery pack in charging stand. Align raised rib WARNING: Always wear safety goggles or safety on battery pack with groove in charging stand. See glasses with side shields when operating tools. Figure2. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
- Page 10 TO INSTALL BATrERY PACK SWITCH See Figure 3. • Lock switch trigger on your drill-driver by placing the direction of rotation selector in center position, To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. See Figure3.
- Page 11 REVERSIBLE KEYLESS CHUCK See Figure 5. See Figure 6. This tool has the feature of being reversible. The direction Your drill-driver has a keyless chuck. As the name implies, of rotation is controlled by a selector located above the you can hand tighten or release drill bits in the chuck jaws. switch trigger.
- Page 12 WARNING: Do not insert drill bit into chuck jaws ,_WARNING: Always wear safety goggles or safety and tighten as shown in figure 8. This could cause glasses with side shields when operating tools. drill bit to be thrown from drill-driver resulting in Failure to do so could result in objects being thrown possible serious personal injury or damage to the into your eyes, resulting in possible serious injury.
- Page 13 Tighten the chuck jaws on drill bit. To tighten jaws, INSTALLING BITS FROM MAGAZINE grasp and hold the collar of the chuck with one hand, See Figure9. while rotating the chuck body clockwise with your A convenient feature ofyourdrill-driver isthefive bit other hand.
- Page 14 DRILLING See Figure 11. When drilling hard smooth surfaces use a center punch to mark desired hole location. This will prevent the drill bit from slipping off center as the hole is started. The material to be drilled should be secured in a vise or with clamps to keep it from turning as the drill bit rotates.
- Page 15 Do not abuse power tools. Abusive practices can WARNING: When servicing, use only identical damage tool as well as workpiece. Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Only the parts shown on parts list, page 17, are intended to be repaired or replaced by the customer.
-
