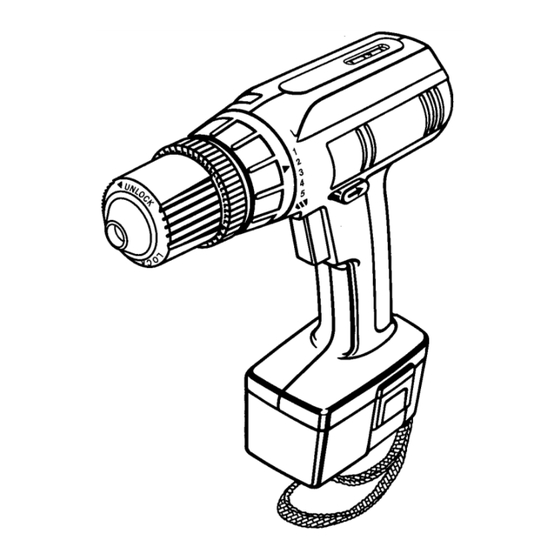

Craftsman 973.113270 Owner's Manual

Variable speed/reversible 3/8" 9.6 volt cordless drill/driver
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual
II:RRFTSMRN°I
Variable Speed / Reversible
318 in., 9.6 VOLT CORDLESS DRILL-DRIVER
Model No.
973.113270
Save this manual
for
future reference
_I,
CAUTION:
Read and follow all
Safety Rules and Operating
In-
structions
before first use of this
product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 USA
visit the Craftsman web page: www.sears.com/craftsman
972000-913
6-01
• Safety
• Features
• Operation
• Maintenance
• Parts List
®

Advertisement

loading

Related Manuals for Craftsman 973.113270

Summary of Contents for Craftsman 973.113270

  • Page 1 Safety Rules and Operating structions before first use of this • Operation product. • Maintenance • Parts List Customer Help Line: 1-800-932-3188 ® Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA visit the Craftsman web page: www.sears.com/craftsman 972000-913 6-01...

  • Page 2: Full One Year Warranty

    Parts Ordering / Service ..........................FULL ONE YEAR WARRANTY ON CRAFTSMAN 3/8 in. DRILL-DRIVER If this CRRFT$1dR#3/8 in. Drill-Driver fails to give complete satisfaction within one year from the date of pur- chase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge.
  • Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
  • Page 4 • WHEN SERVICING USE ONLY IDENTICAL DO NOT USE TOOL IF SWITCH DOES NOT CRAFTSMAN REPLACEMENT PARTS. TURN IT ON AND OFF. Have defective switches IMPORTANT...
  • Page 5 RULES FOR SAFE OPERATION (Continued) An extension cord should not be used unless • To reduce risk of electric shock, unplug charger absolutely necessary. Use of improper from outlet before attempting any maintenance extension cord could result in a risk of fire and or cleaning.
  • Page 6 Thefollowing recommended accessories arecurrently a vailable at SearsRetail S tores. • HighSpeedBits(ForWoodor Metal)...3/4 i n. Max. • 6-Pc.ExtraLength Magnite PowerBitSet • 30-Pc.Power S crewdriver/Nutdriver SetandCase • Keyless Chuck(ttemNo.9-20988) • 17-Pc. P ower S crewdriver/Nutdriver SetandCase ,_k WARNING: The use of attachments or accessories not listed might be hazardous. WRIST STRAP KNOW YOUR...
  • Page 7 • Connect charger to power supply. WARNING: Always wear safety goggles or safety glasses with side shields when operating • Place battery pack in charging stand. Align raised tools. Failure to do so could result in objects rib on battery pack with groove in charging stand. being thrown into your eyes, resulting in possible See Figure 1.
  • Page 8 SWITCH See Figure 2. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. SELECTOR BATTERY PACK LATCHES CENTERPOSITION (LOCK) SWITCH TRIGGER Fig. 2 VARIABLE SPEED This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure.
  • Page 9 KEYLESS CHUCK SWITCH LOCK See Figure 5. See Figure 4. The switch trigger can be locked in the OFF position. Your new drill has a keyless chuck. As the name implies, This feature can be used to prevent the possibility of you can hand tighten or release drill bits in the chuck accidental starting when not in use.

  • Page 10: Installing Bits

    REMOVING BITS INSTALLING BITS See Figure 6. See Figure 6. • Lock the switch trigger by placing the direction of • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 2. rotation selector in center position. See Figure 2. •...
  • Page 11 Move the drill bit into the workpiece applying only WARNING: Always wear safety goggles or safety glasses with side shields when operating enough pressure to keep the bit cutting. Do not force tools. Failure to do so could result in objects or apply side pressure to elongate a hole.
  • Page 12 CHUCK REMOVAL Insert hex key wrench in chuck and tighten chuck jaws securely. Tap sharply with a mallet in a See Figures 11, 12, and 13. counterclockwise direction. This will loosen chuck The chuck must be removed in order to use some on the spindle.

  • Page 13: For Recycling

    Only the parts shown on parts list, page fifteen, are WARNING: When servicing, use only identical intended to be repaired or replaced by the customer. Craftsman replacement parts. Use of any other All other parts should be replaced by a qualified part may create a hazard or cause product service technician at an authorized service facility.
  • Page 15 CRAFTSMAN 318 in., 9.6 VOLT CORDLESS DRILL-DRIVER - MODEL NO. 973.113270 The model n umber will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 3/8 in. CORDLESS DRILL-DRIVER or when ordering repair parts.
  • Page 16 Get it fixed, at your home or ours! For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anytime, day or night (1-800-469-4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
