Operation
CollectorRemoval
_
CAUTION: Operation Without Bagger
For operation without bagger, the mower deflector MUST
be properly installed in the down position and retained by
the spring latch.
1. Lift up cover (A, Figure15), then remove and empty bags
(B).
2. Removehitch and frame assembly (C) from rear of
tractor.
.
4.
5.
Loosen middle tube strap from lower tube (D) and
remove middle / upper tube assembly (E).
Lift discharge deflector (F). Rotatelatch (G) upward on
front of lower chute.
Pull lower chute away from mower.
/
/
//
Storage

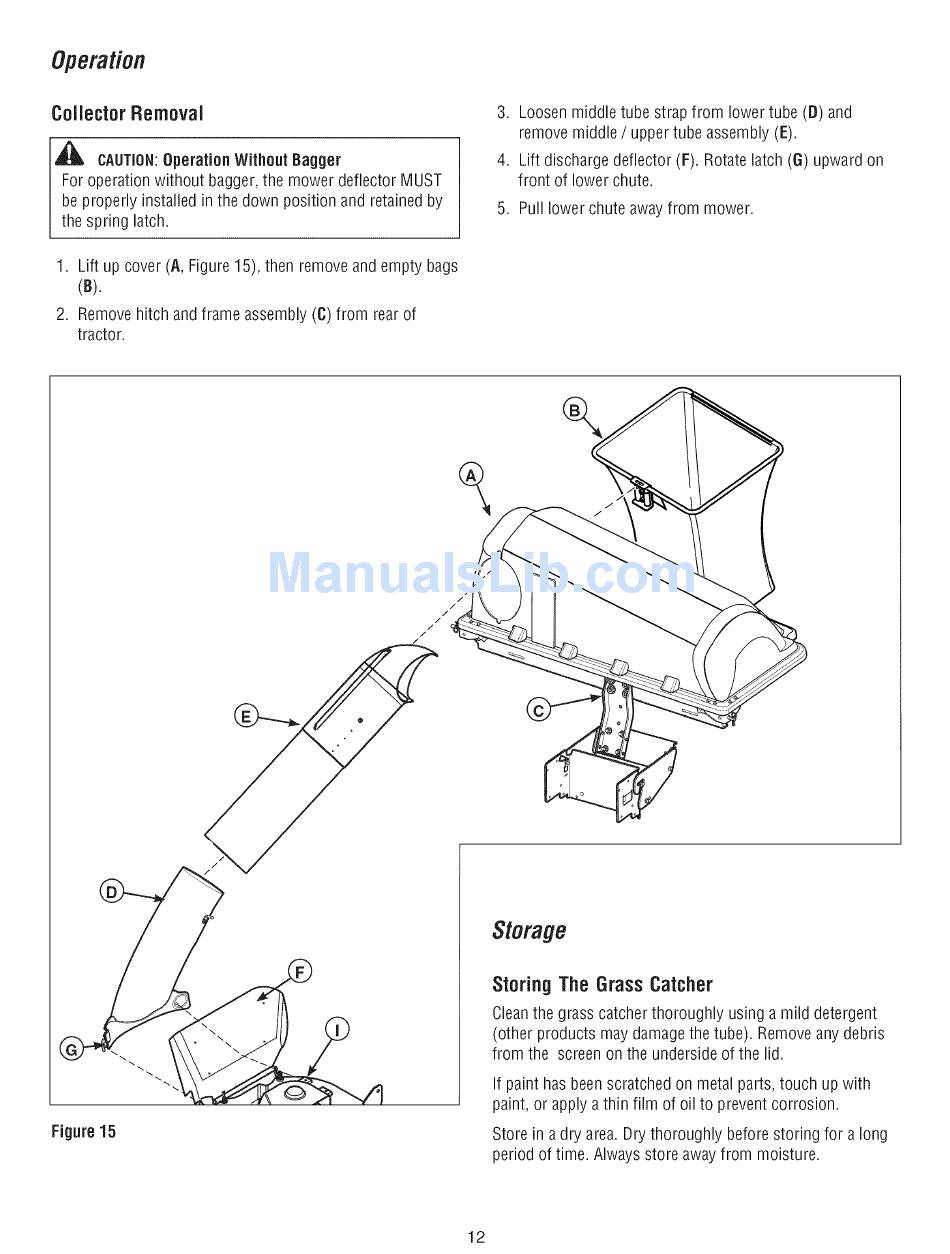

Figure 15
Storing The GrassCatcher
Cleanthe grass catcher thoroughly using a mild detergent
(other products may damagethe tube). Remove any debris
from the screen on the underside of the lid.
If paint has been scratched on metal parts, touch up with
paint, or apply a thin film of oil to prevent corrosion.
Store in a dry area. Dry thoroughly before storing for a long
period of time. Always store away from moisture.
