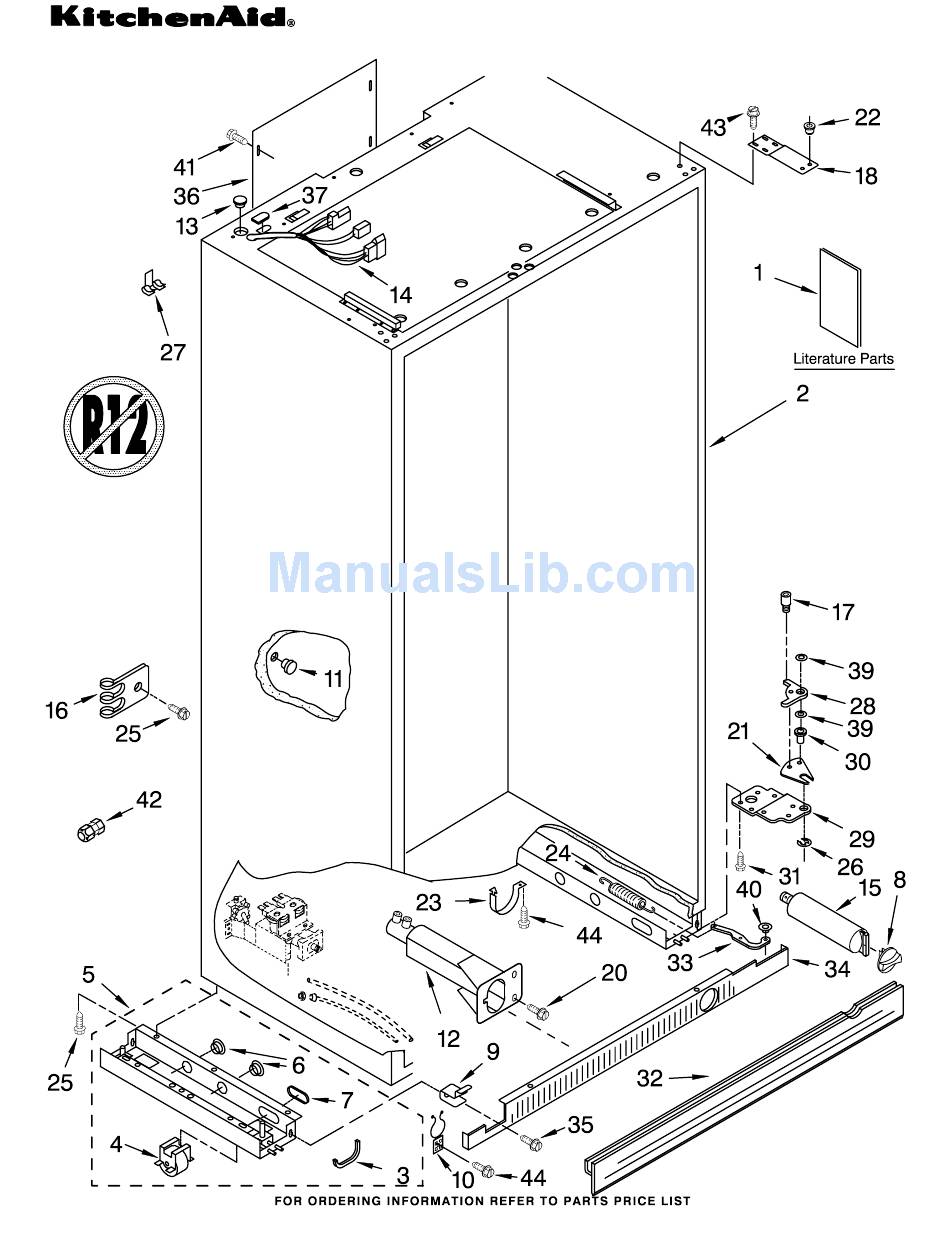

- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48FJX00 (Stainless Steel) 8−00 Litho In U.S.A. (mek) Part No. 4398744...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION LITERATURE PARTS 1113227 Fastener (3) 2006442 Mounting Stud, LIT2209249 Use & Care Guide 2006342 Gap, Cover Grill LIT2209474 Energy Label Assembly (Bottom) 2005237 Clip, Wire LIT2209309 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2006789 Cabinet, Trim (2) 2003857 Screw 1163283 Screw 2209075 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top 2005925 Seal−Trim, Side 4398744...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2209227 Control Panel 2209003 Inlay, Control Panel 2208995 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209174 Shield, Control Panel 2005043 Socket, Light...
- Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209254 Shield, Control Panel 2005042 Socket, Light...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006525 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan,...
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2003144 Solid Shelf 2188383 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2003114 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003045 Front Cover... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2003715 Top Grille Assembly 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel Assembly 2005534 Guard, Compressor Wiring 2006440 Baffle−Air, Condenser 2003613 Trim, Grille Bottom 2003619 Trim, Grille 2003599 Trim, Grille...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744... - Page 14 REFRIGERATOR DOOR PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744... - Page 16 FREEZER DOOR PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2003878 Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2188319 Door Gasket, Magnetic 486194 Screw (34)
- Page 17 UPPER UNIT PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744...
- Page 18 UPPER UNIT PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2208903 Motor, Fan 2003398 Assembly, Unit 2190685 Blade, Fan Base Following Parts Not Illustrated 2003169 Orifice, Fan 2163787 Clip, Compressor and Optional Parts Not Included 489099 Screw (3) Mounting (4) 486692 Speed Nut...
- Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744...
- Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2002995 Tube, Discharge...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 488937 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Models: KSSS48FJX00 (Stainless Steel) 4398744... - Page 24 ICEMAKER PARTS For Models: KSSS48FJX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2208136 Clamp, Nylon 489322 Screw 2005038 Plug, Water Valve Valve 2203198 Tube, Filter 489276 Screw 488937 Clamp Tube Inlet 2171593 Shut Off Arm 841707 Insert, Tube 2174155 Cover 2171952 Bracket 628379 Clip, Fuse...
