9
NEVER OPERATE THE SAW WITHOUT THE
PROPER iNSERT IN PLACE. USE THE SAW-
BLADE INSERT WHEN SAWING. USE THE
COMBINATION DADO MOLDING INSERT WHEN
USING A DADO OR MOLDING HEAD.

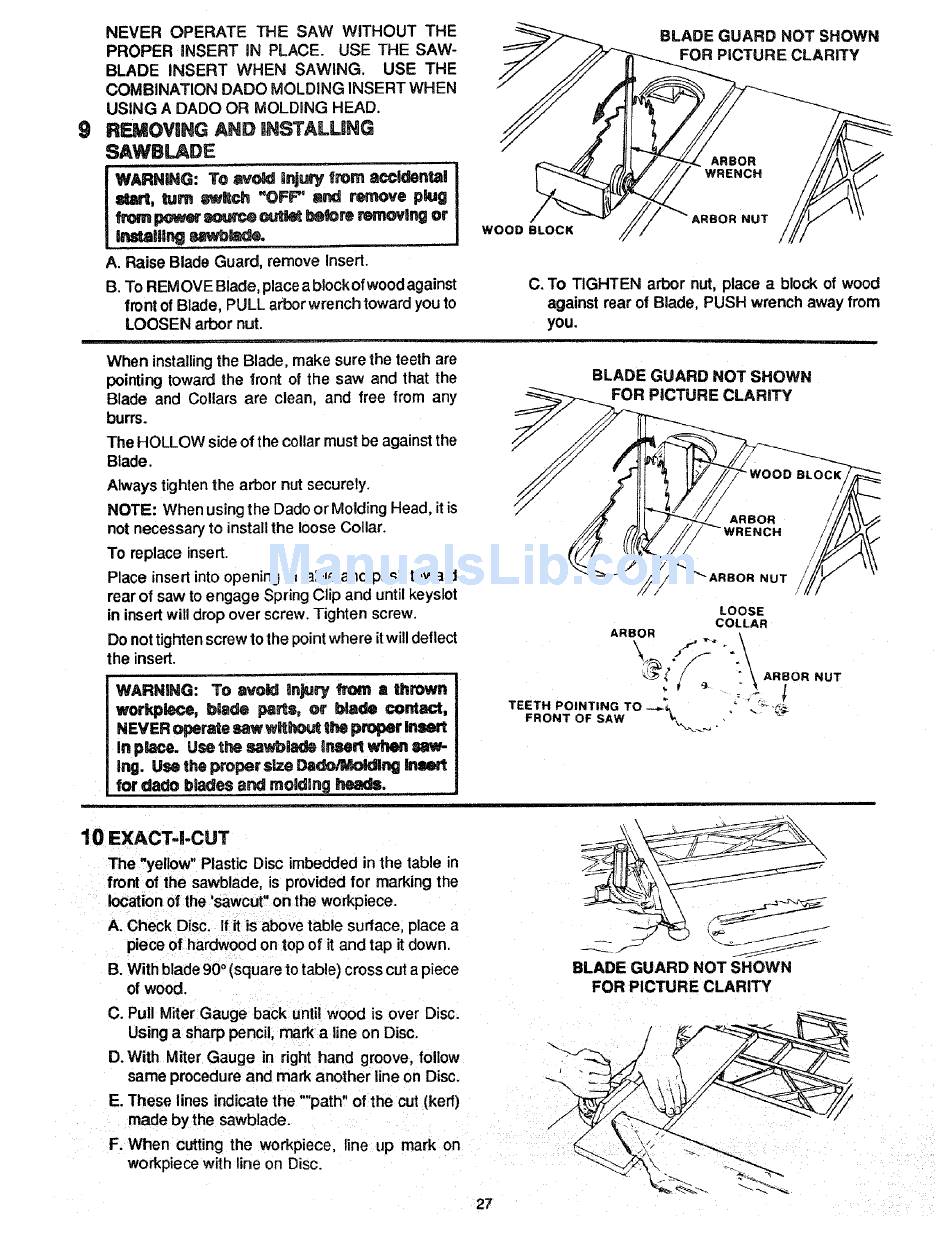

REMOVIHG AND INSTALLING
SAWBLADE
WARNING: To _wv_d injury from accldentaI
start, _m _Rch "OFF" and remove plug
_om pawmr_ ouUst _m removing or
Installing _.
A. Raise Blade Guard, remove Insert.
B. To REMOVE Blade, place a block of wood against
front of Blade, PULL arbor wrench toward you to
LOOSEN arbor nut.
BLADE GUARD NOT SHOWN
FOR PICTURE CLARITY
WOOD BLOCK
C. To TIGHTEN arbor nut, place a block of wood
against rear of Blade, PUSH wrench away from
you.
When installing the Blade, make sure the teeth are
pointing toward the front of the saw and that the
Blade and Collars are clean, and free from any
burrs.
The HOLLOW side of the collar must be against the
Blade.
Always tighten the arbor nut securely.
NOTE: When using the Dado or Molding Head, it is
not necessary to install the loose Collar.
To replace insert.
Place insert into opening in table and push toward
rear of saw to engage Spring Clip and until keyslot
in insert will drop over screw. Tighten screw.
Do not tighten screw to the point where it will deflect
the insert.
WARNING: To avoid injury from a thrown
workplece, blade parts, or b_ade contact,
NEVER operate saw withou_ the proper insert
In place. Use the sa_ie Ir_sert when =aw-
ing. Use the proper size Dado/Moldlng
for dado blades and molding heads.
BLADE GUARD NOT SHOWN
PICTURE CLARITY
OR NUT
LOOSE
COLLAR
ARBOR
ARBOR NUT
TEETH POINTING TO -.._. . ... _-_
FRONT OF SAW ,,%. _.
10 EXACT-I-CUT
The "yellow" Plastic Disc imbedded in the table in
front of the sawblade, is provided for marking the
location of the 'sawcut" on the workpiece.
A. Check Disc. If it is above table surface, place a
piece of hardwood on top of it and tap it down.
B. With blade 90 ° (square to table) cross cut a piece
of wood.
C. Pull Miter Gauge back until wood is over Disc.
Using a sharp pencil, mark a line on Disc.
D. With Miter Gauge in right hand groove, follow
same procedure and mark another line on Disc.
E. These lines indicate the "'path" of the cut (kerr)
made by the sawblade.
F. When cutting the workpiece, line up mark on
workpiece with line on Disc.
BLADE GUARD NOT SHOWN
FOR PICTURE CLARITY
