Basic And Expanded Configurations; Fully Configured Xp10000 Rack Assembly - HP StorageWorks XP10000 - Disk Array Manual

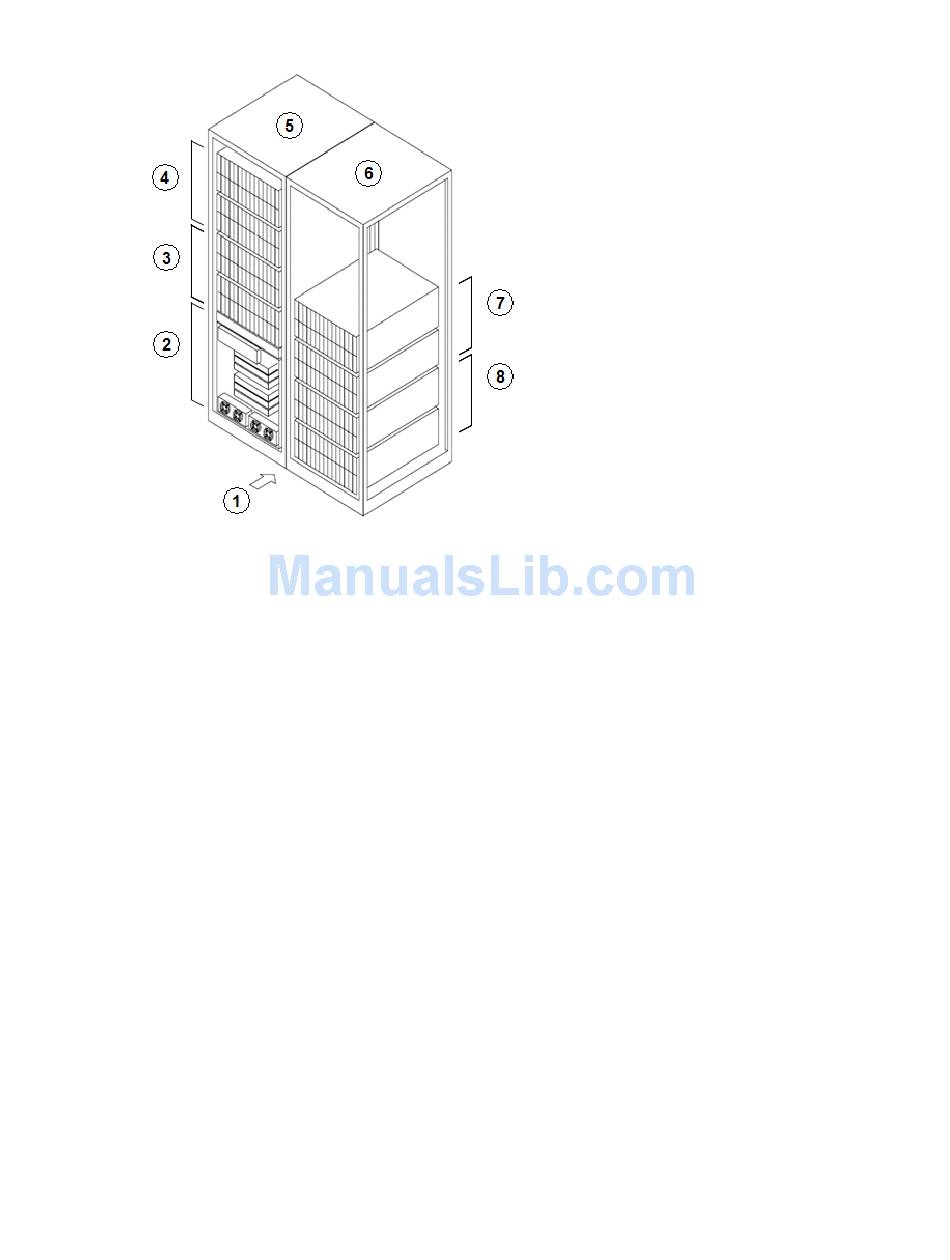

1. Front view of open XP10000 racks
3. R0 disk chassis, containing up to 60 drives
5. Primary rack
7. R2 disk chassis, containing up to 60 drives
Figure 1 Fully configured XP10000 rack assembly

Basic and expanded configurations

The basic XP10000 configuration consists of one 19-inch rack containing the following:
• One disk controller with control panel and SVP blade PC
• One 60-disk chassis
• Mix board with disk adapters and host ports
• Power supplies, power distribution units (PDUs), backup batteries, power cords, and cabling
The XP10000 disk array without a disk chassis is also available.
18 Site requirements for the XP10000 disk array
2. Controller with power supplies, control panel,
modules, and SVP
4. R1 disk chassis, containing up to 60 drives
6. Second rack
8. R3 disk chassis, containing up to 60 drives
