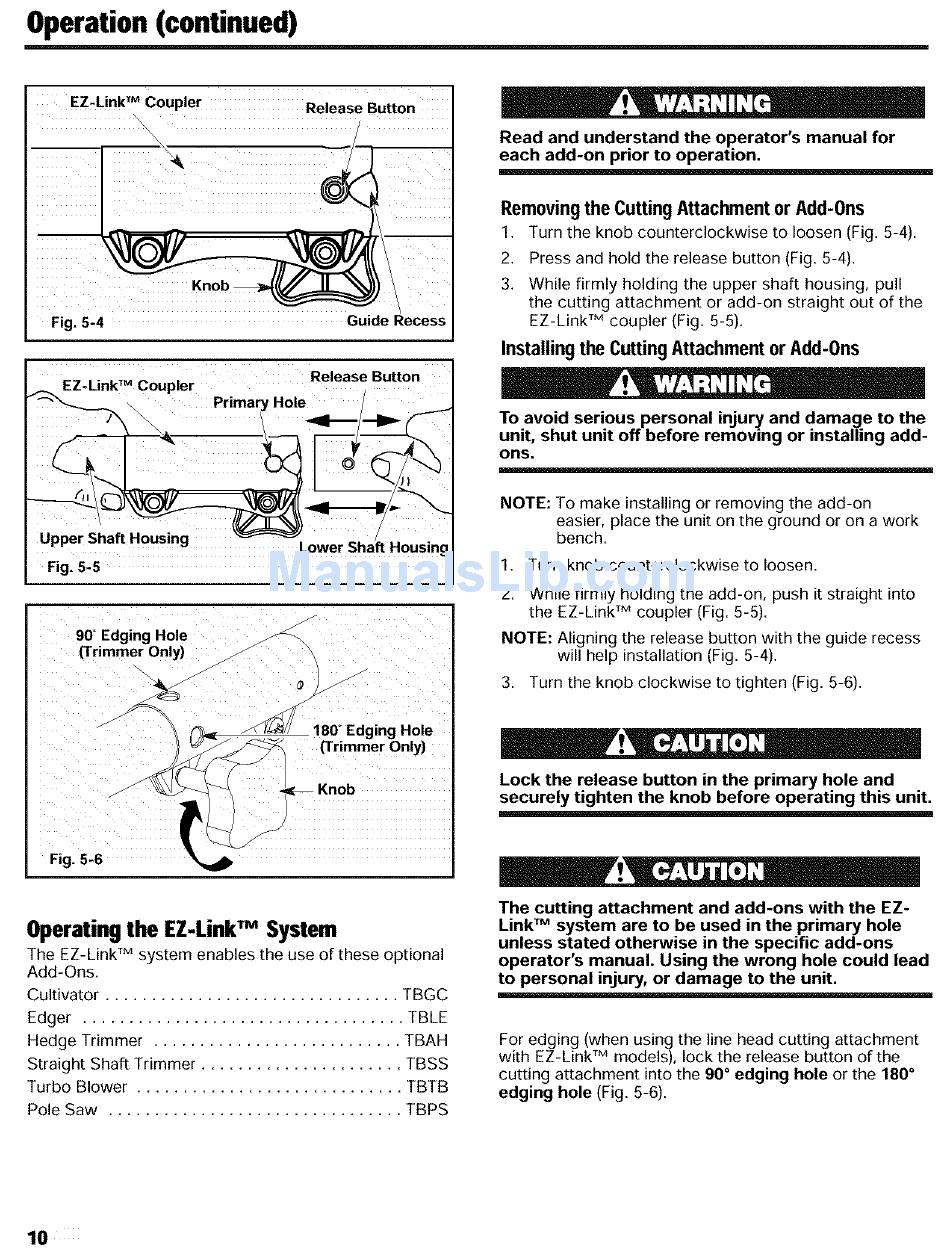

Operation(continued)
EZ-LinkT M coupler
Release Button
Fig. 5-4
Guide Recess
Ez.LinkTMc0uPier
Release Button
,
/
Upper Shaft Housing
........
Lower _na_ Housm!
Fig. 5-5
90 _Edging Hole
(Trimmer Only)
Fig. 5-6
L
180° Edging Hole
(Trimmer Only)
Knob
Operating the EZ-Link
TM
System
The EZ-Link
TM
system enables the use of these optional
Add-Ons.
Cultivator
................................
TBGC
Edger ...................................
TBLE
Hedge Trimmer
...........................
TBAH
Straight Shaft Trimmer ......................
TBSS
Turbo Blower .............................
TBTB
Pole Saw ................................
TBPS
!
''L
Read and understand
the operator's
manual for
each add-on prior to operation.
Removingthe Cutting Attachment or Add-0ns
1. Turn the knob counterclockwise
to loosen (Fig. 5-4).
2.
Press and hold the release button (Fig. 5-4).
3. While firmly holding the upper shaft housing, pull
the cutting attachment
or add-on straight out of the
EZ-Link
TM
coupler (Fig. 5-5).
Installing the Cutting Attachment or Add-0ns
!
To avoid serious personal
injury and damage to the
unit, shut unit off before removing
or installing add-
ons.
NOTE: To make installing or removing the add-on
easier, place the unit on the ground or on a work
bench.
1. Turn knob counterclockwise
to loosen.
2.
While firmly holding the add-on, push it straight into
the EZ-Link
TM
coupler (Fig. 5-5).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 5-4).
3.
Turn the knob clockwise to tighten (Fig. 5-6).
_l!llr!
,
o
Lock the release button in the primary hole and
securely tighten the knob before operating this unit.
!
,
The cutting attachment
and add-ons with the EZ-
Link
TM
system are to be used in the primary hole
unless stated otherwise
in the specific add-ons
operator's
manual. Using the wrong hole could lead
to personal
injury, or damage to the unit.
For edging (when using the line head cutting attachment
with EZ-Link
TM
models), lock the release button of the
cutting attachment
into the 90 ° edging hole or the 180 °
edging hole (Fig. 5-6).
10
