Sharp CD-XP350W Operation Manual

Hide thumbs Also See for CD-XP350W:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
MINI COMPONENT SYSTEM
MODEL
CD-XP350W

OPERATION MANUAL

CDXP350WA_FRONT
1
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.

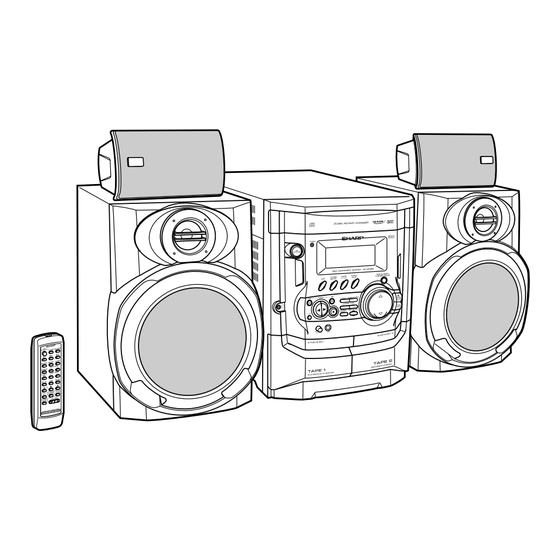

CD-XP350W Mini Component System consisting of CD-XP350W (main
unit), CP-XP350 (front speaker) and GBOXS0094AWM1 (surround
speaker).
02.1.25, 9:04 AM

Advertisement

Table of Contents
loading

Related Manuals for Sharp CD-XP350W

Summary of Contents for Sharp CD-XP350W

  • Page 1: Operation Manual

    To obtain the best performance from this product, please read this MINI COMPONENT SYSTEM manual carefully. It will guide you in operating your SHARP product. CD-XP350W Mini Component System consisting of CD-XP350W (main unit), CP-XP350 (front speaker) and GBOXS0094AWM1 (surround speaker).

  • Page 2: Special Notes

    SHARP is not in a position to authorise the copying or broadcast- ing of copyright materials and nothing in this OPERATION MANUAL should be implied as giving that authority.

  • Page 3: Table Of Contents

    Accessories CD-XP350W ENGLISH Please confirm that the following accessories are included. Remote control 1 "AAA" size battery (UM-4, R03, HP-16 AM loop aerial 1 FM aerial 1 or similar) 2 Note: Only the above accessories are included. Contents Page Page General Information Tape Playback Precautions .

  • Page 4: Precautions

    SHARP will not be held responsi- ble for any damage resulting from use of this unit with a voltage other than that which is specified.

  • Page 5: Controls And Indicators

    Controls and indicators CD-XP350W ENGLISH ! Front panel Reference page 1. Disc Tray ..........14 2.

  • Page 6: Rear Panel

    Controls and indicators (continued) CD-XP350W ENGLISH Display 1. CD Pause Indicator 2. Extra Bass Indicator 4 5 6 7 3. Disc Number Indicators 4. Tape 2 Record Indicator 5. FM Stereo Mode Indicator 6. FM Stereo Receiving Indicator 7. Timer Play Indicator 8.
  • Page 7 CD-XP350W ENGLISH Front speaker Placing the speaker system To enjoy the surround effect, we recommend that you place each speaker as shown to the below. Main unit Front Front speaker speaker (Left) (Right) Surround Surround speaker speaker (Right) (Left) 1. Tweeter Installation of the surround speakers: 2.
  • Page 8 Controls and indicators (continued) CD-XP350W ENGLISH Remote control Reference page 1. Remote Control Transmitter ....... .11 2.

  • Page 9: System Connections

    System connections CD-XP350W ENGLISH Aerial connection AM loop aerial Supplied FM aerial: Surround speaker Surround speaker Connect the FM aerial wire to the FM 75 (Right) (Left) FM aerial OHMS terminal and position the FM aerial wire in the direction where the strongest signal can be received.

  • Page 10: Speaker Connection

    System connections (continued) CD-XP350W ENGLISH Speaker connection To mount the surround speakers on the wall Front speakers Connect the black wire to the FRONT (-) terminal, and the red wire to the FRONT (+) The design of the surround speakers allows them to be hung on the wall. Be sure to terminal.
  • Page 11 CD-XP350W ENGLISH Setting the AC voltage selector Setting the FM/AM span selector Check the setting of the AC voltage selector located on the rear panel before plug- ging the unit into a wall socket. If necessary, adjust the selector to correspond to the AC power voltage used in your area.

  • Page 12: General Control

    General control Remote control CD-XP350W ENGLISH Battery installation 1 Open the battery cover. 2 Insert the batteries according to the direction indicated in the bat- tery compartment. When inserting or removing the batteries, push them towards the battery terminals. 3 Close the battery cover. Precautions for battery use: Replace all old batteries with new ones at the same time.

  • Page 13: Sound Control

    Sound control CD-XP350W ENGLISH Extra bass (X-BASS)/Pre-programmed equaliser (Main unit operation) You can select the extra bass and pre-programmed equaliser modes with the same button on the main unit. Changing the mode: When the EQUALIZER/X-BASS/DEMO button is pressed, the current mode setting will be displayed.

  • Page 14: Setting The Clock

    Setting the clock CD-XP350W ENGLISH Press the TUNING/TIME ( or ) button to adjust the hour and then press the MEMORY/SET button. Press the TUNING/TIME ( ) button once to advance the time by 1 hour. Hold it down to advance continuously. When the 12-hour display is selected, "AM"...

  • Page 15: Listening To A Cd (Cds)

    Listening to a CD (CDs) CD-XP350W ENGLISH This system can also play audio CD-R and CD-RW discs, but cannot record. Press the OPEN/CLOSE button to close the disc tray. Some audio CD-R and CD-RW discs may not be playable due to the state of disc or the device that was used for recording.

  • Page 16: Listening To A Cd (Cds)

    Listening to a CD (CDs) (continued) CD-XP350W ENGLISH To locate the beginning of a track Starting playback with a desired track You can play a disc starting with the desired track. To move to the beginning of the next track: Whilst in the stop mode, press one of the 3 buttons on the Press the...

  • Page 17: Repeat Play

    CD-XP350W ENGLISH Repeat play Programmed play All tracks on up to 3 discs, or a programmed sequence can be continuously You can choose up to 32 selections for playback in the order you like. repeated. Selected disc number Whilst in the stop mode, press one To repeat all tracks on up to 3 discs: of the 3 buttons on the remote...

  • Page 18: Tuning

    Listening to the radio CD-XP350W ENGLISH Tuning Press the ON/STAND-BY button to turn the power on. Press the TUNER (BAND) button repeatedly to select the desired frequency band (FM or AM). Press the TUNING/TIME ( ) button to tune in to the desired station.

  • Page 19: Memorising A Station

    CD-XP350W ENGLISH Memorising a station To recall a memorised station You can store 40 AM and FM stations in memory and recall them at the push of a Press the PRESET ( or ) button for less than 0.5 seconds to select button.

  • Page 20: Listening To A Cassette Tape (Tape 1)

    Listening to a cassette tape (TAPE 1) CD-XP350W ENGLISH Before playback: Press the ON/STAND-BY button to turn the power on. For playback, use normal or low-noise tapes for the best sound. (Metal or CrO tapes are not recommended.) Press the TAPE (1 2) button to select TAPE 1.

  • Page 21: Listening To A Cassette Tape (Tape 2)

    Listening to a cassette tape (TAPE 2) CD-XP350W ENGLISH Open the cassette door by pushing the area marked " PUSH EJECT". Load a cassette into the TAPE 2 cas- sette compartment with side A facing you. Press the button to choose one side or both sides.

  • Page 22: Playing Karaoke

    Playing karaoke CD-XP350W ENGLISH You can enjoy karaoke to CDs, radio, cassettes, and other external devices by con- Set the MIC LEVEL control to MIN to protect the speakers from necting a separately available microphone to this unit. shock noise and to avoid disturbing noises. Connect the microphone to the MIC socket.
  • Page 23 CD-XP350W ENGLISH Notes: The initial audio mode setting is "STEREO". In any mode other than the STEREO mode, " " will appear. The setting will remain unchanged when you change the disc, you set the unit to the stand-by mode or the function is changed from the CD to another function. When playing a sound multiplexed disc on which a vocal and music have been separately recorded, select the audio mode as desired.

  • Page 24: Recording From A Cd (Cds)

    When recording important selections, make a preliminary test to ensure that the Recording from a CD (CDs) desired material is properly recorded. SHARP is not liable for damage or loss of your recording arising from malfunction You can record 3 CDs continuously. of this unit.

  • Page 25: Recording From The Radio

    CD-XP350W ENGLISH Recording from the radio Dubbing from tape to tape You can record from TAPE 1 to TAPE 2. Tune in to the desired station. (See page 17.) Press the ON/STAND-BY button to turn the power on. Load a cassette into the TAPE 2 cassette compartment with side A Load a prerecorded cassette into the TAPE 1 cassette compart- facing you.

  • Page 26: Timer And Sleep Operation

    Timer and sleep operation CD-XP350W ENGLISH Timer playback or timer recording Timer playback: The unit turns on and plays the desired source (CD, tuner, tape) at the preset time. Before setting timer: Timer recording: 1 Press the CLOCK button to check that the clock is on time. The unit turns on and starts recording from the tuner at the preset time.

  • Page 27: Sleep Operation

    CD-XP350W ENGLISH Sleep operation Press the TUNING/TIME ( ) button to specify the minutes, then press the MEMORY/SET button. Play back the desired sound source. Press the TIMER/SLEEP button repeatedly until "SLEEP" is dis- played. The unit will enter the timer stand-by mode automatically. To change the sleep time: Whilst the sleep time is displayed, press the TUNING/TIME ( ) button.

  • Page 28: Enhancing Your System

    Enhancing your system CD-XP350W ENGLISH Listening to the playback sounds from The connection lead is not included. Purchase a commercially available lead as shown below. VCR, DVD, etc. VCR, DVD, etc. Use a connection lead to connect the VCR, DVD, etc. to the VIDEO/ AUX sockets.

  • Page 29: Troubleshooting Chart

    Many potential problems can be resolved by the owner without calling a service tech- nician. If something is wrong with this product, check the following before calling your autho- Symptom Possible cause rised SHARP dealer or service centre. Cannot record. Is the erase-prevention tab removed? General Cannot record tracks with proper Is it a normal tape? (You cannot record on sound quality.

  • Page 30: Maintenance

    Maintenance Troubleshooting chart (continued) CD-XP350W ENGLISH Cleaning the tape-handling parts If trouble occurs Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean When this product is subjected to strong external interference (mechanical shock, these parts with a cotton swab moistened with commercial head/pinch roller excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is cleaner or isopropyl alcohol.

  • Page 31: Specifications

    CD-XP350W ENGLISH ! Tuner As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. Frequency range FM: 88 - 108 MHz There may be some deviations from these values in individual units.
  • Page 32 SHARP CORPORATION 9906 TINSZ0832AWZZ B0202.HK 02/1/24 CD-XP350W(A)_BACK.fm...
